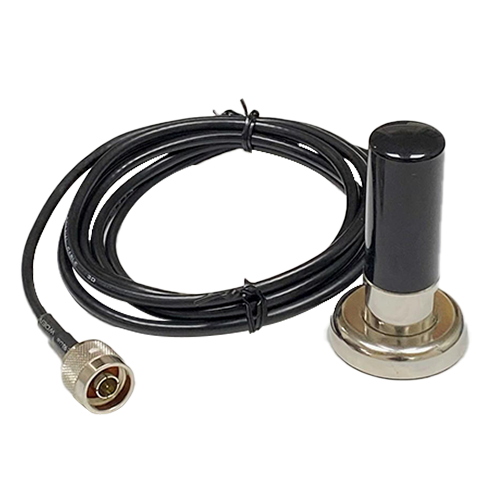

UHF / RFID & LORA Passive Antenna MA-824
  • Product Description
  • Product Specification

1.Electrica Properties

Parameter Description

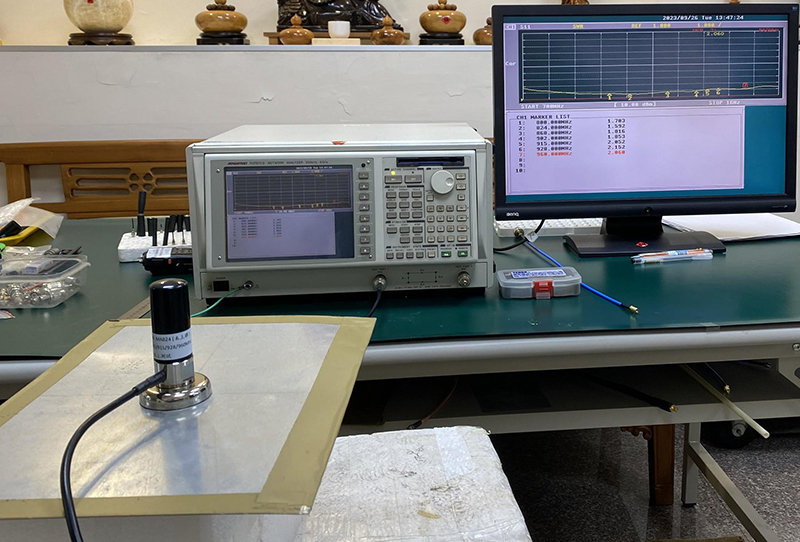

Frequency Band 800~960Mhz ON 240x320mm GND Test
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

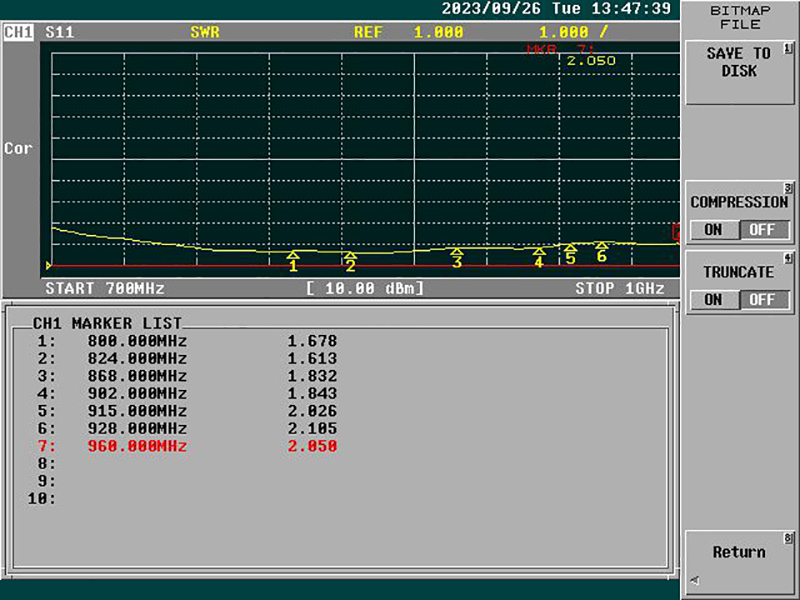

Return Loss Please See Data-1
V.S.W.R 2.5:1
Antenna Peak Gain 2.5 dBi

2. Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type SUS430 Magnet Base mounting
Connector Type SMA(M) or TNC(M) or N(M) or other
Antenna Dimensions 55.0 mm ± 3 (without Magnet base mounting)
Antenna Cable Total Length CFD200-2000 mm ± 30 or other
Antenna Color Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C
Waterproof IPX7





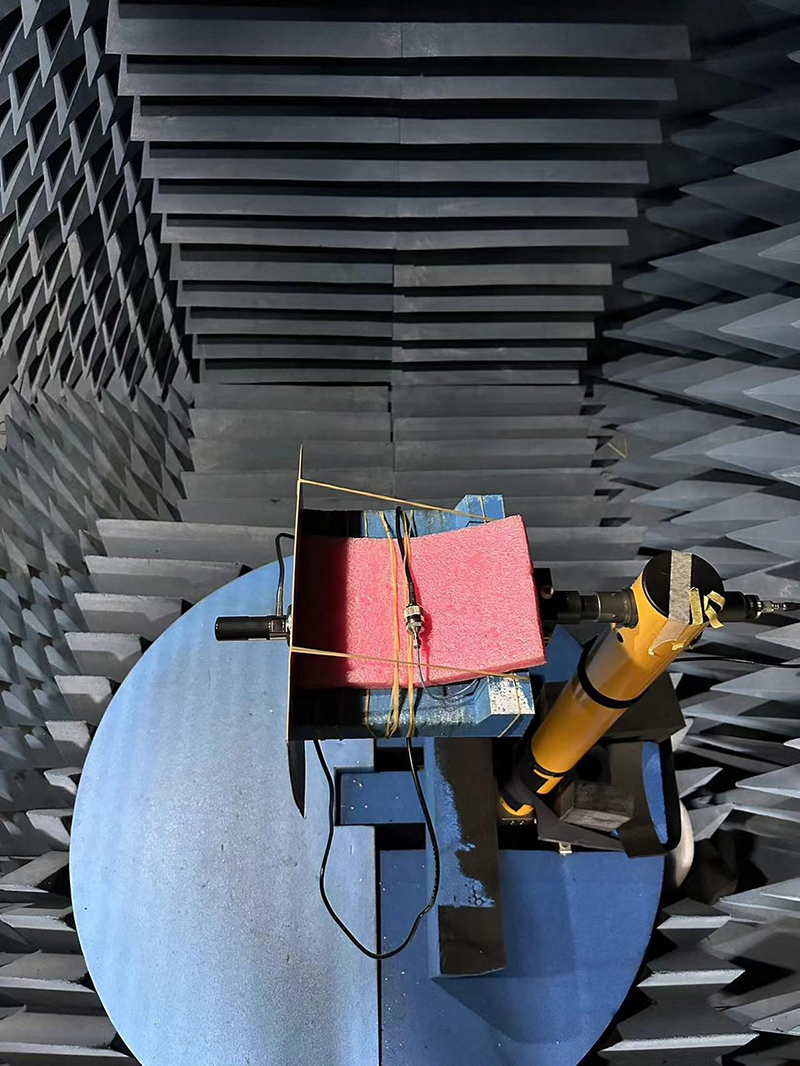

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
800 MHz -5.18 -8.30 -3.46 45.12 1.95 -3.46
824 MHz -4.53 -8.03 -2.92 51.00 2.83 -2.92
868 MHz -4.58 -7.89 -2.92 51.11 2.49 -2.92
902 MHz -4.06 -7.84 -2.54 55.71 2.88 -2.54
915 MHz -4.16 -8.04 -2.67 54.10 2.53 -2.67
928 MHz -3.96 -7.93 -2.50 56.28 2.63 -2.50
960 MHz -4.23 -7.98 -2.70 53.68 2.54 -2.70

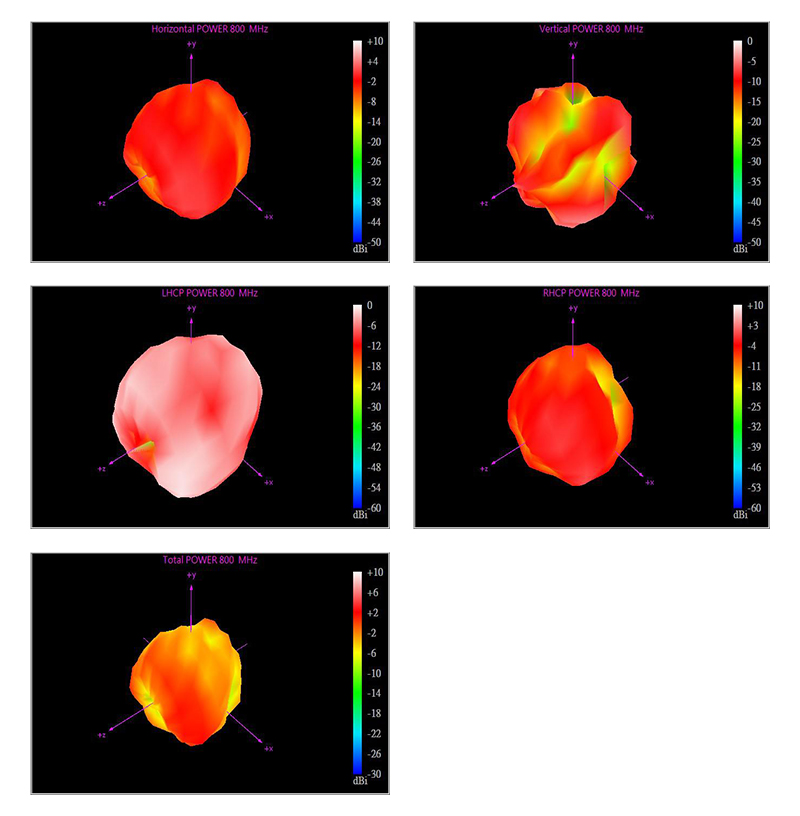

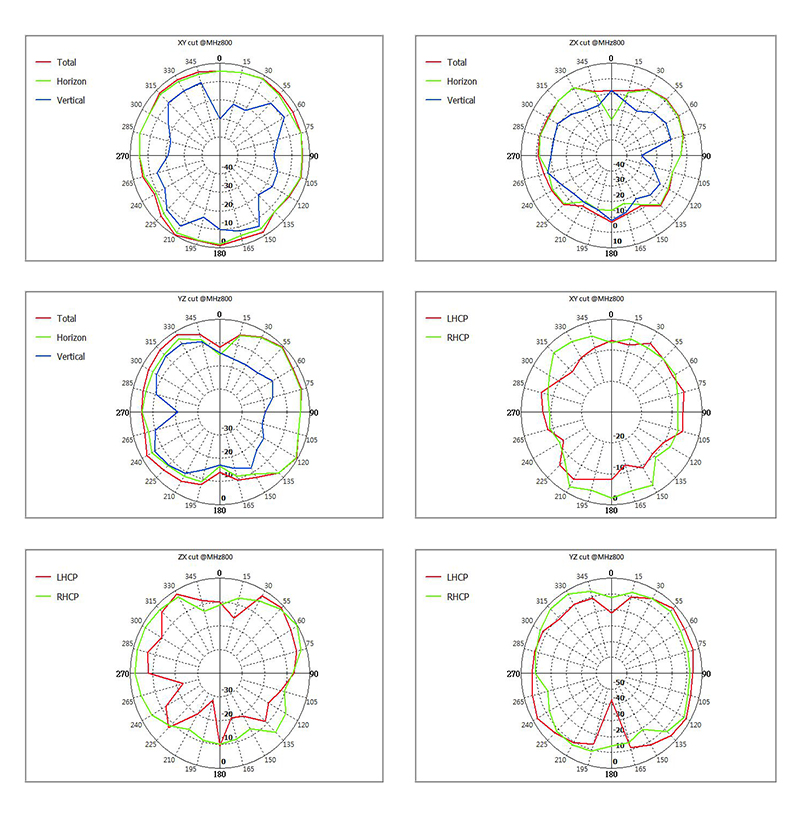

800Mhz:


824Mhz:

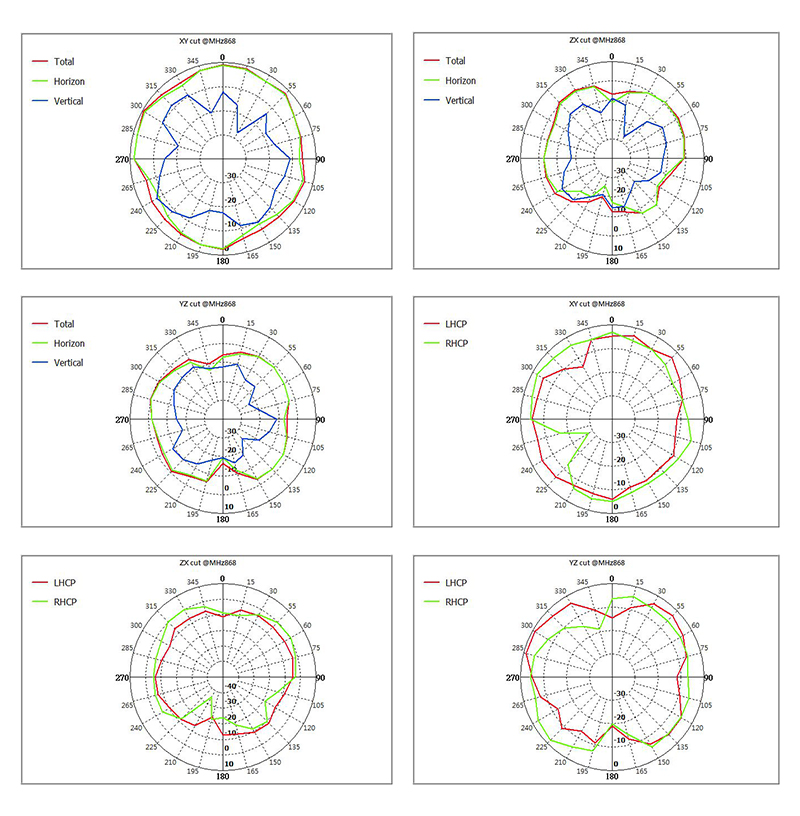

868Mhz:

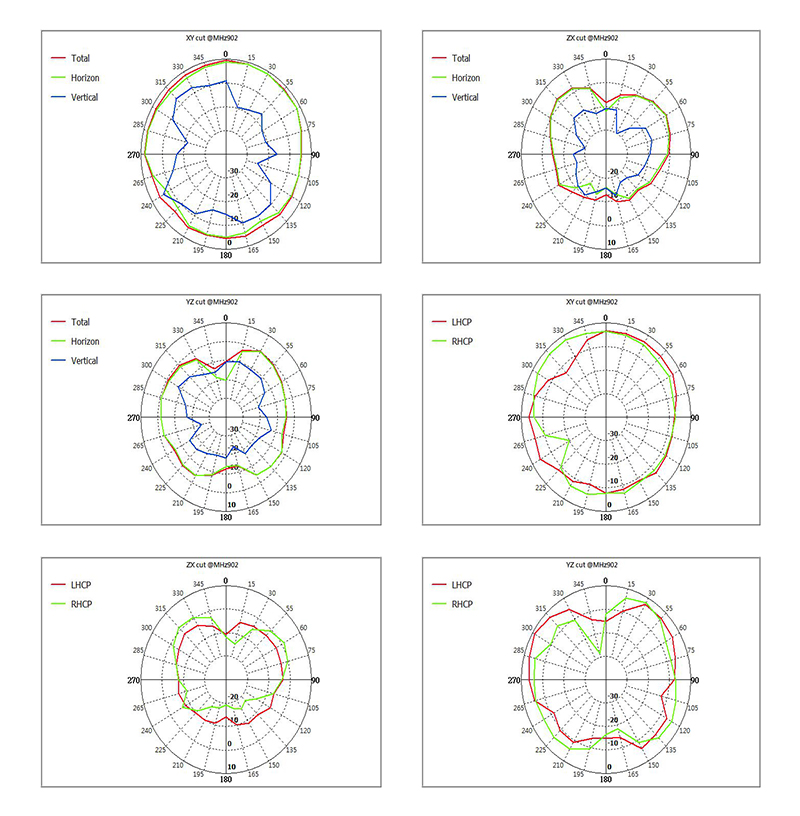

902Mhz:

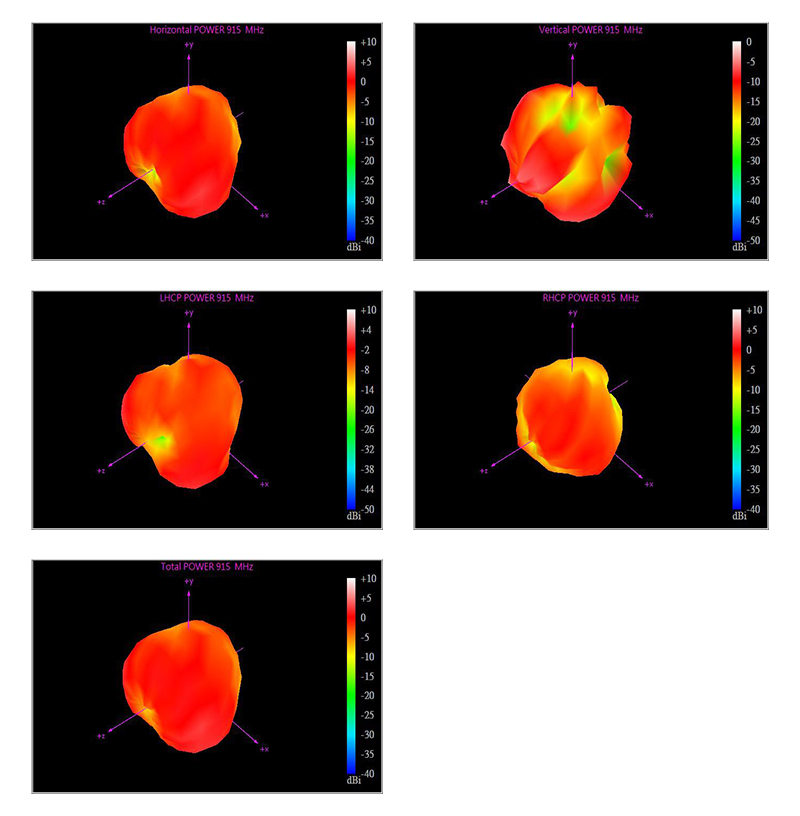

915Mhz:

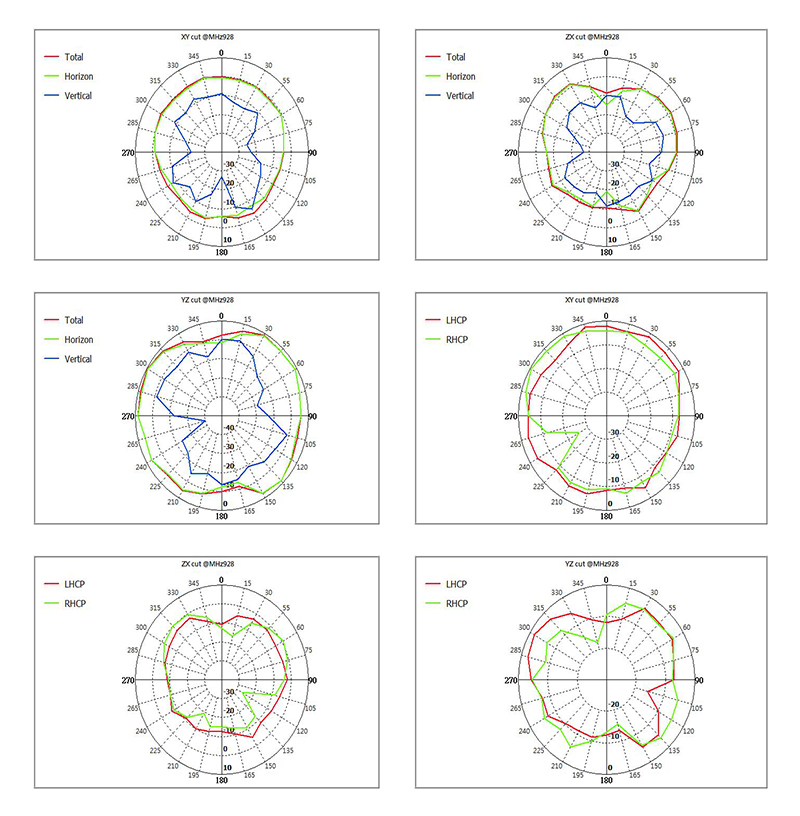

928Mhz:

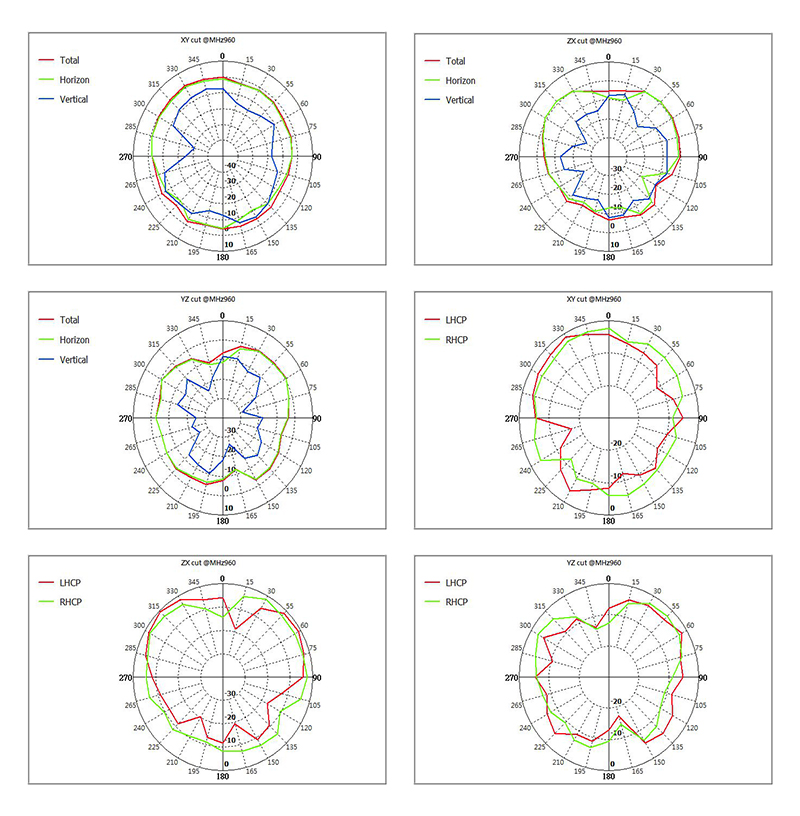

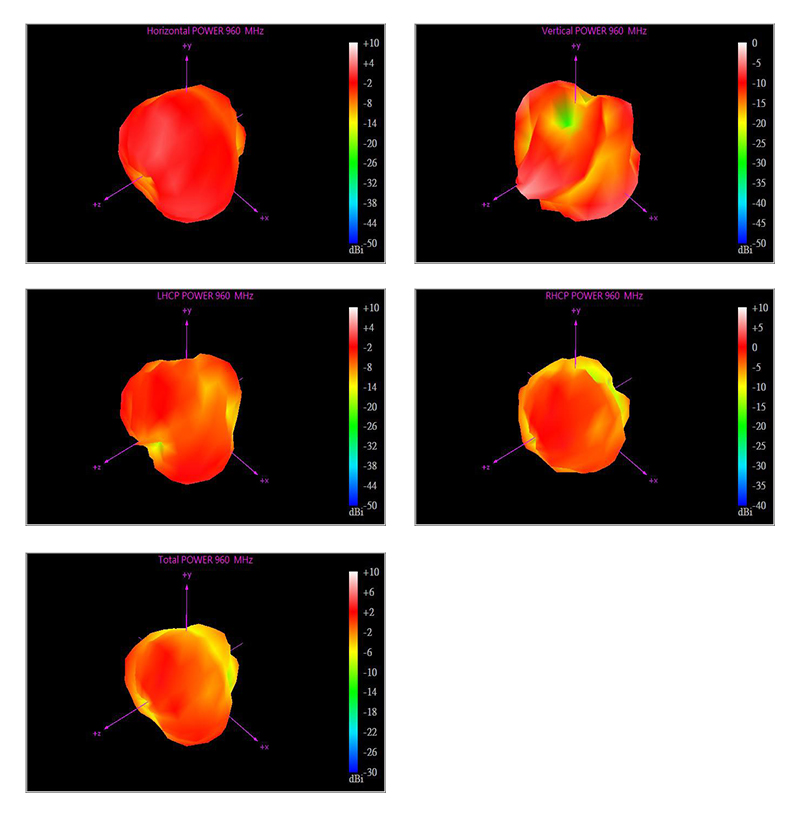

960Mhz:
