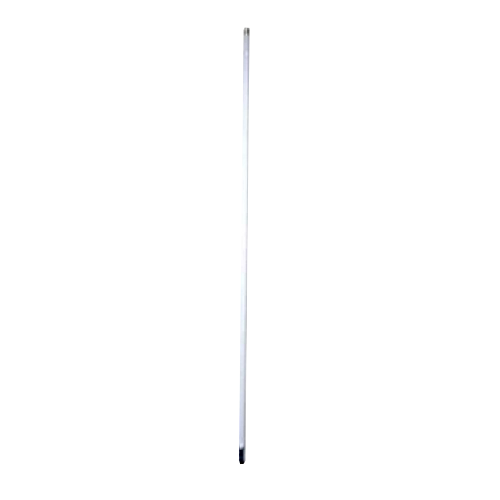

TP-915A Marine GSM Antenna
  • Specificaties

Electrical Specification

Frequency 902~928MHz
Part Number TP-915A
Polarization Linear
V.S.W.R. 2.5:1
Impedance 50 OHMS ±5Ω
Gain 8~9 dBi
Power handling 15W Max
Front to back ratio N/A
HPBW / horizontal 360°
HPBW / vertical 10°
Rated Wind 3.0 lbs. (1.4 kg)
Operating Temperature -20°C~60°C

Mechanical Specification

Connector Type N Type Male
Length Φ20 x 1340mm
Weight 250g
Radome color white
Radome material Polyvinyl chloride
