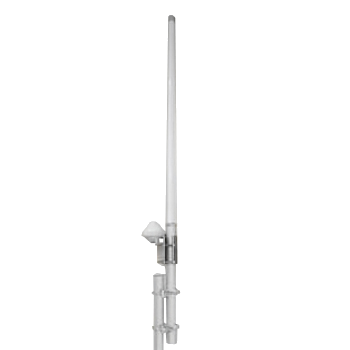

FOR Base Antenna or Marine GPS/ GLONASS /GSM System

GPS antenna Specifications: GA62G

Physical Condition
Constructions: Polycarbonate radome,detachable cable/connector for easy mount, rubber-O-ring between top radome and screw base for waterproof
Dimensions: 60mm(Dia.) x 18.5mm(H)
Weight: 65grams (w/o cable & connector).
Color: Standard in ivory white, other colours available upon request.
Mounting: Bulkhead mount with 0.8 inch threaded wing nut (standard accessory).
Cable & Connector
RF cable: TNC(M) +10 meter RG58 +BNC(M) (standard) other length (optional)
Pulling strength: 6 Kg @ 5sec. molded plastic on connector end for strain relief.
Connector TNC(F)
Antenna Element
Center Frequency: 1575Mhz & 1596-1620 MHz
Polarization: R.H.C.P. (Right Handed Circular Polarization).
Bandwidth 10 MHz min. @S11£-10 dB, 24MHz typ. @S11
Gain @ 10o Elevation: 2 dBi typical.
Axial Ratio: 3 dB max.
Output VSWR: 1.5 max
Output Impedance: 50 ohm
Low Noise Amplifier
Power Gain: 1570 Mhz : 29db typ
1620 Mhz : 16db typ
Bandwidth: 50 MHz min.
Noise Figure: 1.5 typ
Outer Band Attenuation: 20 dB min. @ Fo +/-50 Mhz.
Supply Voltages: 2.3~5.5V DC.
Current Consumption: 2.5V : 6.6mA Typ.
3V: 8.6mA Typ.
4V: 12.6mA Typ.
5V: 16.6mA Typ.
Output Impedance: 50W ohm
Overall Performance: (antenna element, LNA & coax cable)
Center Frequency: 1570 ~1620 Mhz.
Gain: At 90o vertical to sky 30 ± 4.5dBi
(cable loss) Note:1
Mounted on the 60mm x 60mm square ground plane
Noise Figure: 2.0 max.
Axial Ratio: 3 dB max.
Bandwidth: 10MHz min.
VSWR: 2.0 max.
Output Impedance: 50W ohm
Environmental
Operating Temperature: -40°C~ +85°C.
Storage Temperature: -40°C~ +90°C.
Relative Humidity: 95% non-condensing.
Water Resistance: 100% waterproof.

Marine GSM Antenna Specifications: GSM-100

Frequency range 850/900/1800/1900/2170Mhz
Gain 7~9dBi
V.S.W.R
Impedence 50 ohm
Connector N Type Female
Dimension 756mm +/-10 x OD20mm
Weight 0.76Kg
Polarization vertical
Power handling 50W
Colour white
Rated wind velocity 60m/s
Working Temperature -40~60°C
Lightning Protection Direct Ground


This specification is subject to change without prior notice Data Updated: FEB.05, 2010
