GPS Ontvangers
Interne GPS Ontvanger

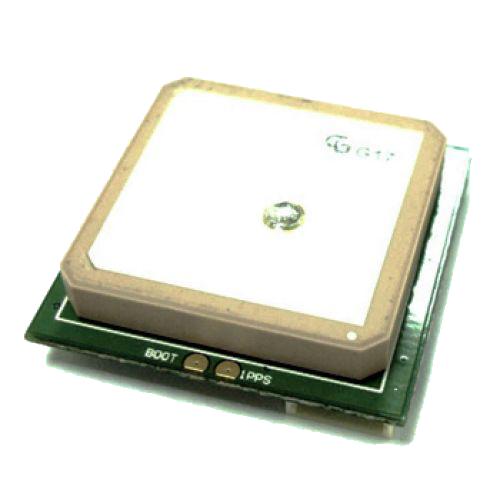

RB-2929U
RB-2929U
RB-2929U
Navraag
Downloaden
Feature
Specificaties
u-blox 6 solution
50-channel GPS
SBAS (WAAS, EGNOS, MSAS, GAGAN)
GALILEO Ready
A-GPS
UART, USB interface supported
25.0 x 25.0 x 4.0 mm patch antenna
Wire-to-board connecter
RoHS compliant
Electrical Characteristics
Chipset
u-Blox
ublox6
General
Frequency
L1 1575.42MHz GALILEO Open Service L1
Channels, C/A code
50 channels, C/A code
Accuracy
Autonomous
2.5 meters
DGPS Accuracy
SBAS
2.0 meters
Acquisition Rate
Reacquisition
< 1 sec, typical
Cold start
29 sec, typical
Warm start
29 sec, typical
Hot start
< 1 sec, typical
Sensitivity
tracking
-160dBm
Acquisition/Reacquisition
-147dBm
Dynamic Condition
Altitude
50,000 meters max.
Velocity
500 meters /sec max.
Power
Main Power
5.0 VDC +- 0.5%
Supply current
tracking
75 mA
Acquisition
95 mA
Serial Port
Electrical interface
UART
Protocols
NMEA-0183
8 data bits, no parity, 1 stop bits 9600 bps GSV,RMC,GSA,GGA,VTG
UBX (ublox proprietary)
57600 bps
Baud Rate
4800/9600/19200/115200
Environmental Characteristics
Temperature
Operating range
-40°C to + 80°C
Mechanical dimensions
L x W x H
29.0 x 29.0 x 9.5 mm
Interface
I/O connector
UART RS232 USB
Antenna
Parameter
Specification
Antenna type
Passive antenna
Pin Assignment & Definition
RB-2929U-T
RB-2929U-R
RB-2929U-T
Pin#
Name
Type
Description
Pin#
Name
Type
Description
Pin#
Name
Type
Description
1
T-TX
O
UART TX output
1
NC
O
1
U-TX
I/O
USB +
2
T-RX
I
UART RX input
2
NC
I
2
U-RX
I/O
USB -
3
NC
O
3
R-TX
O
RS232 TX
3
NC
O
4
NC
I
4
R-RX
I
RS232 RX
4
NC
I
5
VCC
PWR
DC power input 3.3 – 5V
5
VCC
PWR
DC power input 3.3 – 5V
5
VCC
PWR
DC power input 3.3 – 5V
6
GND
GND
Ground
6
GND
GND
Ground
6
GND
GND
Ground
JP1: Board connector:
CSI-1182-061R (CST Master Electronic Co., Ltd.)

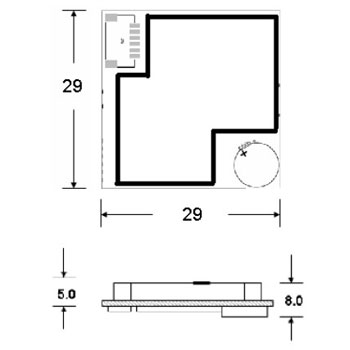

Mechanical Drawing
Output NMEA Messages
NMEA Sentence
Description
GGA (default)
Global Positioning System Fixed Data
GLL
Geographic Position - Latitude/Longitude
GSA (default)
GNSS DOP and Active Satellites
GSV (default)
GNSS Satellites in View
RMC (default)
Recommended Minimum Specific GNSS data
VTG
Course Over Ground and Ground Speed
ZDA
Time and Date
