TH-1325A-TNC(M) L & 2.4G & S Band Gooseneck Antenna
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
TH-1325A TH1325A-TNC(M)
Below is a table summarizing the antenna design specification.

1.1 Electrical Properties

Parameter Description
Frequency Band 1250~1450MHz & 2.2~2.5Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

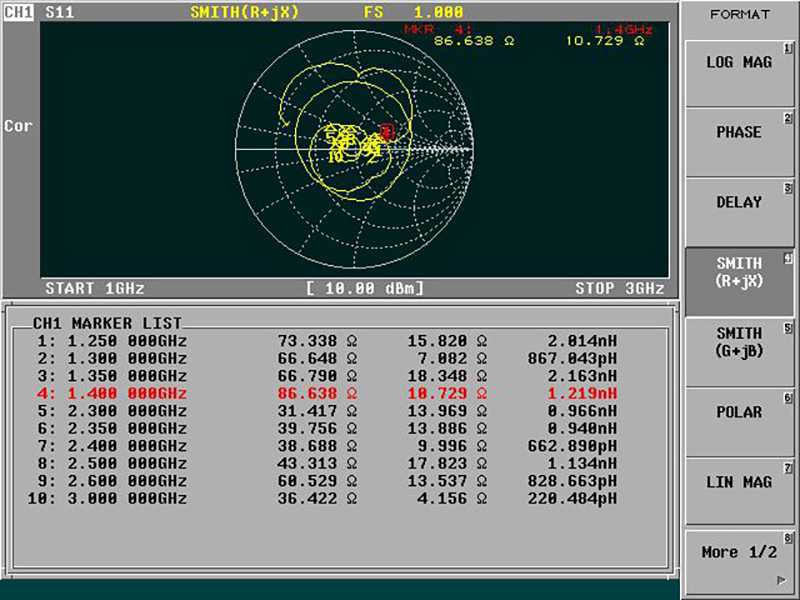

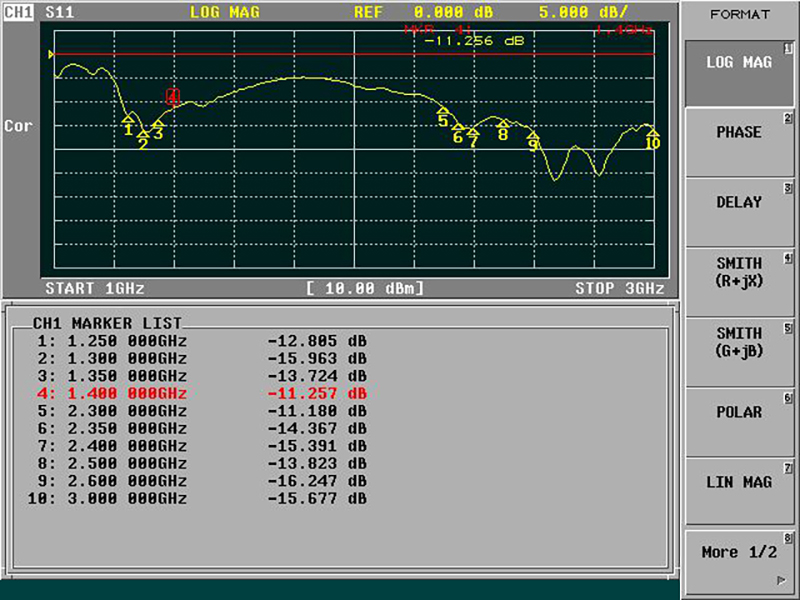

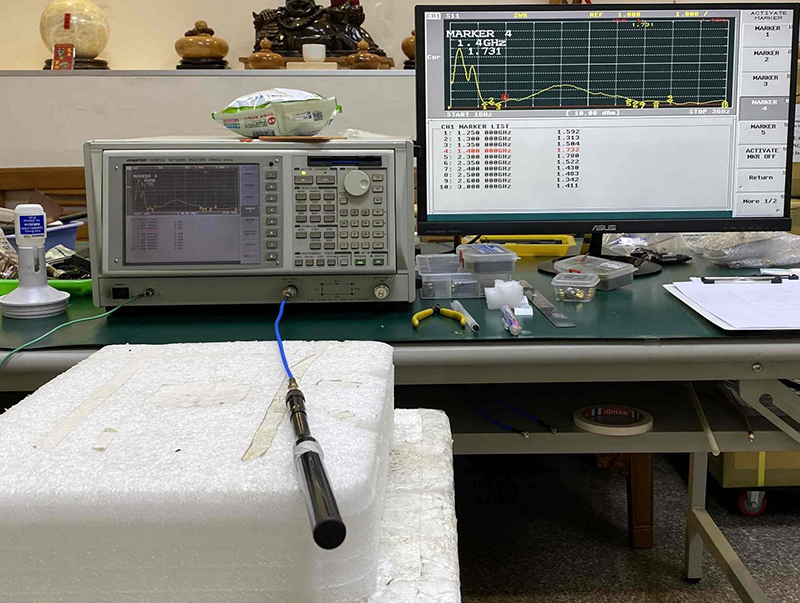

Return Loss Please See Data-1

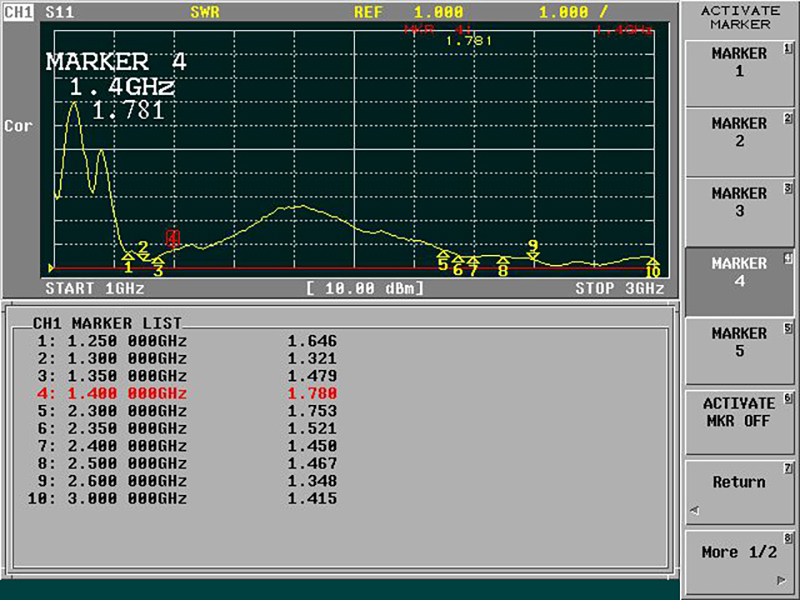

V.S.W.R 2.5：1
Peak Gain 2.5db

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type TNC(Male)
Antenna Dimensions 275mm ±15
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

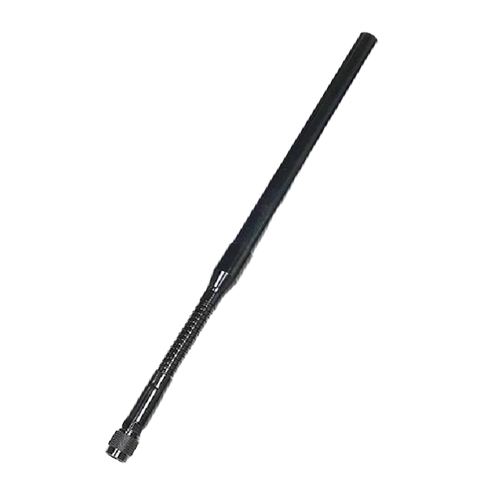

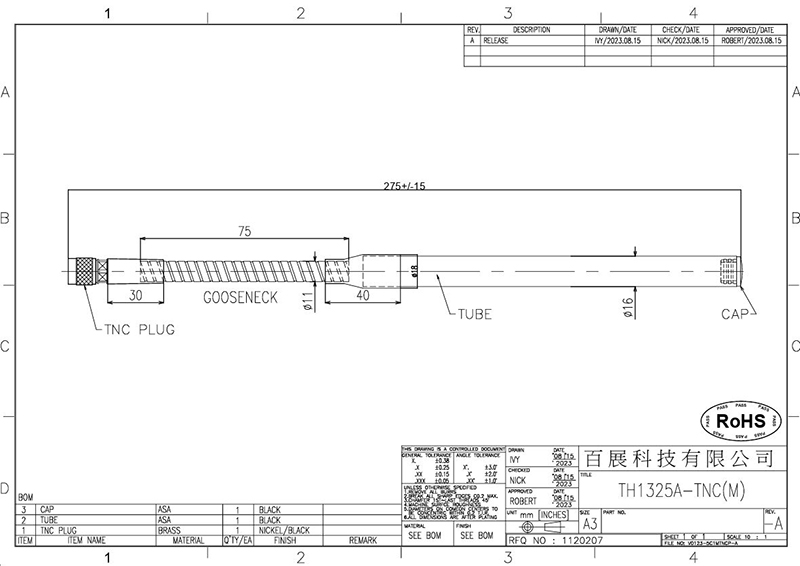

2. Appearance

3. Frequency

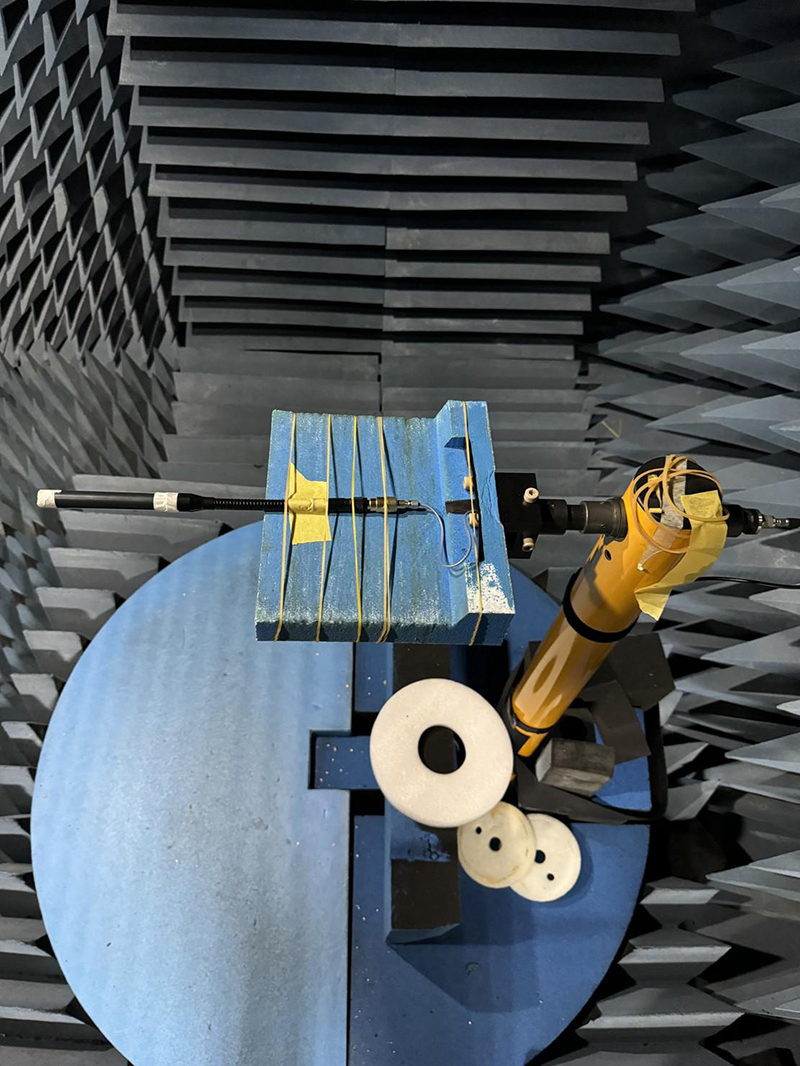

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1250 MHz -5.61 -8.39 -3.77 41.94 0.80 -3.77
1300 MHz -5.45 -8.26 -3.62 43.46 0.77 -3.62
1350 MHz -4.94 -6.71 -2.73 53.36 0.81 -2.73
1400 MHz -5.24 -6.56 -2.84 52.03 0.93 -2.84
1450 MHz -6.85 -8.11 -4.42 36.12 -0.51 -4.42
1500 MHz -5.99 -9.07 -4.25 37.59 -0.86 -4.25
2200 MHz -4.05 -9.84 -3.03 49.76 1.26 -3.03
2250 MHz -4.38 -11.63 -3.63 43.30 1.72 -3.63
2300 MHz -4.29 -12.94 -3.74 42.32 2.07 -3.74
2350 MHz -3.75 -12.59 -3.22 47.68 2.48 -3.22
2400 MHz -4.16 -11.34 -3.40 45.73 2.41 -3.40
2450 MHz -4.58 -10.01 -3.48 44.83 1.32 -3.48
2500 MHz -4.58 -8.72 -3.16 48.26 1.90 -3.16
2600 MHz -5.31 -7.58 -3.29 46.90 1.58 -3.29

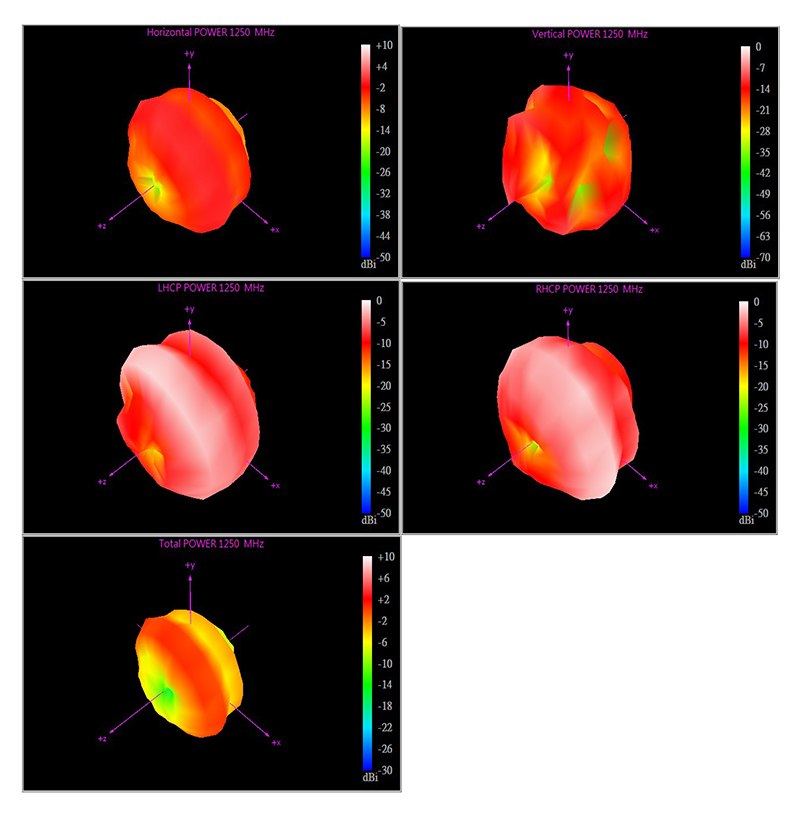

1250Mhz:

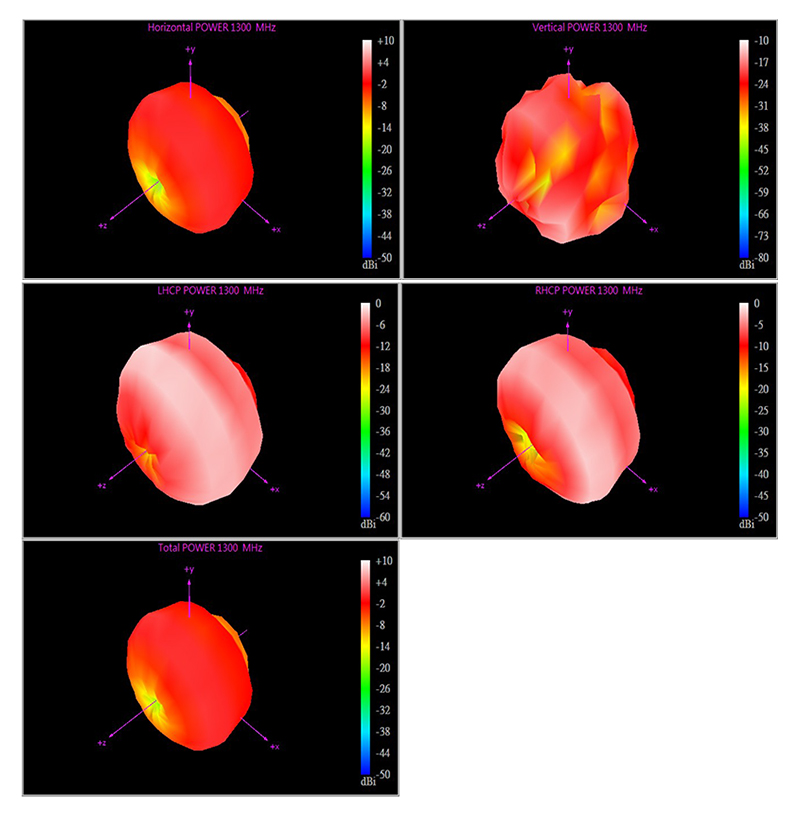

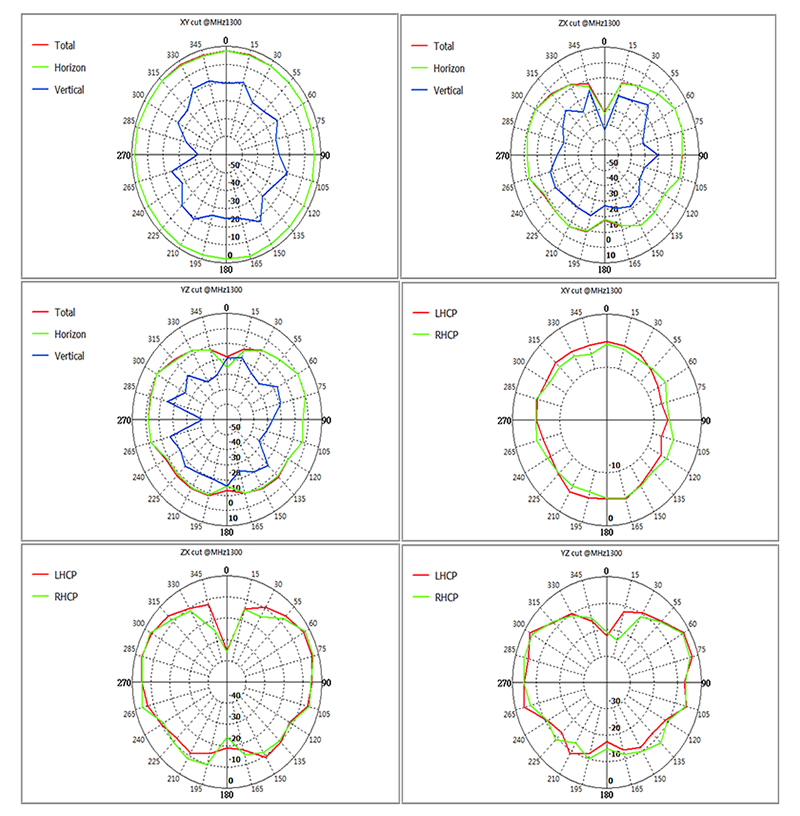

1300Mhz:

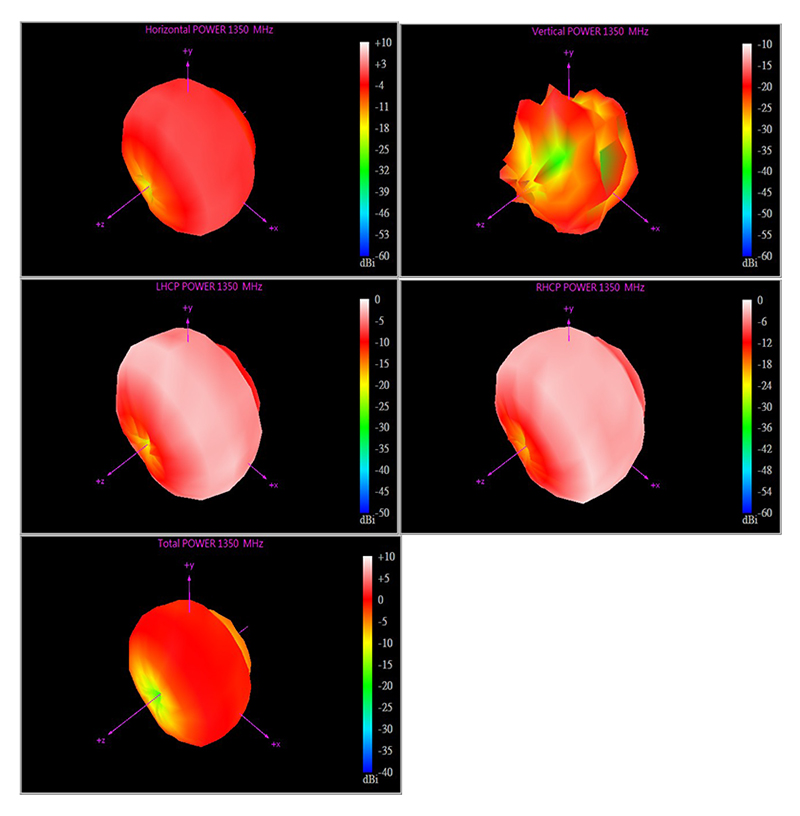

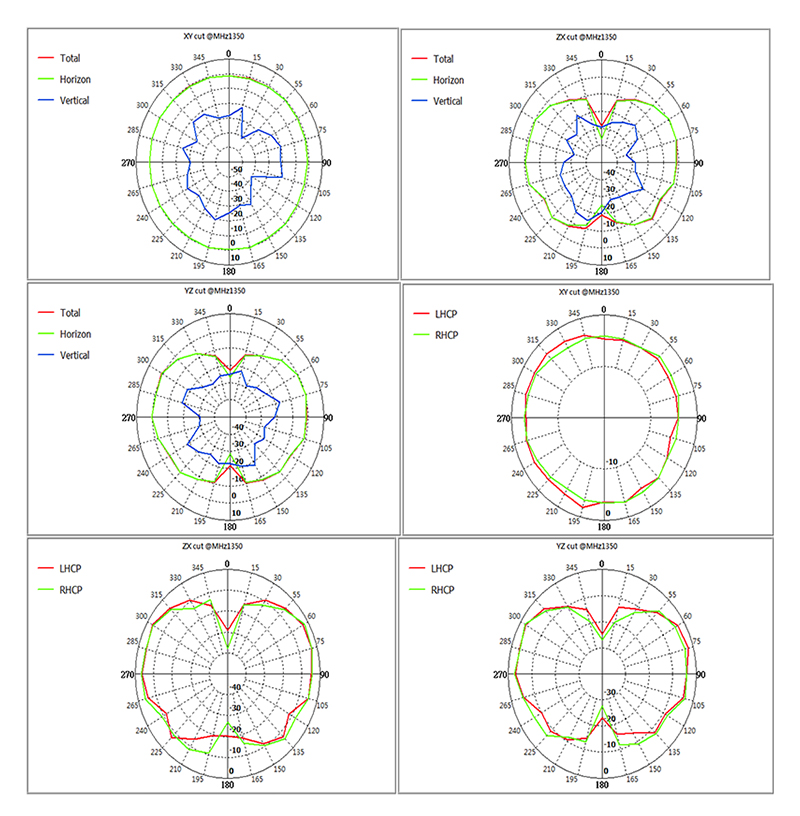

1350Mhz:

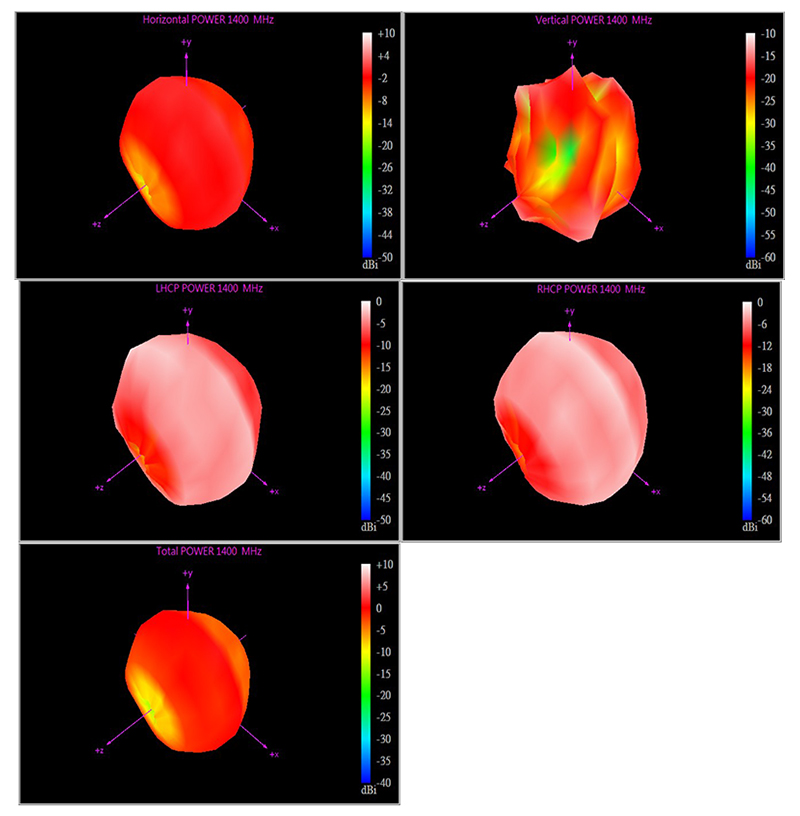

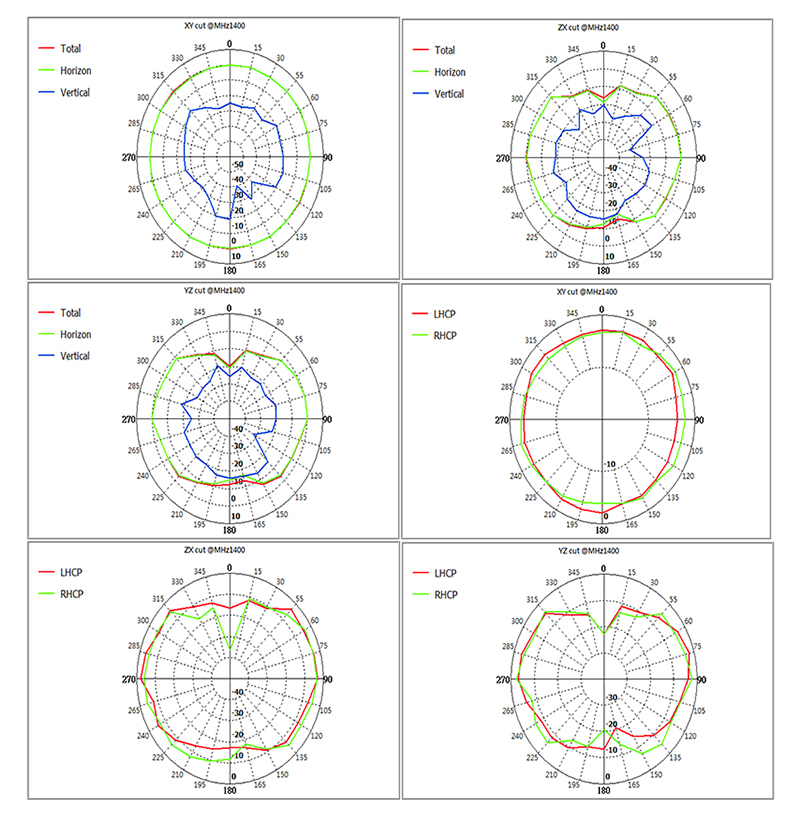

1400Mhz:

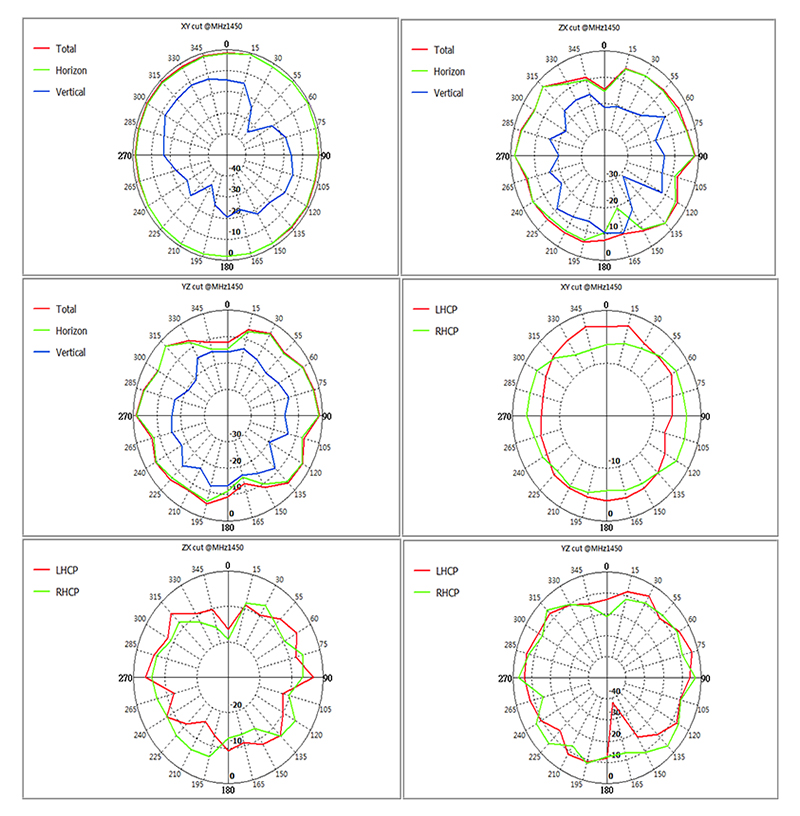

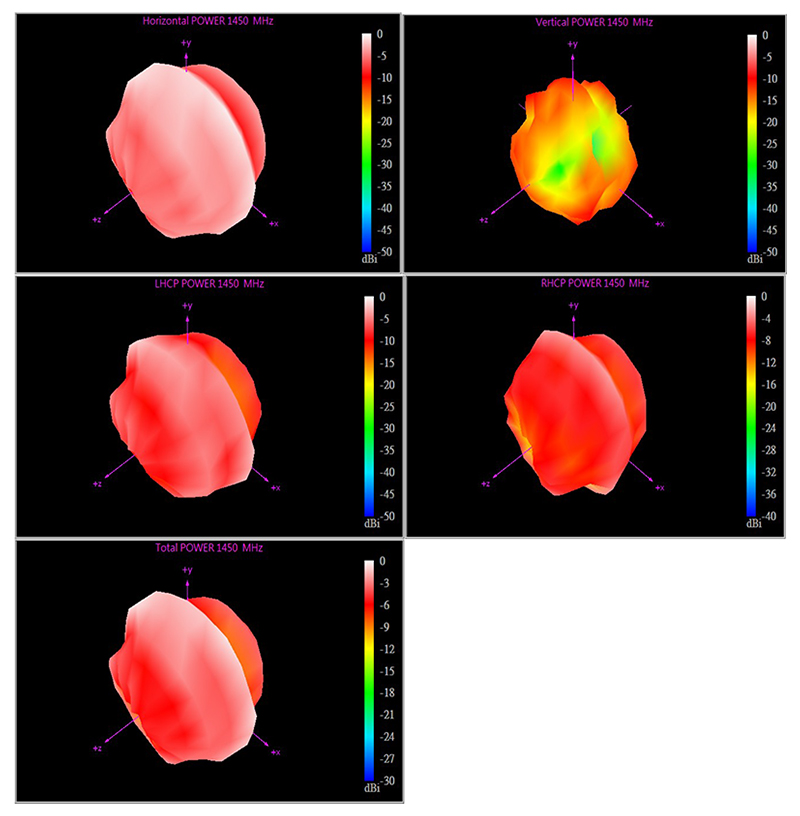

1450Mhz:

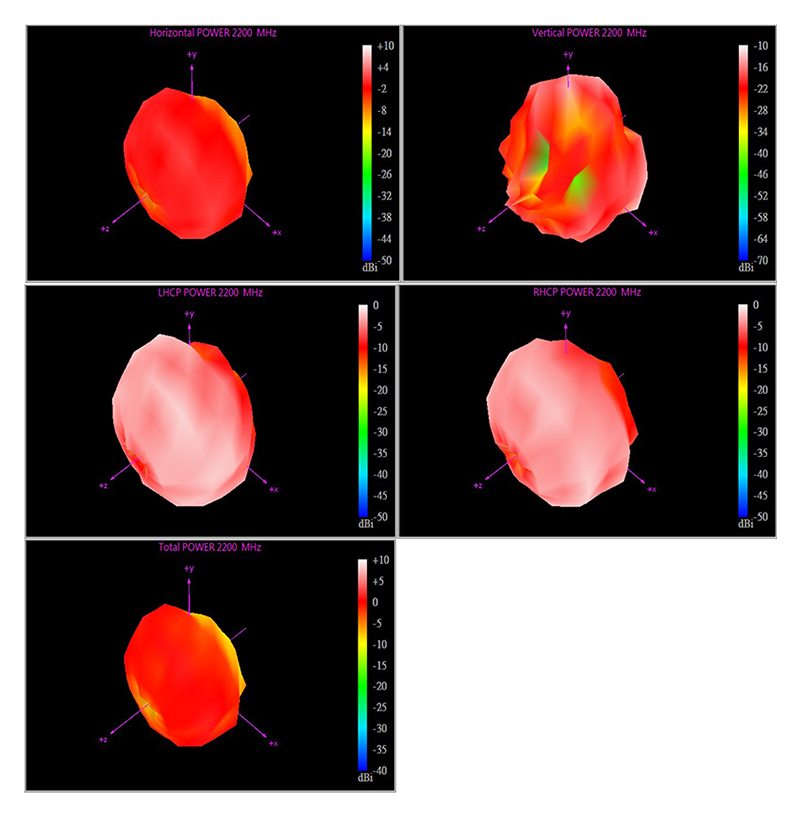

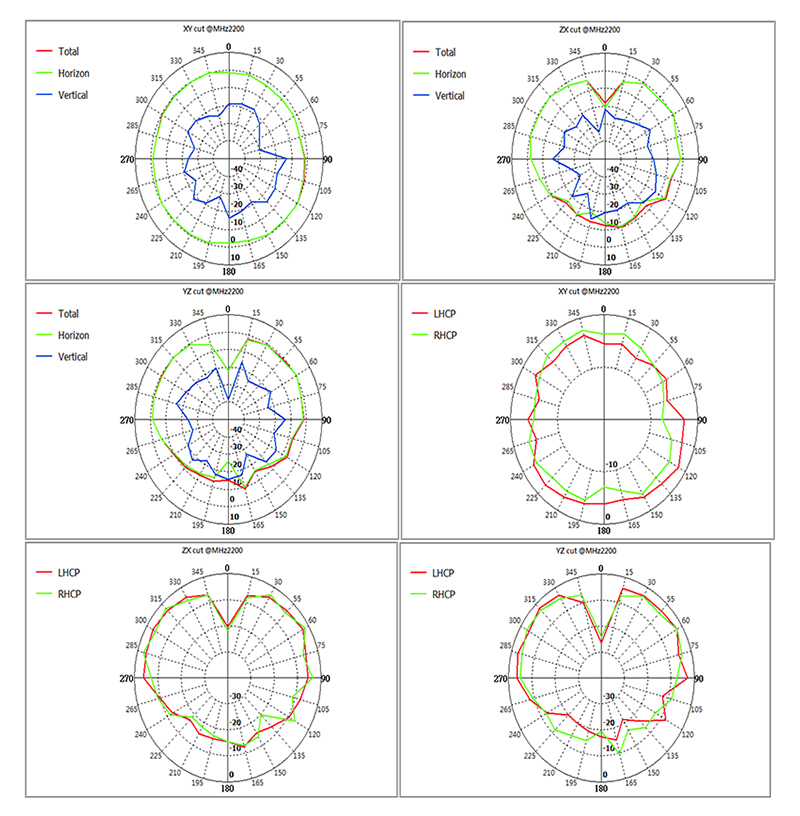

2200Mhz:

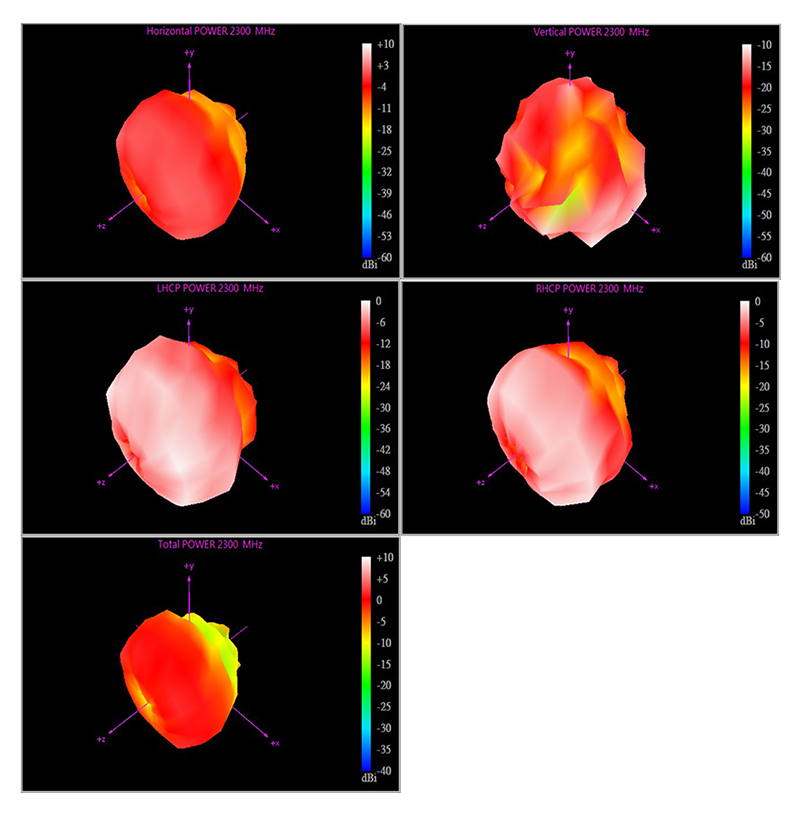

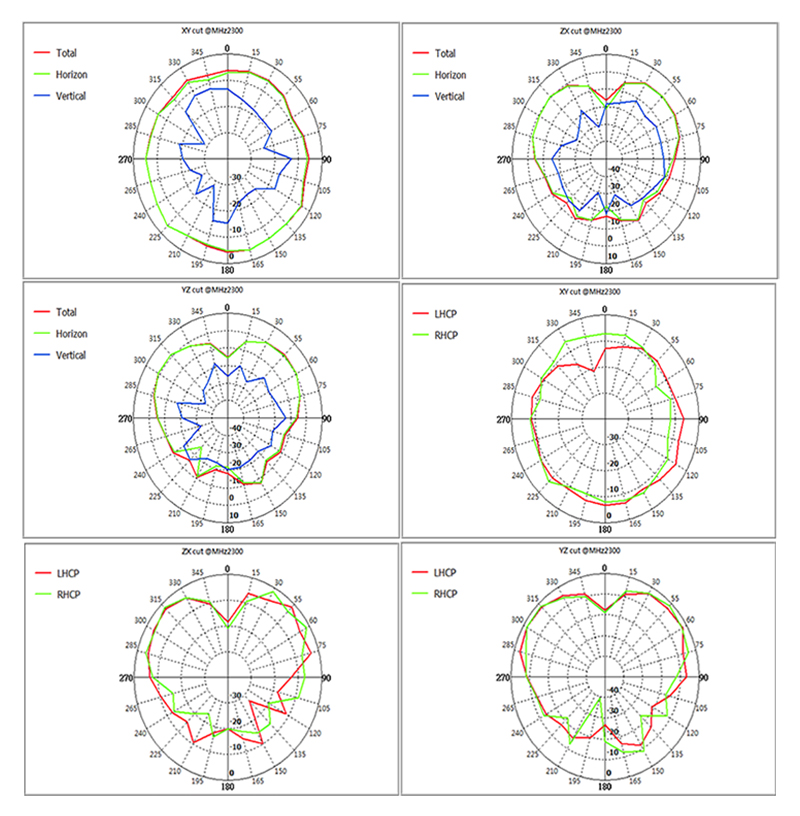

2300Mhz:

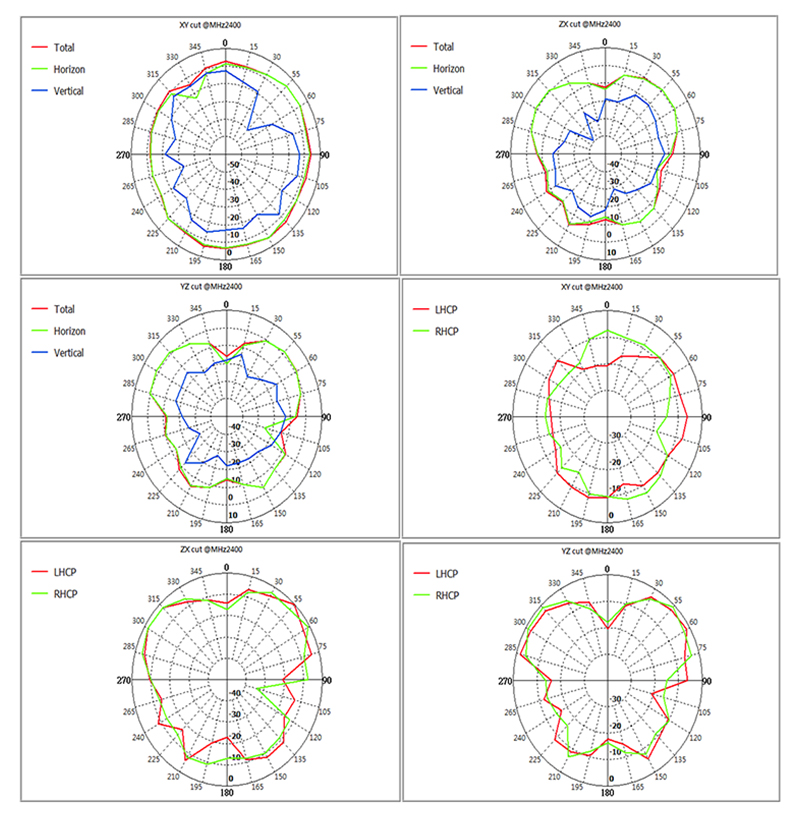

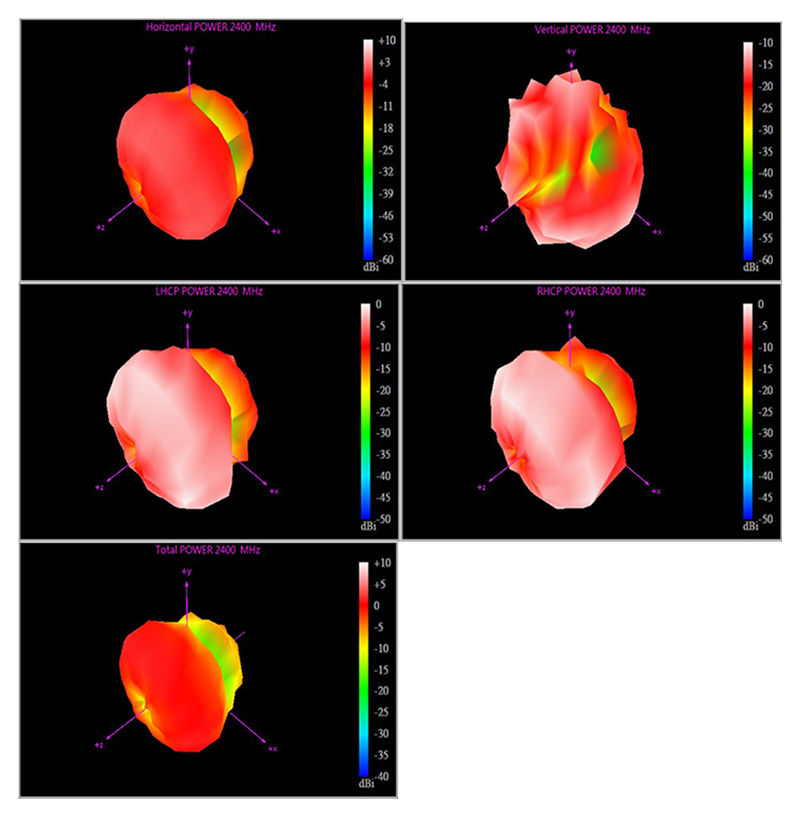

2400Mhz:

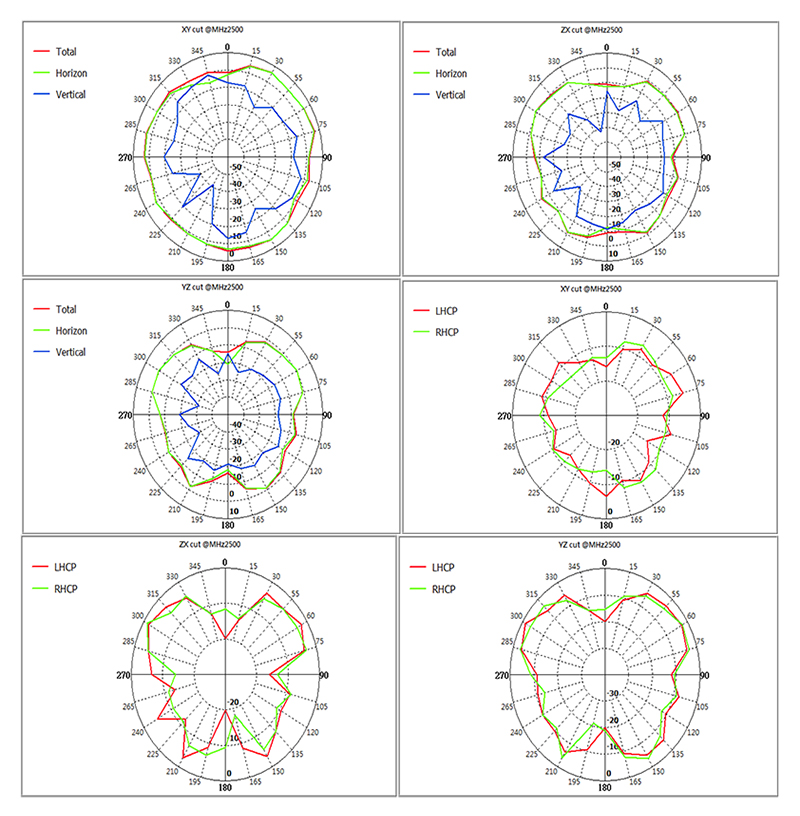

2500Mhz:
