1.GENERAL DESCRIPTION
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
1350~1450MHz |

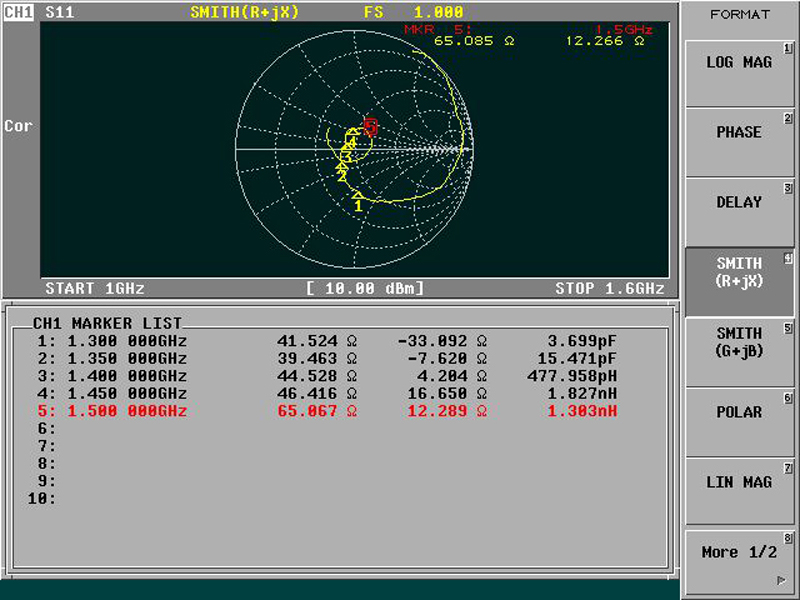

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

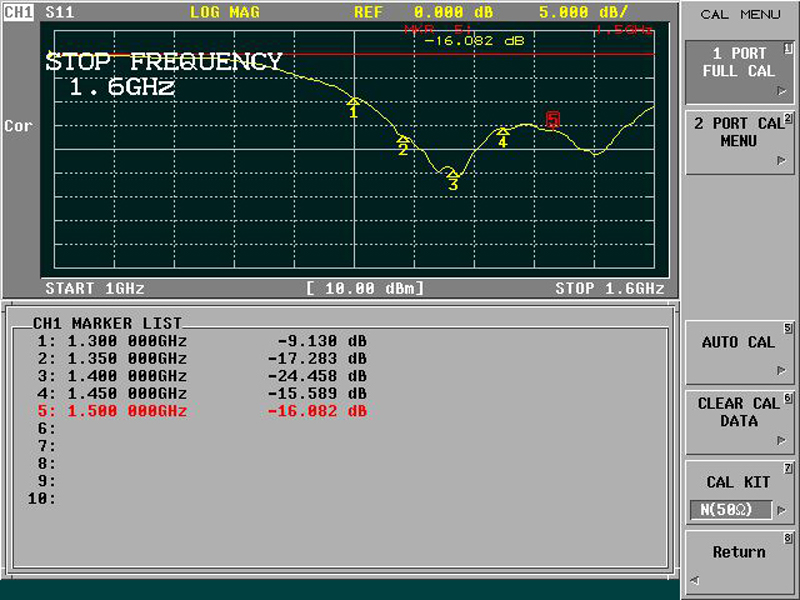

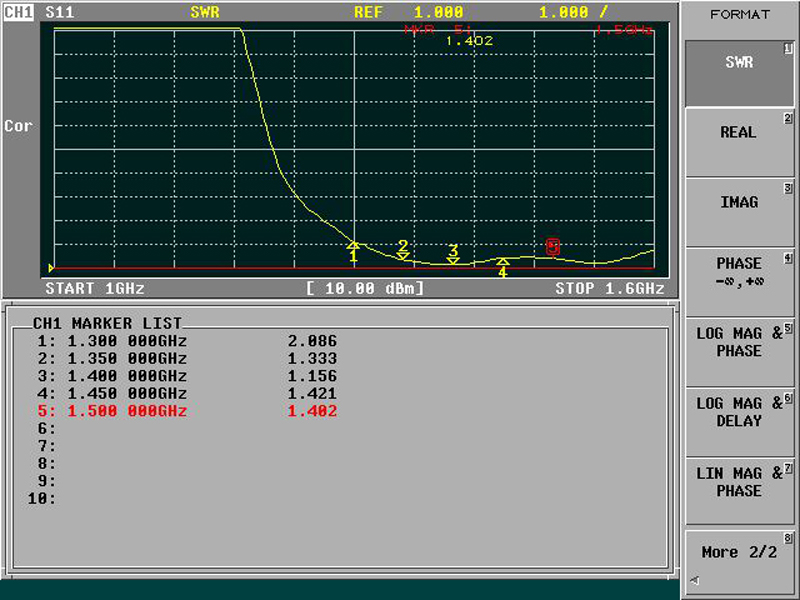

| V.S.W.R |
2.0:1 |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Materal |
ASA |
| Touch Type |
Screw Type |
| Connector Type |
N connector (Male) |

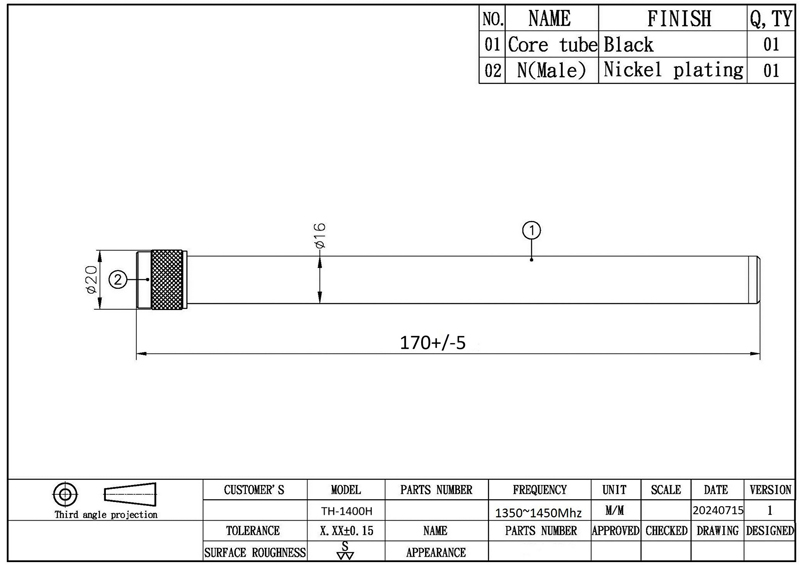

| Antenna Dimensions |
170mm ±5 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |

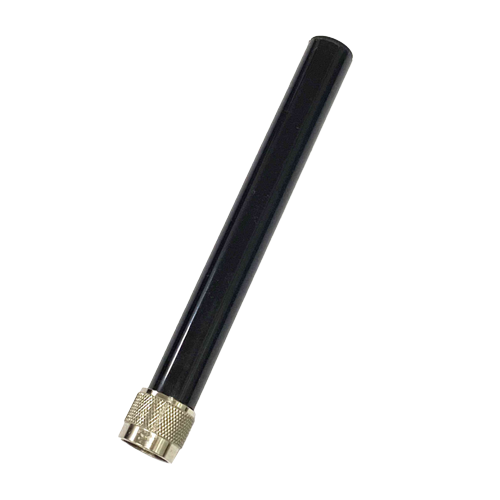

Our TH-1400H is a Passive Antenna that’s suitable for L-Band communication transmission equipment. It’s best for UAV control data transmission, wireless AP, PA signal transmission, interference… etc. The ASA has strong weather resistance and its anti-aging performance is more than 10 times that of ABS. Please don’t hesitate to email us if you have any questions.
