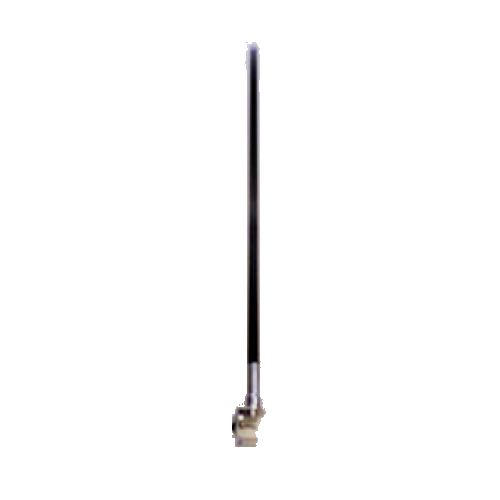

VUA-2701 Marine VHF/UHF Antenna
  • 제품 설명
  • 제품 사양

Coil and radiator are enclosed in FRP tubing to assure low SWR in all weather. VHA2701 can work about any where with radialless design. DC ground structure for protecting equipment.

VHF/UHF
Fr 144 ~ 148 Mhz / 430~450 Mhz
Gain 3 dB / 5.5db
Configuration 1/2 wave / 5/8 wave
Impedence 50 ohm
Connector PL259(P) with RG58 cable
Dimension 20mm(Dia.) x 1020mm (L) (without Fixed base )
Weight 570g (With Fixed base)
