TC-822

TC-822

문의

다운로드

  • 제품 사양
Frequency range: 824-960/1710-1990/1990-2170Mhz & 2.4-2.5G/3.3-3.8G/5.0-5.9Ghz
Gain: 0 dBi
V.S.W.R: 2.0:1
Impedence: 50 ohm

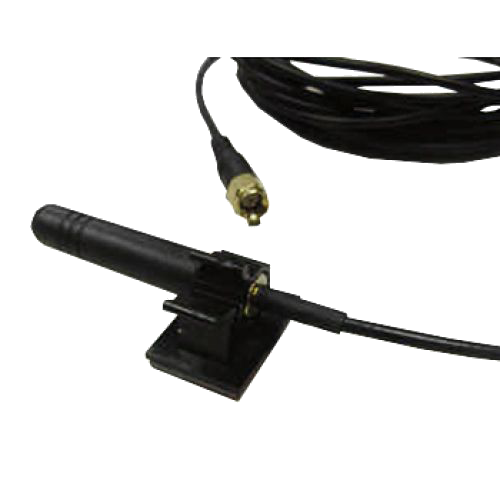

Cable & Connector: RG174-5M-SMA(M)
Dimension: 9.3(Dia.) × 52 (L) mm
Weight: Mounting 50g (With 5M cable) A:7.9~10.3 mm / B:25.4mm / C:22.2mm / D:19.1mm / E:1.6mm / F:10.2mm
*This specification is subject to change without prior notice
