IAP-700 Internal GSM Antenna
  • 仕様
Working Frequence 824~960/1710~1990/1990~2170Mhz
Electric Wave DIPOLE
Impedance 50 Ohm

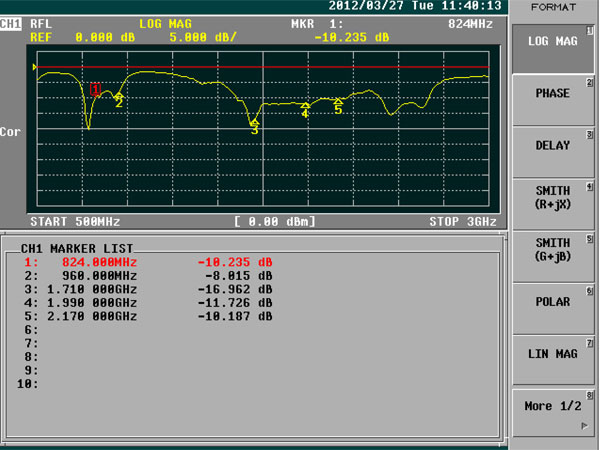

V.S.W.R 3.0 MAX
Gain 0~3dBi
Cable & Connector 1.13-300mm-IPEX
Polarization vertical
Power Handling 2 W
Operating Temperature -40°C -- +85°C
Antenna Dimensions 53 x 8.9 x 0.8 mm
