YGA-240

YGA-240

Inchiesta

Scarica

  • Specifiche di prodotto

Electrical Properties

Parameter Description
Frequency Band 2400-2500MHz
Nominal Impedance 50 ohm
Polarization Vertical

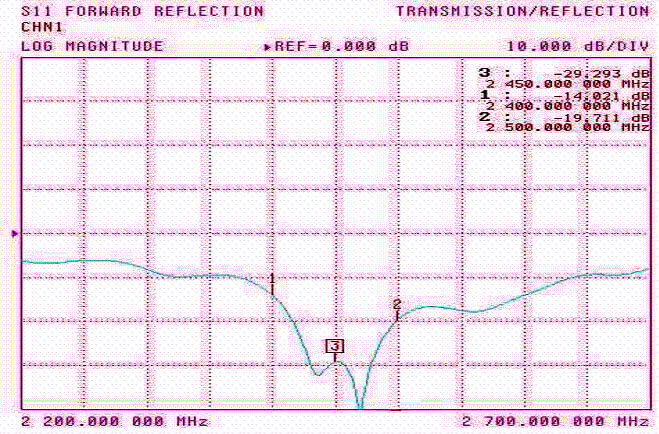

V.S.W.R 2.0:1
Antenna Gain 8 dBi
Note: Gain includes the cable loss

Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch  Type Screw Type
Connector Type SMA 180° (Male)
Antenna Dimensions 300 mm ±5
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

Appearance
