High Gain gps antenna 3V:38db/5V:45db

Small size and ruggedness, demand of vehicle locating and car navigation GPS antenna that will sustain harsh environment.

  • Fully weather proof.
  • Ultra-high Sensitivity.
  • Compact construction.
  • Excellent temperature stability.
  • FB3A SUS L-Mounting 1"-14 UNS.

The antenna system MA-650PL is the integration of the high performance GPS patch antenna and a low noise amplifier into state-of-the-art low a very low profile/extremely compact/fully waterproof antenna signal enclosure. When connected to a GPS receiver with +2.5~ 5.5V DC antenna powers it provides excellent signal amplification and out-band-rejection for that receiver.

GPS antenna with double threaded bolts and through holes for cable routing with course & fine treaded pitch locking for wing-nut fastener and lock-nut to prevent vibrations and un-authorize removal.

Antenna Element
Center Frequency 1575.42 MHz +/-1.023 MHz
Polarization R.H.C.P. (Right Handed Circular Polarization)
Absolute Gain @ Zenith +5 dBi typical Based on 70×70mm ground plane
Gain @ 10° Elevation -1 dBi typical
Axial Ratio 3 dB max.
Output VSWR 1.5:1 Typ.
Output Impedance 50 ohm
Low Noise Amplifier
Center Frequency 1575.42 MHz +/- 1.023 MHz
Power Gain 38db(3V) / 45db(5V) (Without cable +25°C±10°C)
Bandwidth 10 MHz min.
Noise Figure 1.6 Typ.
Outer Band Attenuation 20 dB min. @ Fo +/-50 MHz
Supply Voltages 3.0~5.0V DC
Current Consumption 21mA@ 3.0V DC,25mA@ 5.0V DC
VSWR 1.5 max.
Output Impedance 50 ohm
Overall Performance: (antenna element, LNA & coax cable)
Center Frequency 1575.42 MHz
Gain 38db(3V) / 45db(5V) (Without cable +25°C±10°C)
Noise Figure 2.0 max.
Bandwidth 10 MHz min.
Axial Ratio 3 dB max.
VSWR 1.5 max.
Output Impedance 50 ohm
Environmental Conditions
Operating Temperature -30°C to +80°C
Storage Temperature -40°C to +100°C
Relative Humidity 40% to 95% non-condensing
Water Resistance 100% waterproof
Physical Constructions
Dimensions Antenna: 60mm(Dia.) × 95mm(H)
Weight 200 grams (without cable)
Standard Mounting Bulkhead mount with 0.8 inch threaded wing nut (standard accessory).
Mounting Adapters Pole mount to 1"-14 UNS threaded mast
Base mounting FB3A SUS L-MOUNTING 1"-14 UNS
Cable & Connector
RF Connector SMA(F) or TNC(F)
Cable Pulling strength 6 Kg @ 5sec. molded plastic on connector end for strain relief.

*This specification is subject to change without prior notice / Data Updated: NOV 01, 2012

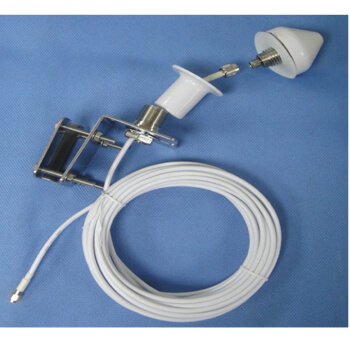

Marine Antenna Base mounting: FB-3A

1"-14 UNS threaded mast SUS304/C3604 Locks on the truck rear-view mirror or on iron stand or flagpole
