  • Specifiche di prodotto

1.  General Description

Model No P/N
LW-68 LW-68-61CM-SMA(M)

Below is a table summarizing the antenna design specification.

1.1 Electrical Properties

Parameter Description
Frequency Band Cable 1:  698~960/1710~2690Mhz
Cable 2 :  2.4~2.5/5.1~5.85Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Admitted Power radiation 5W
V.S.W.R 3.5:1
Antenna Peak Gain 0~3db
Note: Gain includes the cable loss

1.2 Mechanical Properties

Parameter Description

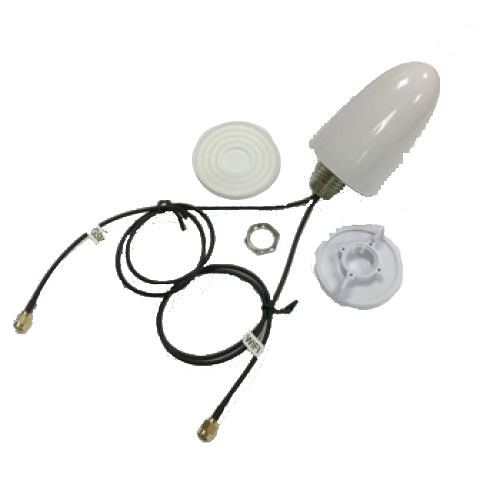

Antenna Type External Antenna
Material ASA-UV
Touch  Type Screw Type
Cable & Connector RG174-610mm-SMA (M) x 2
Antenna Dimensions 60mm(Dia.) x 90mm(H)
Mounting FB6 SUS L-Mounting (optional)
Antenna Color White
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C
Waterproof IPX7

LTE/3G Test : ON 320x240 GND

WIFI Test : ON 320x240 GND
