GAF-5 (GSM & WIFI) GSM/WIFI Antenna
  • Descrizione del prodotto
  • Specifiche di prodotto

Five Band GSM with WIFI Antenna

Model No: GAF-5-GSM/WIFI
This document provides a five-band GSM + Wierless Antenna design;

Electrical Properties

Parameter Description
Frequency Band 824~960/1710~2170MHz 2.4~2.5Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

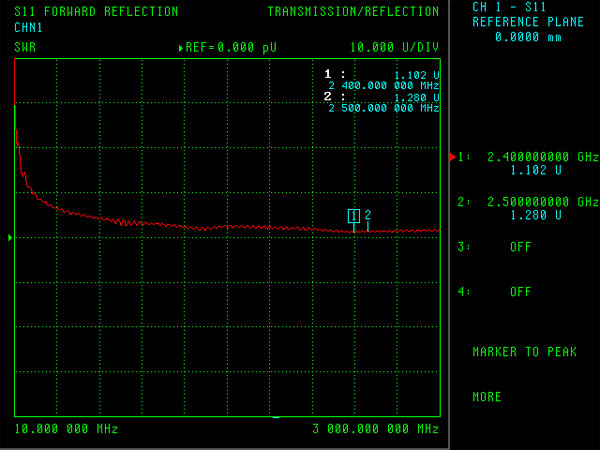

V.S.W.R 2.0:1
Antenna Average Gain 0~5.0dBi 1.5db
Note: Gain includes the cable loss

Mechanical Properties

Parameter Description
Antenna Material ABS
Connector Type SMA 180° male
Antenna Dimensions 45 x 45 mm
Antenna Cable Total Length 2500mm ± 20 x 2
Antenna Color Black
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C
