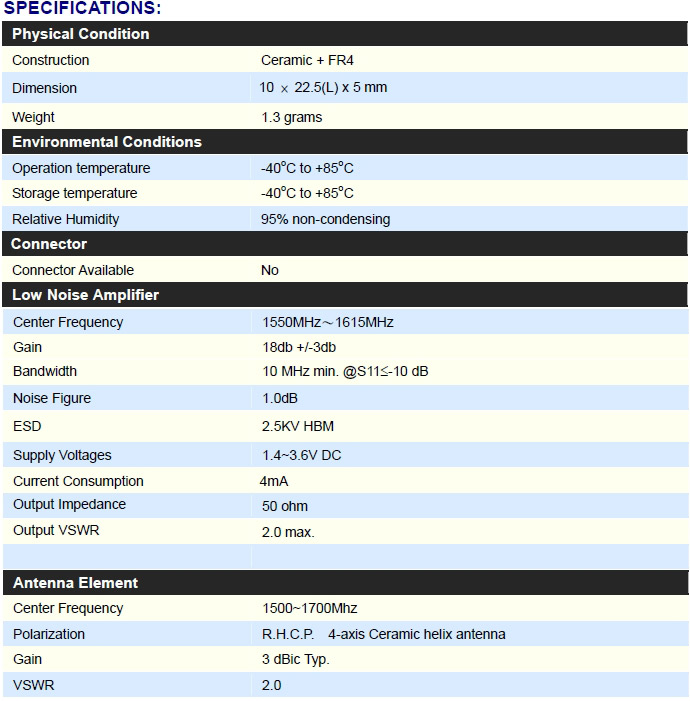

  • Specifiche di prodotto

Compact & Sensitive BDS/GNSS antenna with Excellent Signal Amplification for Mobile Applications

GAM‐100 is the integration of a high performance BDS/GNSS antenna and a state‐of‐the‐art low noise amplifier into a very low profile/ extremely compact/ fully waterproof enclosure which, when connected to a BDS/GNSS receiver with 1.4~3.6V DC antenna power, provides excellent signal amplification and out‐band filtering & rejection, provide 1.4~3.6V input Voltage is available.

FEATURES:

  • Compact Construction/ Low Profile/
  • Omni-Directional Antenna Patterns
  • Excellent Temperature Stability
  • Low Noise Figure
  • High Sensitivity



APPLICATIONS:

  • Automobile BDS/GNSS
  • Car Tracking Navigation System
  • AVL / Fleet Management Systems
  • External Antenna for Handheld BDS/GNSS
  • External Antenna for PDA Navigator

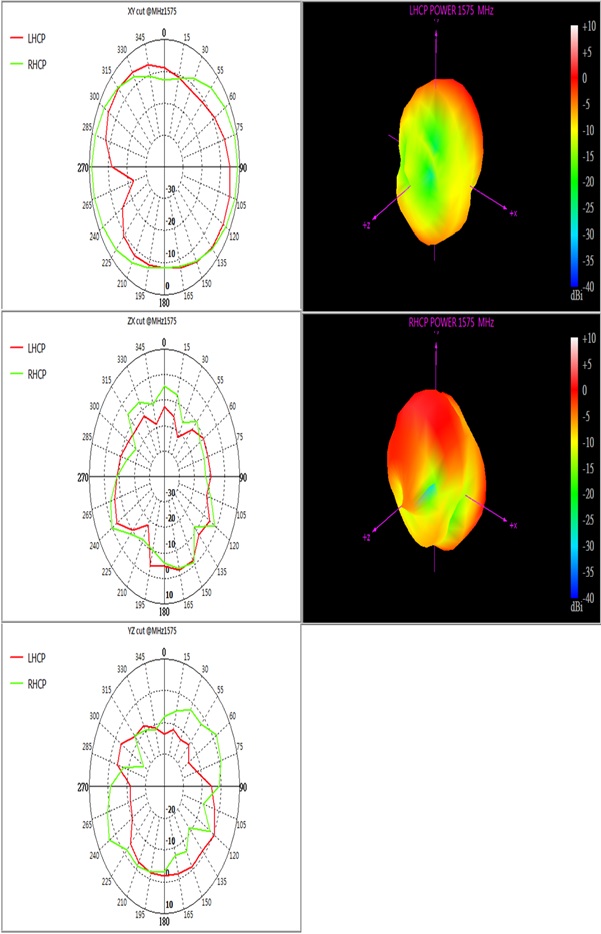

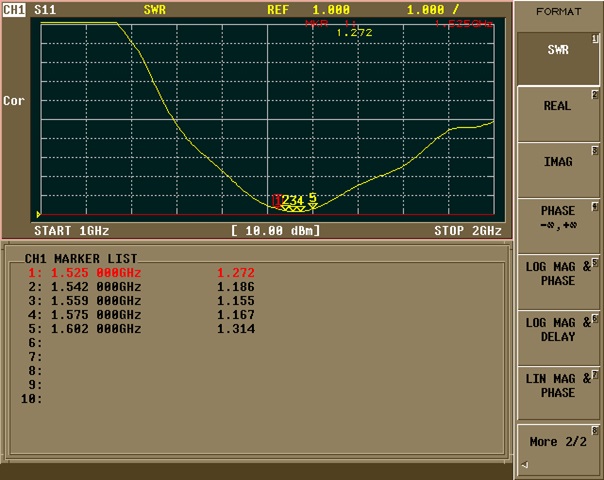

Passive antenna test :

1542Mhz:

1559Mhz:

1575Mhz:

1602Mhz:

1620Mhz:

Active antenna test :
