Small size and ruggedness, demand of vehicle locating and car navigation GPS antenna that will sustain harsh environment.

  • Low noise figure
  • Fully weather proof IPX7
  • Ultra-high Sensitivity
  • Compact construction
  • Excellent temperature stability

GPS antenna with double threaded bolts and through holes for cable routing with course & fine treaded pitch locking for wing-nut fastener and lock-nut to prevent vibrations and un-authorize removal.

Physical Condition
Constructions: Polycarbonate radome,detachable cable/connector for easy mount, rubber-O-ring between top radome and screw base for waterproof
Dimensions: 60mm(Dia.) x 18.5mm(H)
Weight: 65grams (w/o cable & connector).
Color: Standard in ivory white, other colours available upon request.
Mounting: Bulkhead mount with 0.8 inch threaded wing nut (standard accessory).
Cable & Connector
RF cable: TNC(M) +10 meter RG58 +BNC(M) (standard) other length (optional)
Pulling strength: 6 Kg @ 5sec. molded plastic on connector end for strain relief.
Connector available: TNC(F)or SMA(F)
Antenna Element
Center Frequency: 1575Mhz & 1596-1610 MHz
Polarization: R.H.C.P. (Right Handed Circular Polarization).
Bandwidth 10 MHz min. @S11-10 dB, 24MHz typ. @S11
Gain @ 10° Elevation: 2 dBi typical.
Axial Ratio: 3 dB max.
Output VSWR: 2.0
Output Impedance: 50 ohm
Low Noise Amplifier
Power Gain: 1570 Mhz : 29db typ
1610 Mhz : 29db typ
Bandwidth: 50 MHz min.
Noise Figure: 1.5 typ
Outer Band Attenuation: 20 dB min. @ Fo +/-50 Mhz.
Supply Voltages: 2.3~5.5V DC.
Current Consumption:

2.5V 6.6mA Typ.
3.0V 10.6mA Typ.
4.0V 14.6mA Typ.
5.0V 20.6mA Typ.

Output Impedance: 50W ohm
Overall Performance: (antenna element, LNA & coax cable)
Center Frequency: 1570 ~1610 Mhz.
Gain: At 90° vertical to sky 30 ± 4.5dBi (cable loss)
Note:1 Mounted on the 60mm x 60mm square ground plane
Noise Figure: 2.0 max.
Axial Ratio: 3 dB max.
Bandwidth: 10MHz min.
VSWR: 2.0 max.
Output Impedance: 50W ohm
Environmental
Operating Temperature: -40°C~ +85°C.
Storage Temperature: -40°C~ +90°C.
Relative Humidity: 95% non-condensing.
Water Resistance: 100% waterproof.

*This specification is subject to change without prior notice / Data Updated: Sep.10, 2009

GSM / CDMA / 3G / WIFI
Frequency 850/900/1800/1900/2170 2400~2500Mhz
VSWR 2.0 2.0
Impedence 50Ω 50Ω
Cable type RG174 RG174
Cable length 5M or 3M 5M or 3M
Connector SMA Coding or Others SMA Coding or Others
*This specification is subject to change without prior notice / Data Updated: Aug.31, 2009
GPS TEST:
GSM TEST:

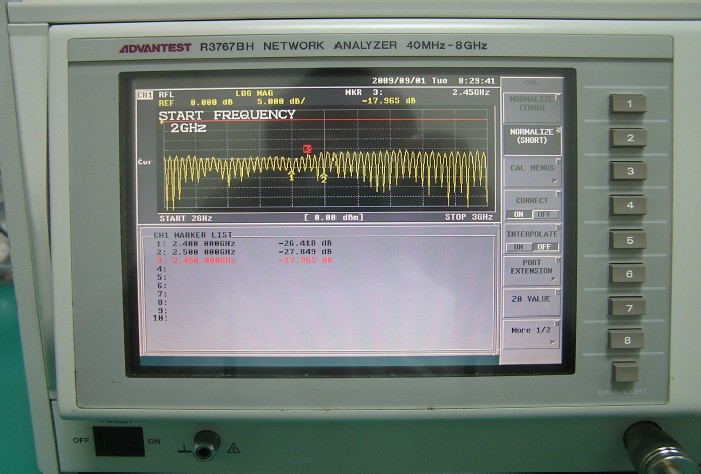

WIFI TEST:
