Electrical Properties
| Parameter |
Description |
| Frequency Band |
1250~1440 MHz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
Dipole |
| Return Loss |
Please See Data-1 |
| V.S.W.R |
2.0:1 |
| Gain |
2.5db |
Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
TNC (Male) |
| Antenna Dimensions |
315mm ±5 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |

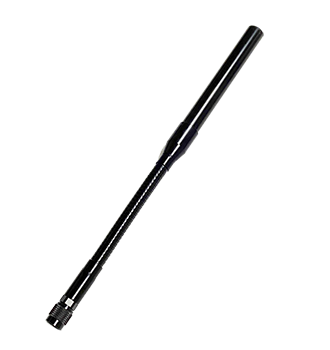

Our TH-1300 is a Passive Antenna for all types of L Band & Iridium devices, which is best for short-range and long-range communication services with L Band radio positioning technology, industrial or scientific, medical or interference technology applications. The ASA is strong weather resistance and its anti-aging performance is more than 10 times of ABS. The gooseneck design allows the antenna to be bent and changed at any angle base on your preference. Please don’t hesitate to email us if you have any questions.
