900Mhz & 2.4G Dual Band Antenna TH-9024D-TNC(M)
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
TH-9024D TH9024D-TNC(M)
Below is a table summarizing the antenna design specification.

1.1 Electrical Properties

Parameter Description
Frequency Band 902~928 MHz & 2.4~2.5Ghz ON GND
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

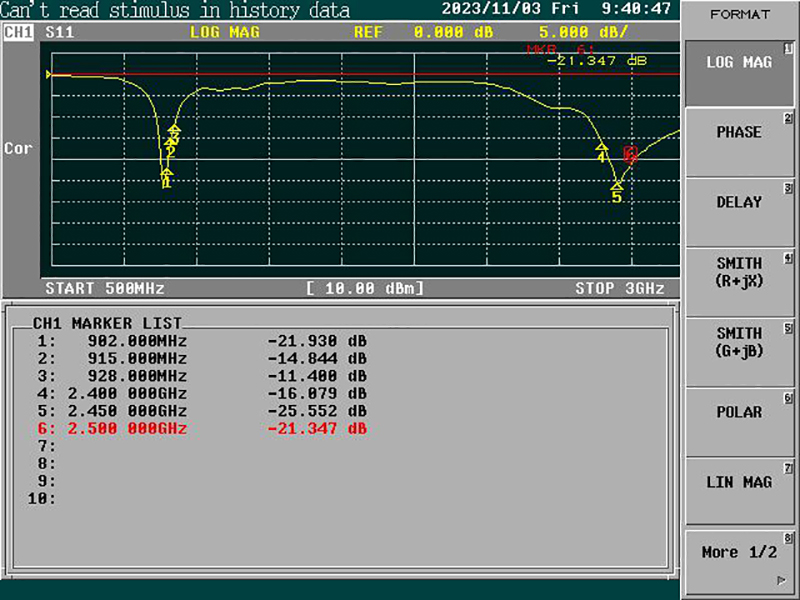

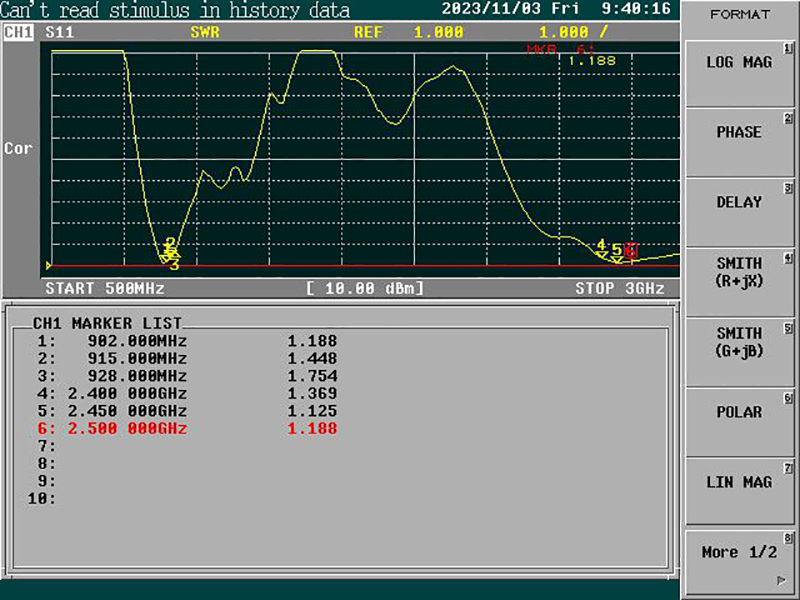

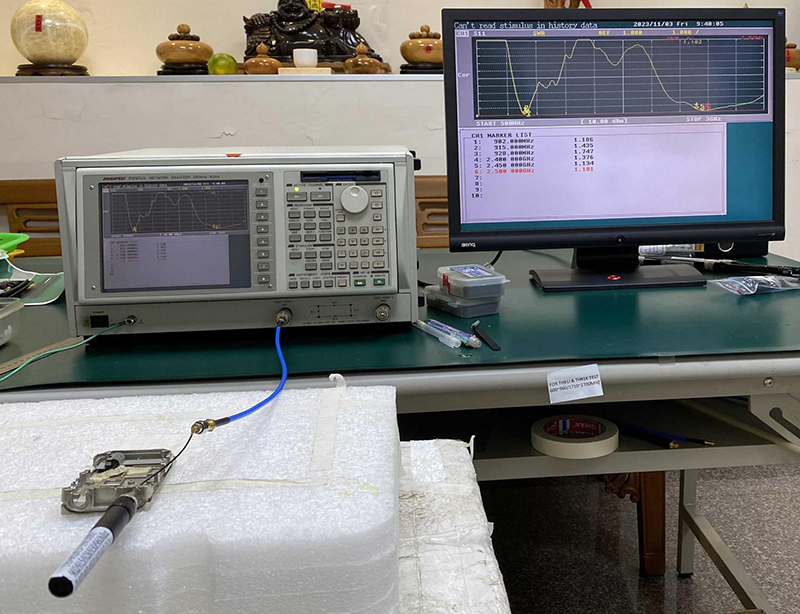

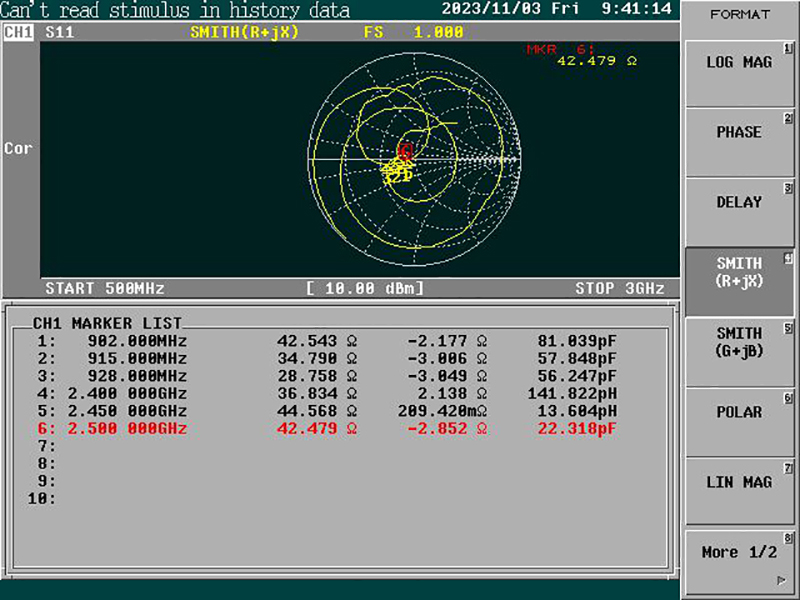

Return Loss Please See Data-1
V.S.W.R 2.0：1
Gain 1.5 / 2.5db

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type TNC(Male)
Antenna Dimensions 106.7mm ±3
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

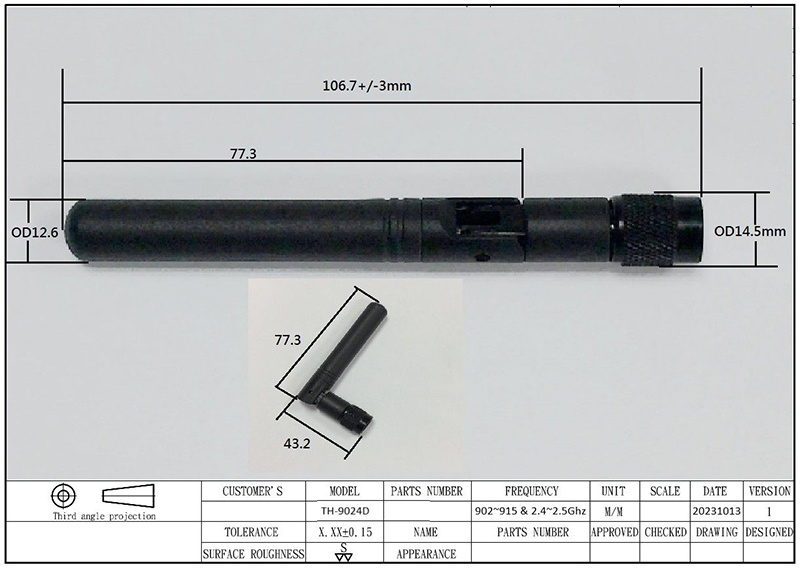

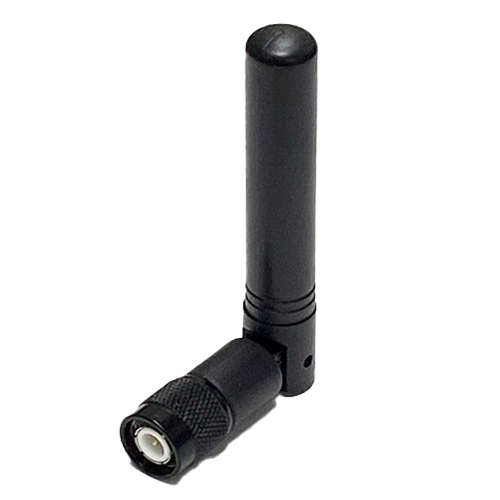

2. Appearance

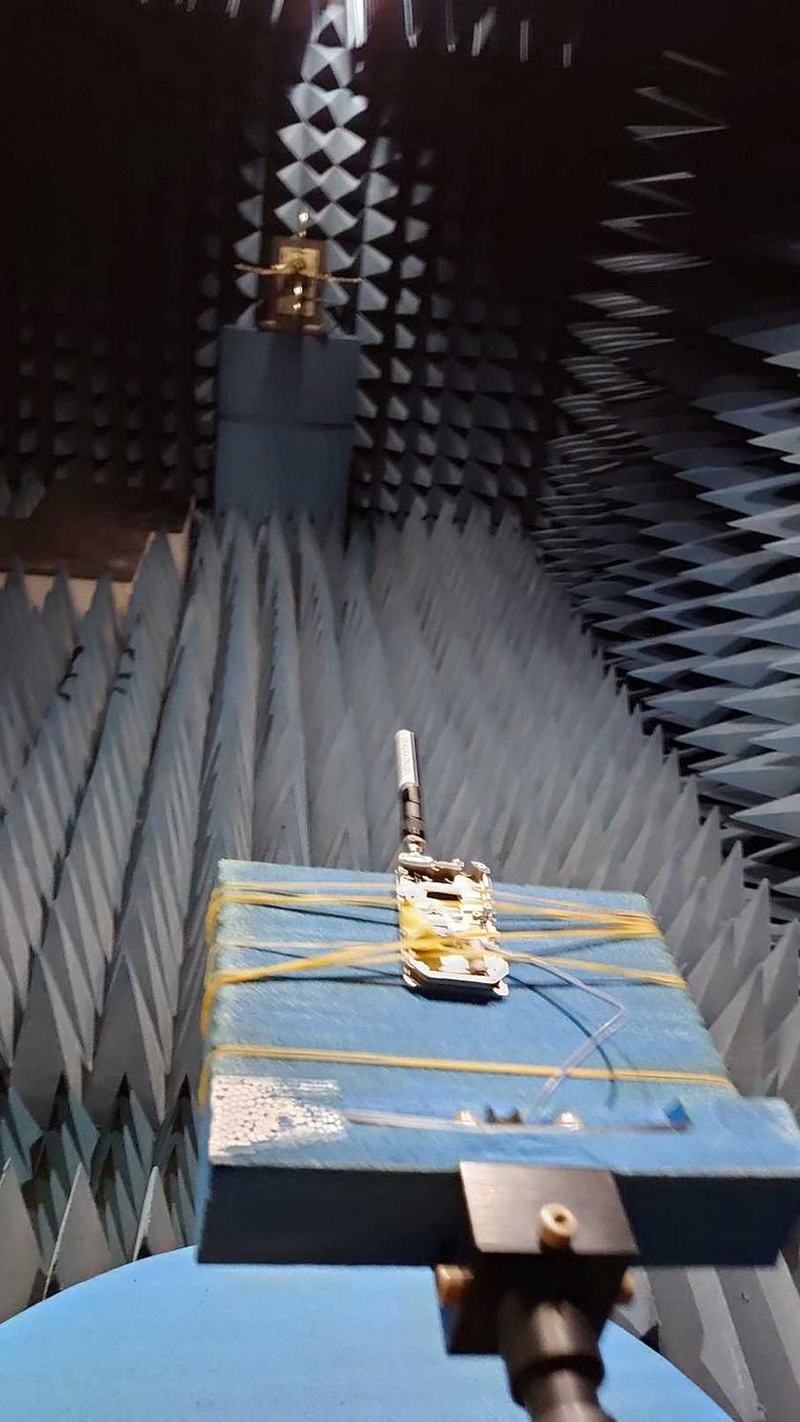

3. Frequency





3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
902 MHz -8.58 -5.82 -3.97 40.06 1.76 -3.97
915 MHz -8.65 -5.39 -3.71 42.51 1.44 -3.71
928 MHz -8.39 -4.94 -3.32 46.55 1.46 -3.32
2400 MHz -6.26 -6.48 -3.36 46.17 1.84 -3.36
2450 MHz -5.80 -6.41 -3.08 49.16 2.68 -3.08
2500 MHz -5.20 -6.10 -2.62 54.76 2.96 -2.62

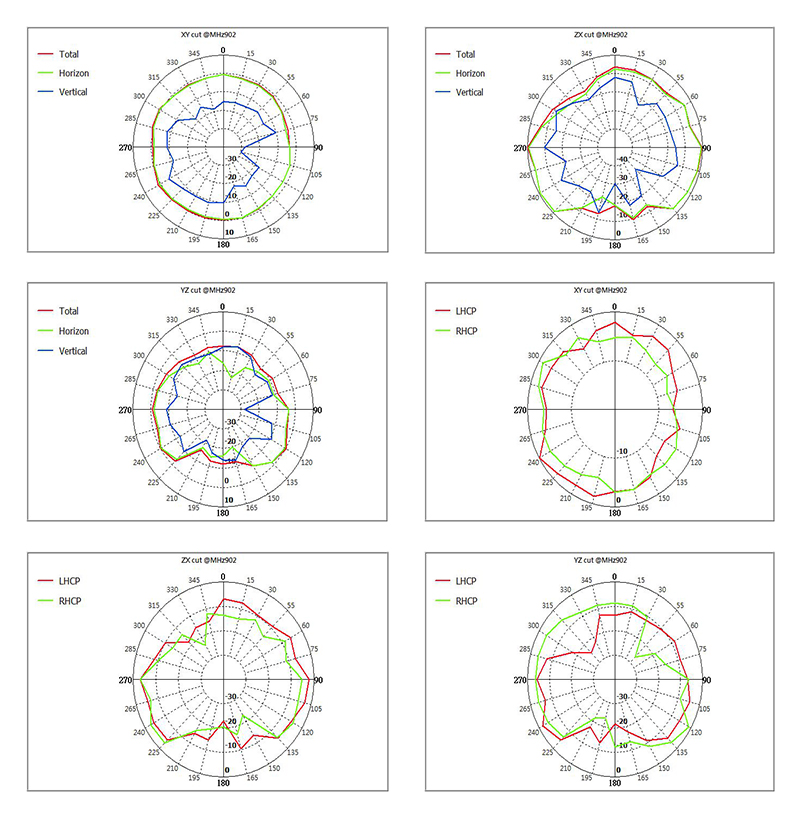

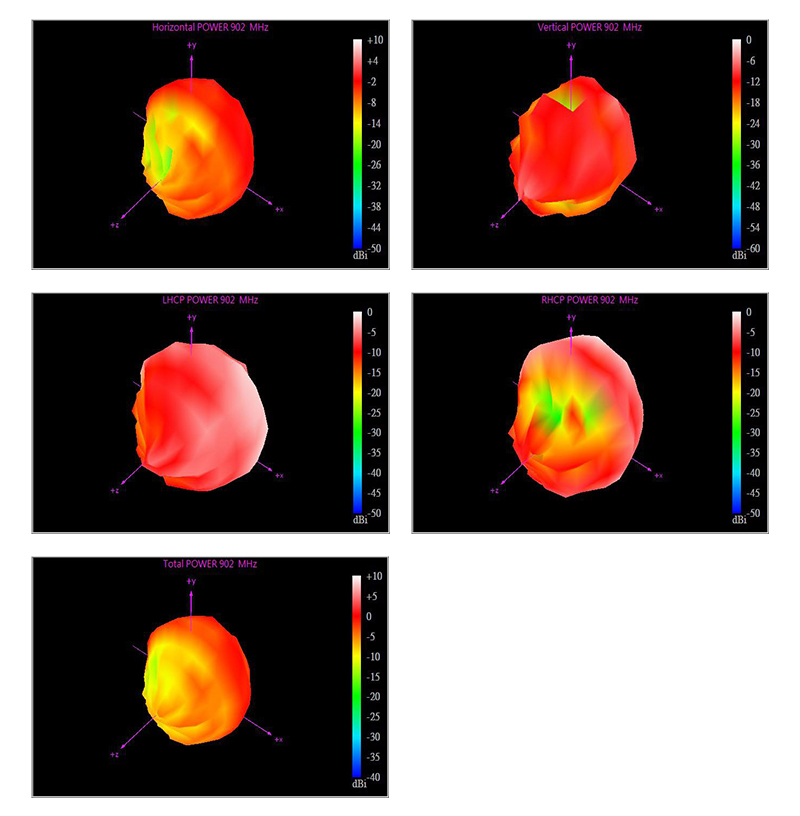

902Mhz:

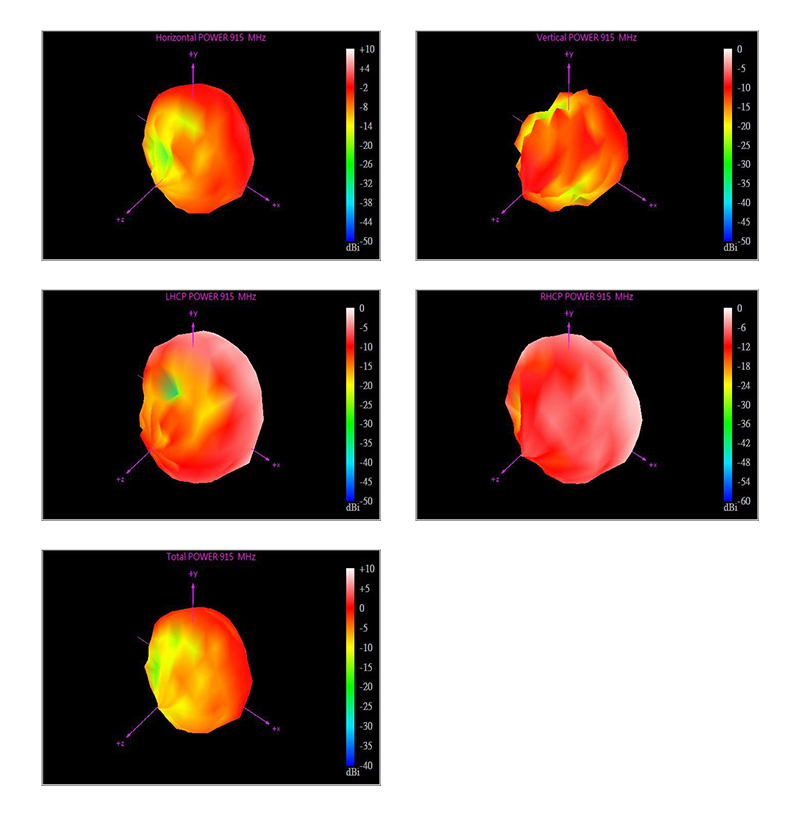

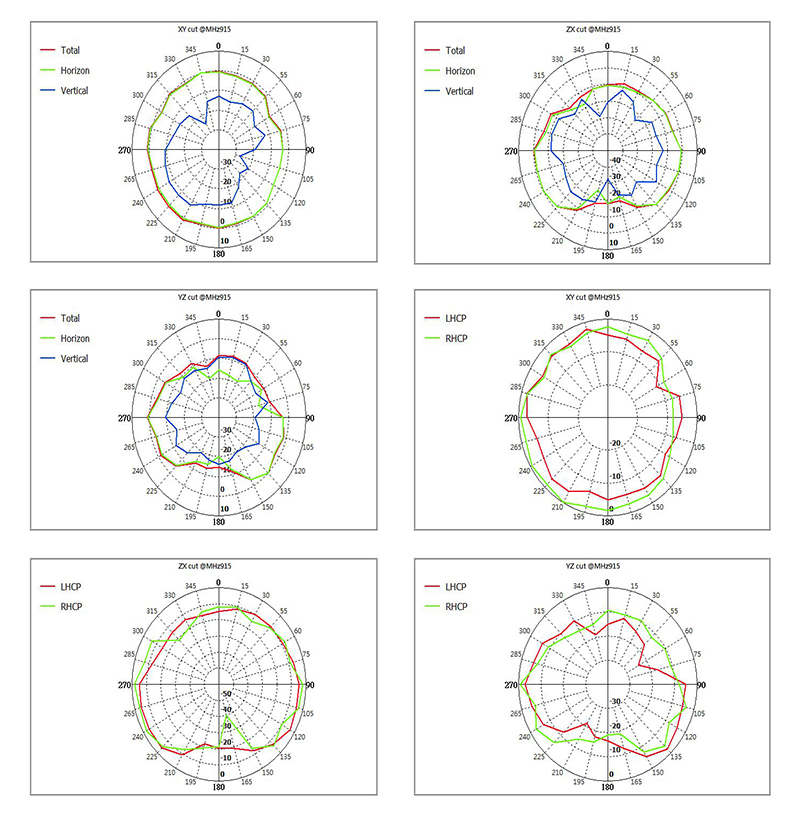

915Mhz:

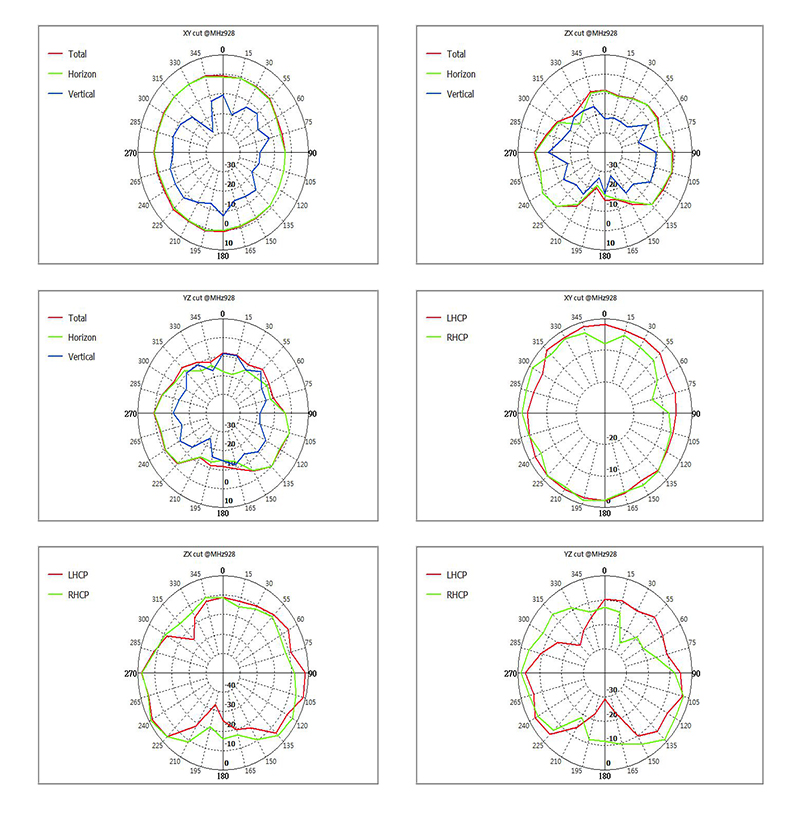

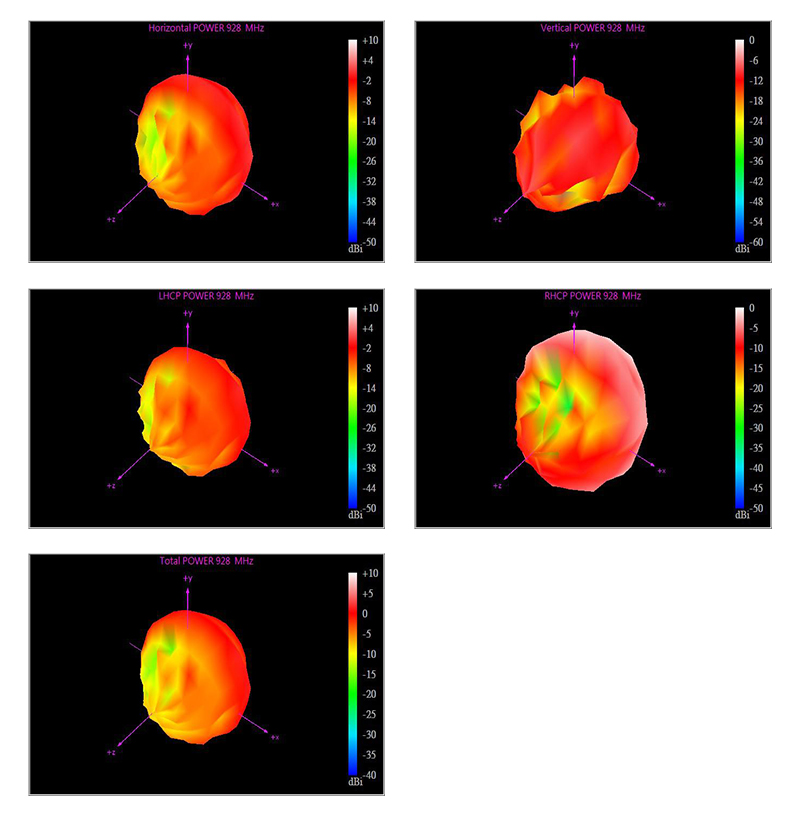

928Mhz:

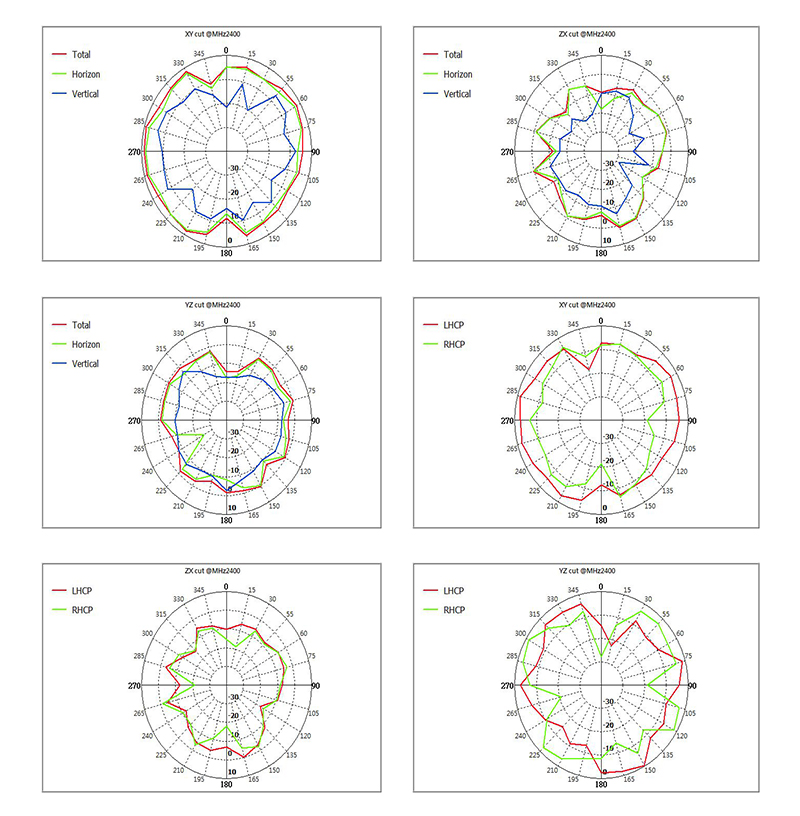

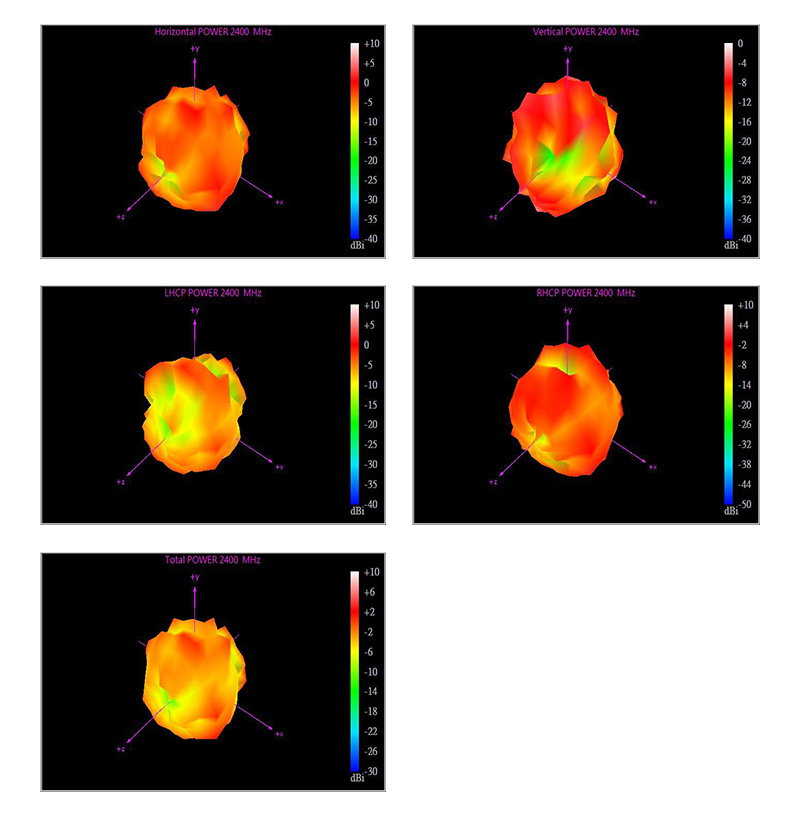

2.4Ghz:

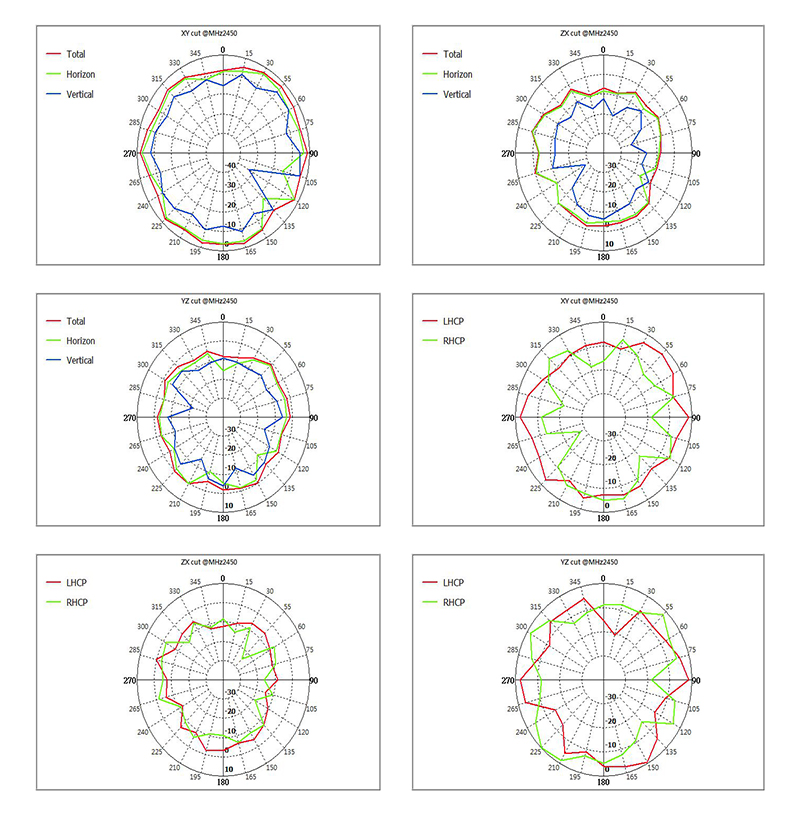

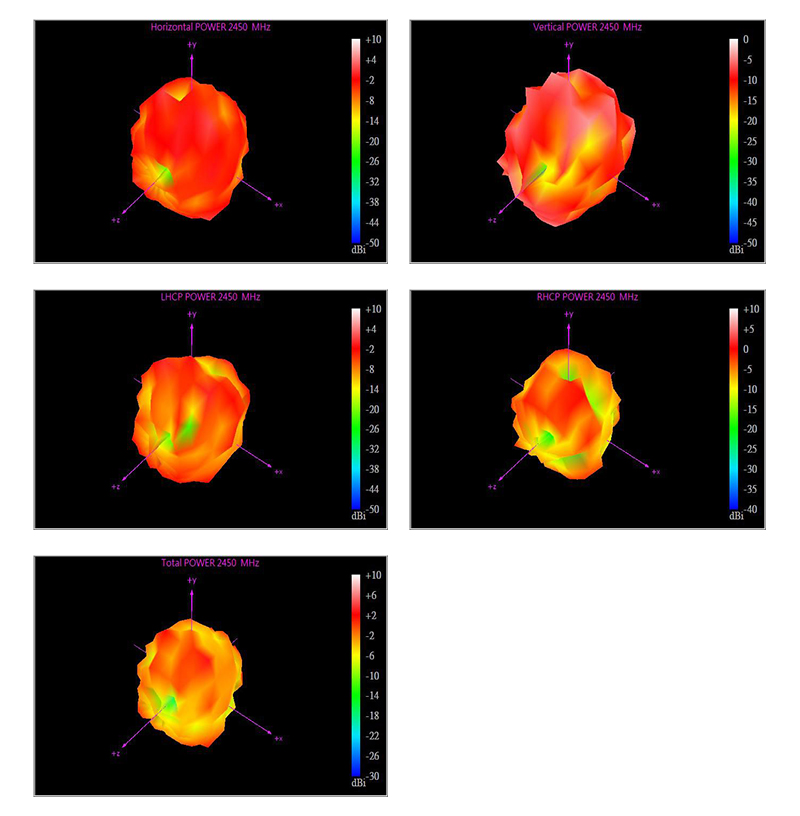

2.45Ghz:

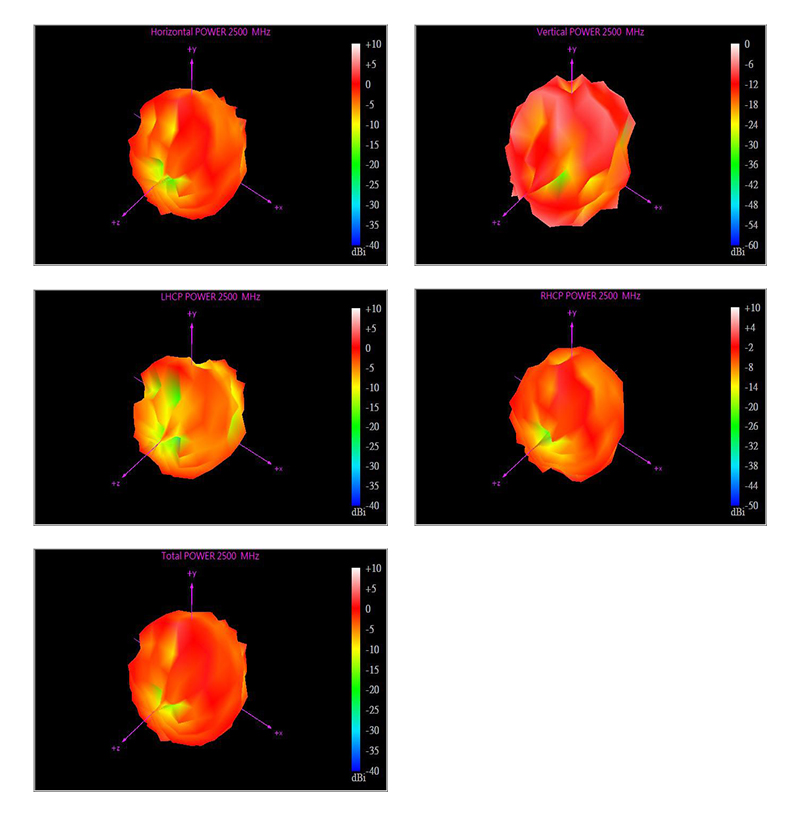

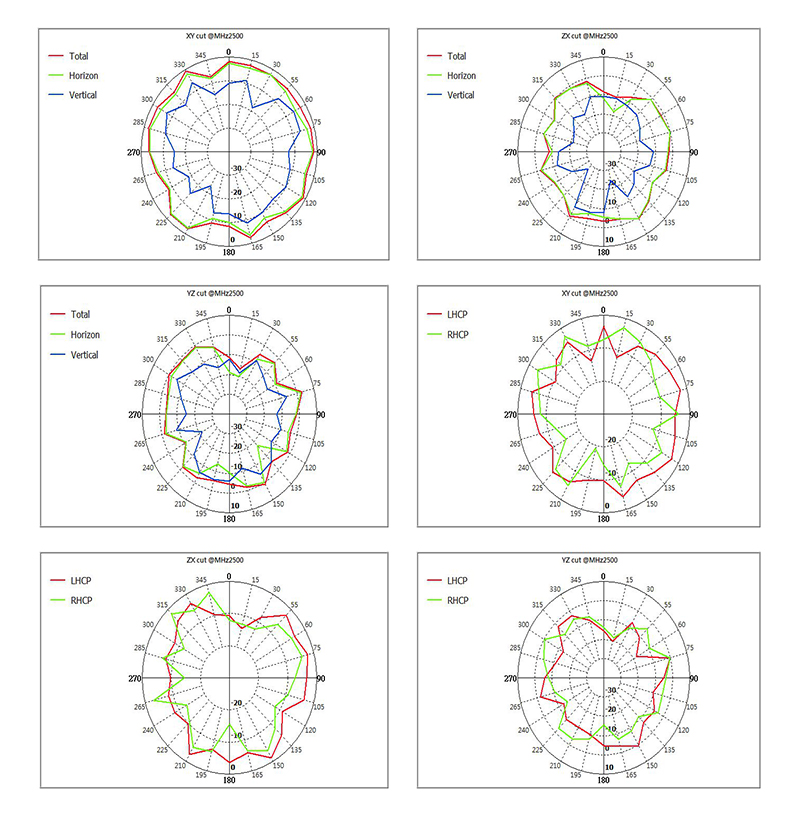

2.5Ghz:
