TP-241 External Panel Antenna
  • 產品規格
Frequency range: 2.4~2.5GHz
Gain: 21 dBi

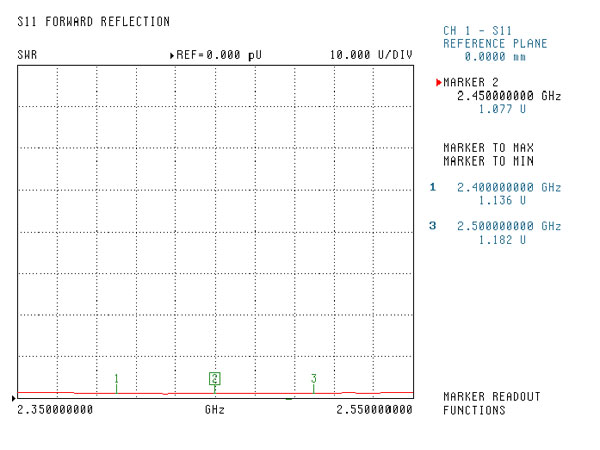

V.S.W.R: 1 : 1.3 Max
Impedence: 50 OHMS ±5Ω
Connector: N Type Female
Dimension: 370*370*35mm
Weight: 2.1Kg
Polarization Linear
Power handling 20W Max
Front to back ratio 35dB
HPBW / horizontal 20°
HPBW / vertical 15°
Radome color WHITE
radome material PVC

*This specification is subject to change without prior notice

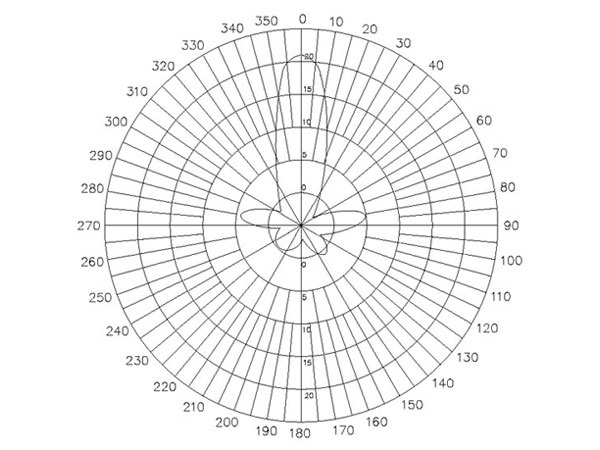

H-PLANE FIELD PATTERNS
E-PLANE FIELD PATTERNS
