FA-100 FM Antenna

FA-100

詢價

  • 產品敘述
  • 產品特性
  • 產品規格

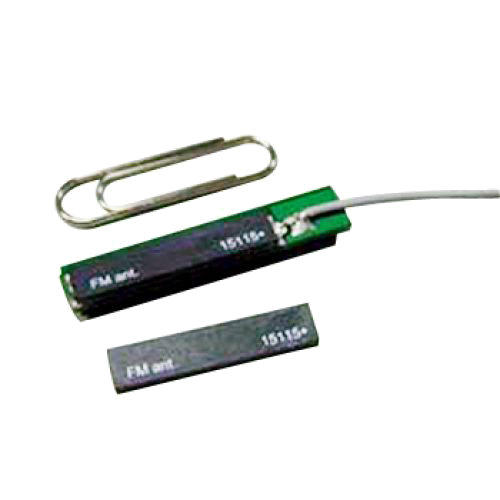

FA-100 is HIGH-PERFORMANCE FM 88~108MHz small antennas. It is for FM Radio, Mobile phone, Audio Player applications. This FM antenna comprises a radiating structure of multiple meandered conducting strips, which are developed on a tiny piece of Printed Circuit Board (PCB) and packed with a Thermal Plastic dielectric composite material to achieve size, performance characteristics and cost effectiveness superior to other designs. The Single body dimensions is 24.15 mm (L) x 5 mm (W) x 1.5 mm (T). Module dimensions is : 35.6 x7.0x 3.5mm(with 3M) with 70mm-IPEX cable.

Application

  • FM Radio
  • Mobile Phone
  • Audio Player



  • Ultra-Thin, Light Weight (0.3g)
  • Miniaturized Size
  • Omni-Directional Antenna Pattern
  • Wide Bandwidth
  • Favorable Linear Polarization
  • Thermal Plastic Insert Molding Technology
  • Cost-Effective
Frequency Band FM 88~108 MHz
Nominal Impedance 50 ohm
Polarization Linear
Pattern Omni-Directional
Dimension (mm3) Single body : 24.15x5x1.5 mm Module : 35.6 x7.0x 3.5mm(with 3M)-70mm-IPEX
Construction Thermal Plastic Insert Molding
