1. GENERAL DESCRIPTION

 Model No P/N
  MA-410-2.5-SMA(M)



Below is a table summarizing the antenna design specification.
1.1 Electrical Properties



Parameter Description
Frequency Band 433MHz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole
V.S.W.R 2.0:1



1.2 Mechanical Properties



Parameter Description
Antenna Material ABS
Connector Type SMA 180° male
Antenna Dimensions 115 mm ± 5
Antenna Cable Total Length 5000mm ± 50
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C

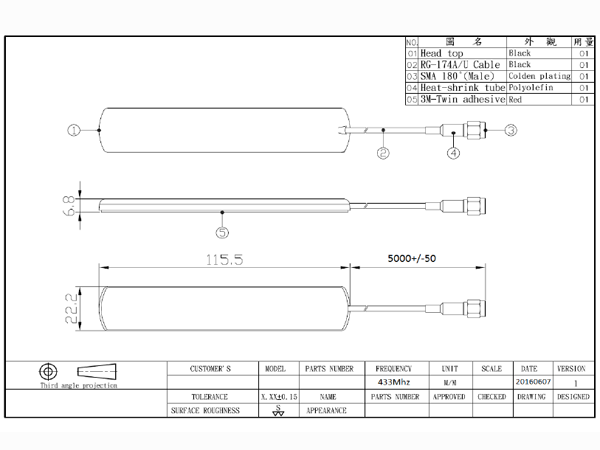

2.Appearance

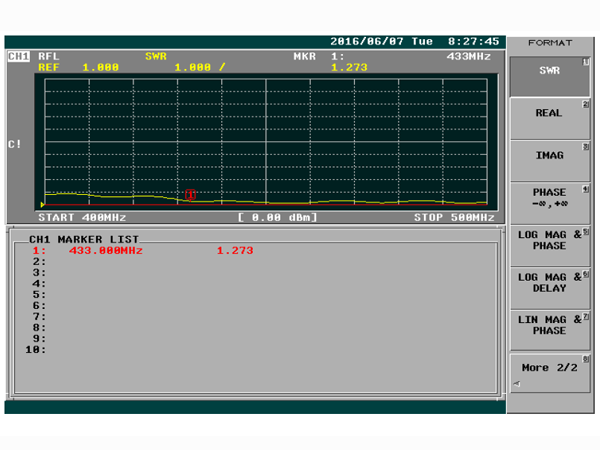

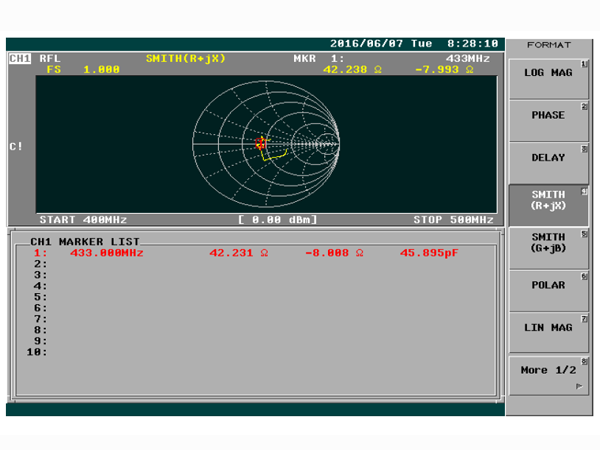

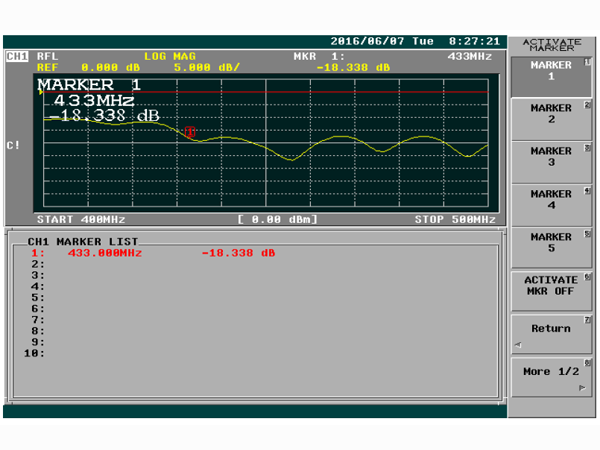

3. FREQUENCY
