GM-65UL

GM-65UL

詢價

下載

  • 產品敘述
  • 產品特性
  • 產品規格

Small size and ruggedness, demand of vehicle locating and marine navigation GPS Receiver that will sustain harsh environment.

GM62 is a Mini Marine GPS receiver build-in well-known SiRF StarIII GPS chipset. GM62 provides customer high position, velocity and time accuracy performances as well as high sensitivity and tracking capabilities. Customers benefit from the strength of both companies.Thanks to the low power consumption technology, the GPS-Mouse receiver is ideal for many portable applications such asPDA, Tablet PC, smart phone etc.

  • u-blox 6 solution
  • 50-channel GPS
  • SBAS (WAAS, EGNOS, MSAS, GAGAN)
  • GALILEO Ready
  • A-GPS
  • UART, USB interface supported
  • 25.0 x 25.0 x 4.0 mm patch antenna
  • Wire-to-board connecter
  • RoHS compliant
  • Water proof IP67

Applications

  • Automotive
  • Personal/Portable Navigation (PDA)
  • Geographic Surveying
  • Sports and Recreation
  • Marine Navigation
  • Fleet Management
  • AVL and Location-Based Services
Electrical Characteristics
Chipset u-Blox ublox6
General Frequency L1 1575.42MHz GALILEO Open Service L1
  Channels, C/A code 50 channels, C/A code
Accuracy Autonomous 2.5 meters
DGPS Accuracy SBAS 2.0 meters
Acquisition Rate Reacquisition < 1 sec, typical
  Cold start 29 sec, typical
  Warm start 29 sec, typical
  Hot start
Sensitivity tracking -160dBm
  Acquisition/Reacquisition -147dBm
Dynamic Condition Altitude 50,000 meters max.
  Velocity 500 meters /sec max.
Power Main Power 5.0 VDC +- 0.5%
  Supply current
  tracking 75 mA
  Acquisition 95 mA
Serial Port Electrical interface UART
  Protocols
  NMEA-0183 8 data bits, no parity, 1 stop bits 4800 bps GSV,RMC,GSA,GGA,VTG,ZDA
  UBX (ublox proprietary) 57600 bps
  Baud Rate 4800/9600/19200/115200
Environmental Characteristics
Temperature Operating range -40°C to + 85°C
Mechanical dimensions Weight: L x W x H 60mm(Dia.) x 45mm(H)
65grams (w/o cable & connector).
Interface I/O connector UART RS232
CABLE UL2464/26Awg -0.5M-PS2(M) or 5M-M12(F) or ----
Base mounting Bulkhead mount with 0.8 inch threaded wing nut (standard accessory) FB6 2.5mm SUS L-Mounting
Water Proof IP67
Color: Standard in ivory white, other colours available upon request.
All specifications are subject to change without notice
SUS L-Mounting
Madel : FB-6
Size :
Standard :
 Optional Cable :
5M 10M 15M

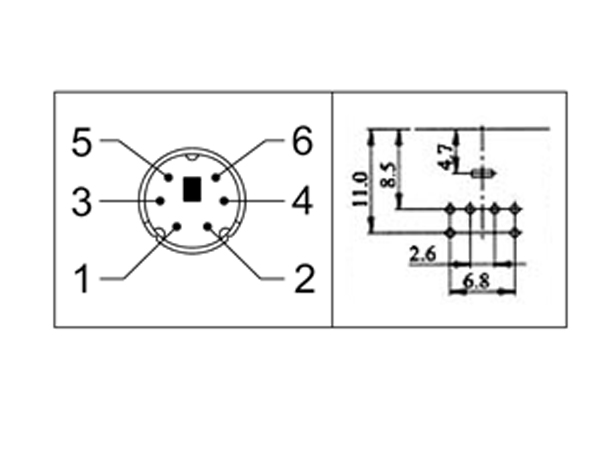

Pin Assignment of standard PS2 male Din Jack

Pin Signal
1 GND
2 +5V
3 N.C.(RS-232_Rx on demand)
4 TTL_RX
5 N.C.(RS-232_Tx on demand)
6 TTL_TX

Optional RS232 Interface cable & Power cable:

Model : GM65A Model : GM65B Model : GM62C

Pin Assignment of D-SUB 9 PIN Female connector

GM62A
DB9(F) – RS232 & Power cable
GM62B
OPEN – RS232 & Power cable
GM62C
DB9
PIN1 N.C VCC 12~40V to 5V Red Vcc VCC 5V
PIN2 RS232-TX   Green RS232-TX RS232-TX
PIN3 RS232-RX   White or Blue RS232-RX RS232-RX
PIN4 N.C.   Yellow TTL - TX N.C.
PIN5 GND GDN Orange TTL - RX GND
PIN6 N.C.   Black GND N.C.
PIN7 N.C.   Shielded wire GND N.C.
PIN8 N.C.       N.C.
PIN9 N.C.       N.C.
