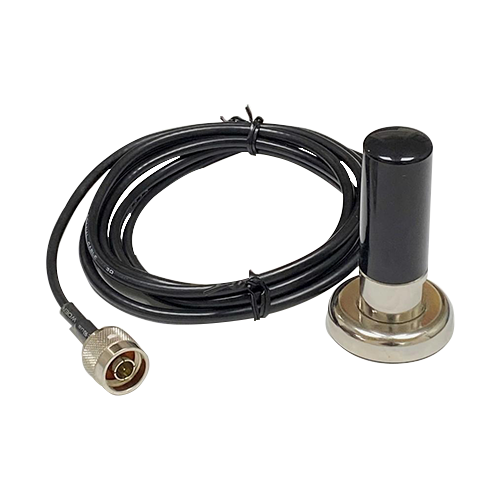

MA-1600
  • Product Description
  • Product Specification

1.Electrica Properties

Parameter Description
Frequency Band 1550~1650Mhz ON 240x320mm GND Test
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

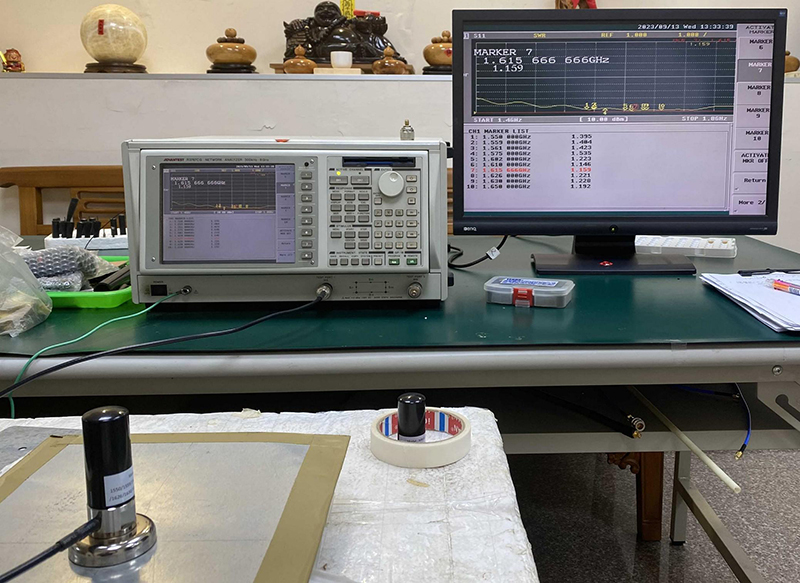

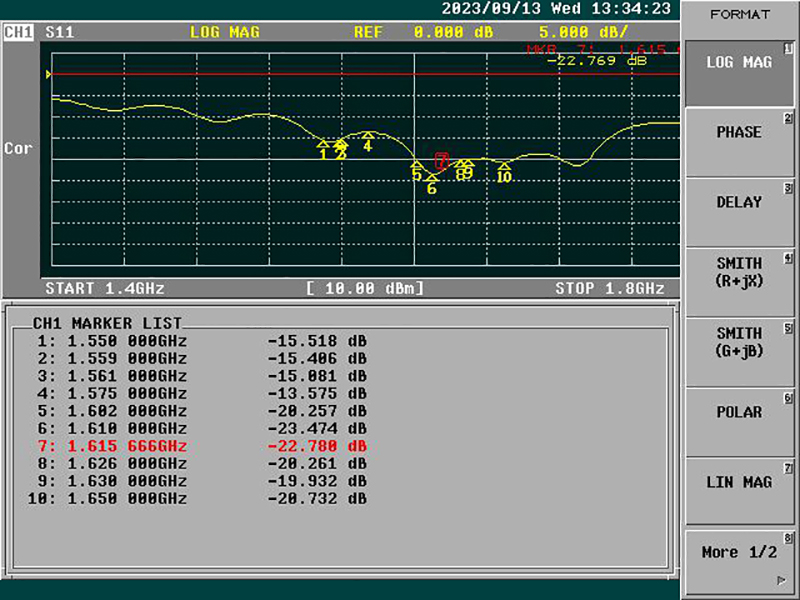

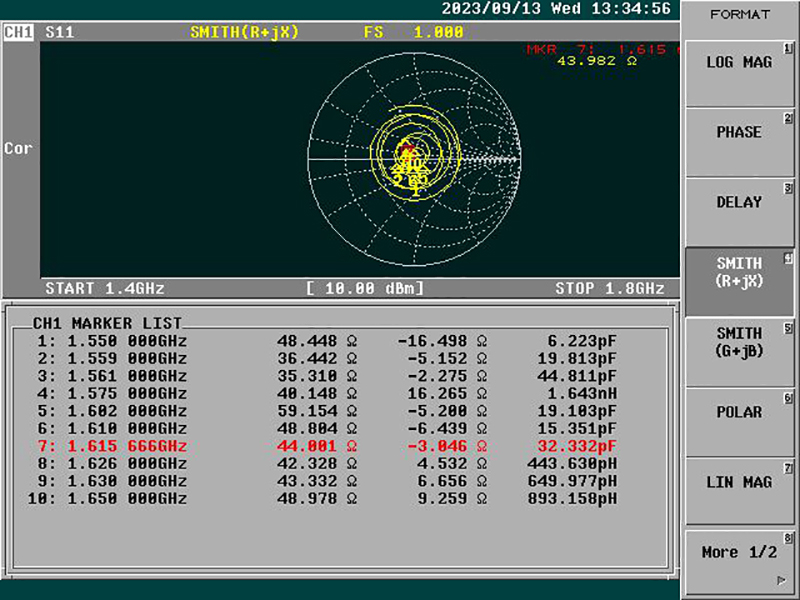

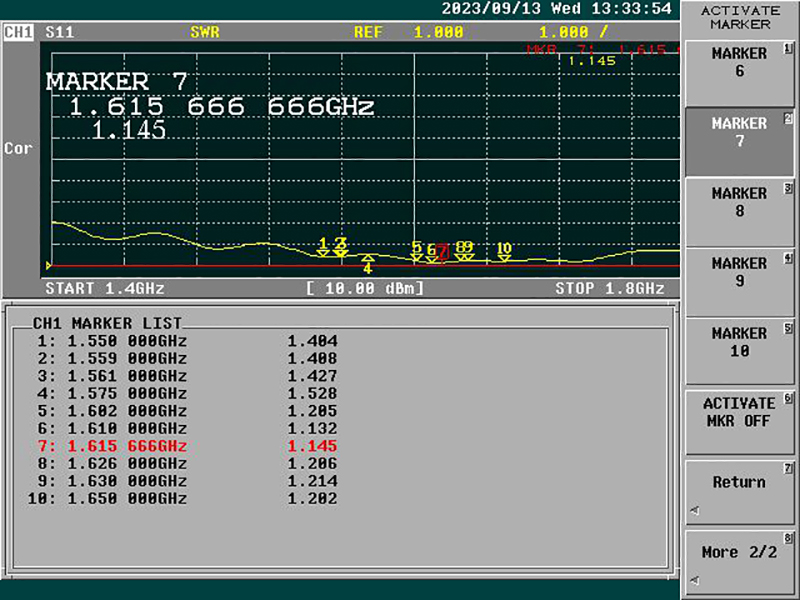

Return Loss Please See Data-1
V.S.W.R 2.0:1
Antenna Peak Gain 3 dBi


2. Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type SUS430 Magnet Base mounting
Connector Type SMA(M) or TNC(M) or N(M) or other
Antenna Dimensions 55.0 mm ± 3 (without Magnet base mounting)
Antenna Cable Total Length CFD200-2000 mm ± 30 or other
Antenna Color Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C
Waterproof IPX7





3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1550 MHz -5.20 -7.96 -3.36 46.17 2.95 -3.36
1559 MHz -5.24 -7.96 -3.38 45.96 2.14 -3.38
1561 MHz -5.55 -7.94 -3.57 43.93 2.45 -3.57
1575 MHz -4.77 -7.26 -2.83 52.16 2.47 -2.83
1602 MHz -5.10 -7.90 -3.27 47.13 3.06 -3.27
1610 MHz -5.20 -7.70 -3.26 47.19 2.00 -3.26
1616 MHz -5.04 -7.94 -3.24 47.41 2.07 -3.24
1620 MHz -5.24 -7.91 -3.37 46.07 2.56 -3.37
1626 MHz -5.37 -7.83 -3.42 45.49 2.25 -3.42
1630 MHz -5.09 -7.69 -3.18 48.04 2.12 -3.18
1650 MHz -5.05 -7.69 -3.16 48.25 3.04 -3.16
1700 MHz -5.23 -7.78 -3.31 46.71 2.88 -3.31
1800 MHz -6.80 -9.81 -5.04 31.36 0.76 -5.04

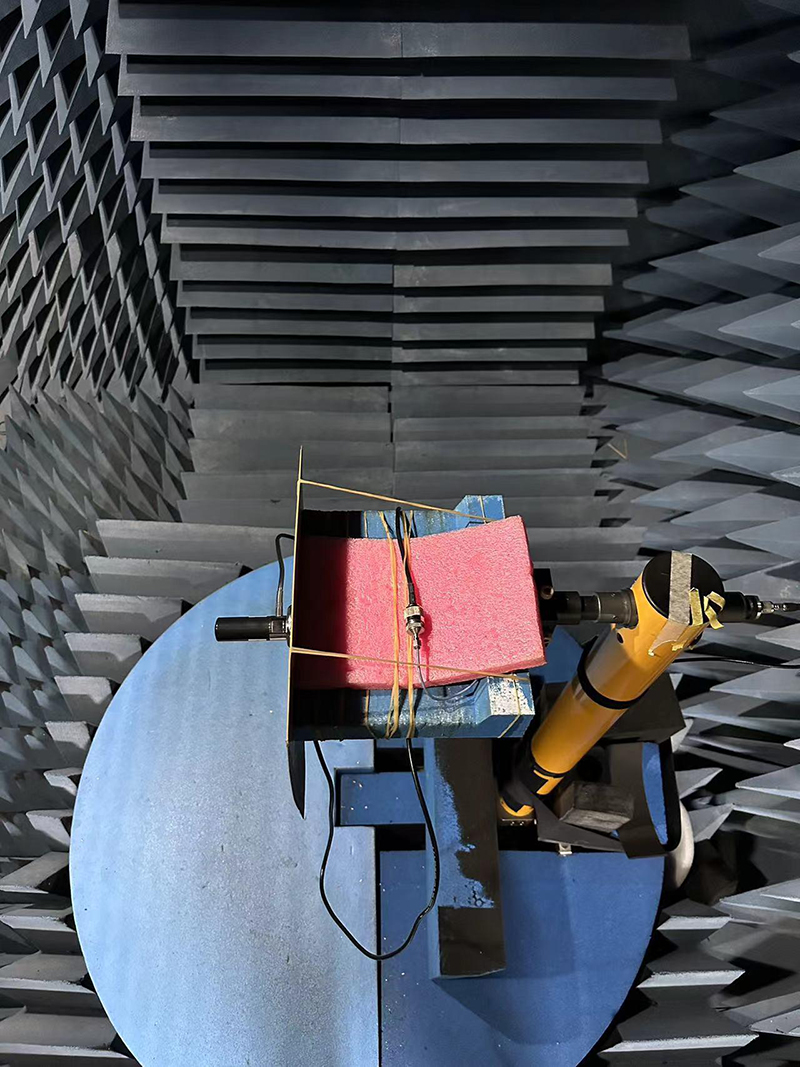

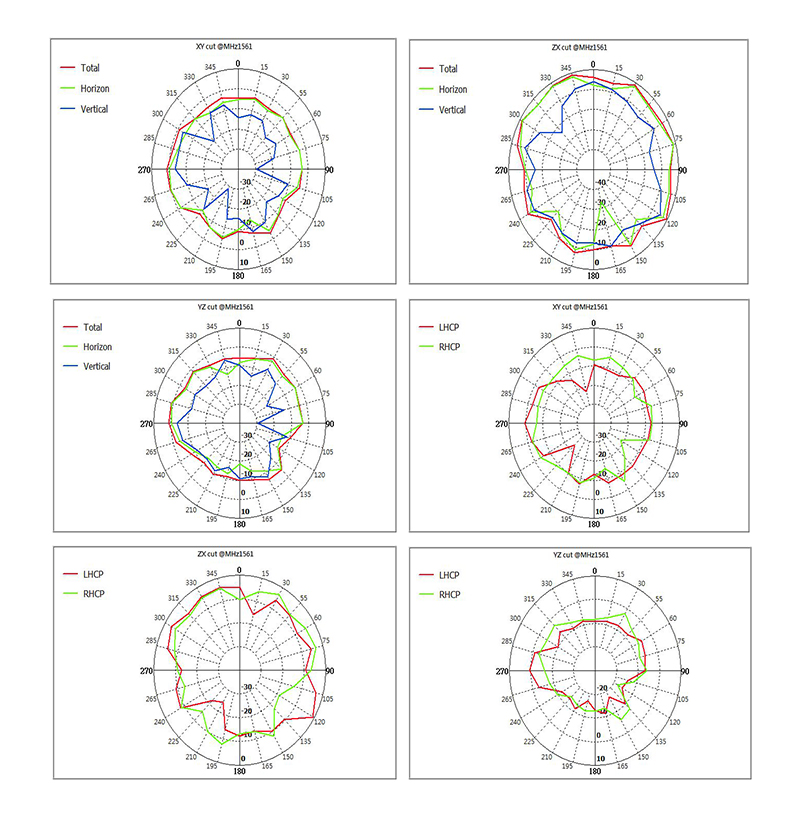

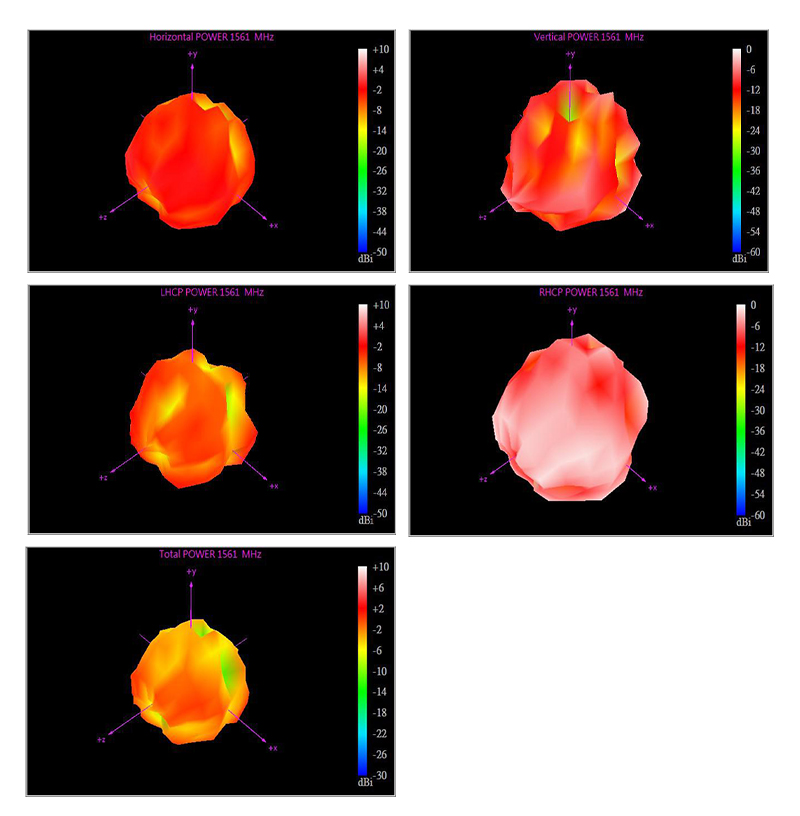

1561Mhz:

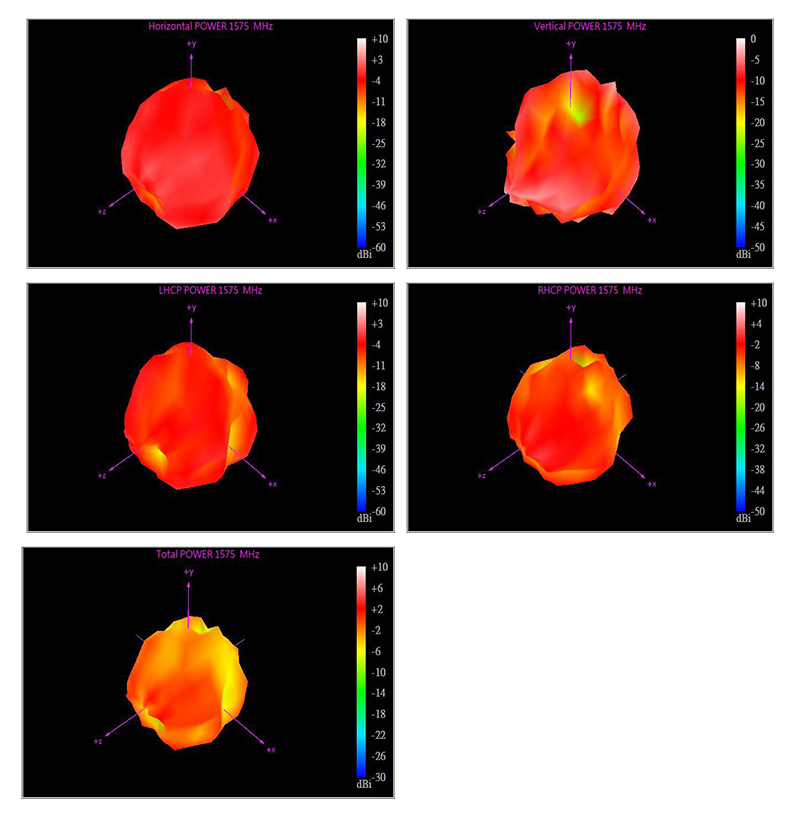

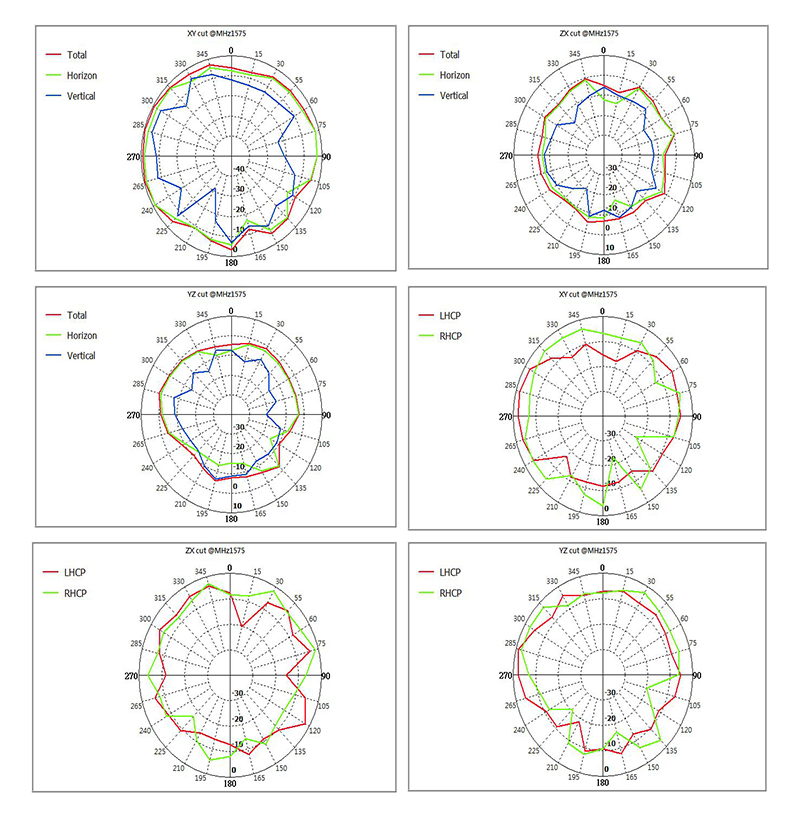

1575Mhz:

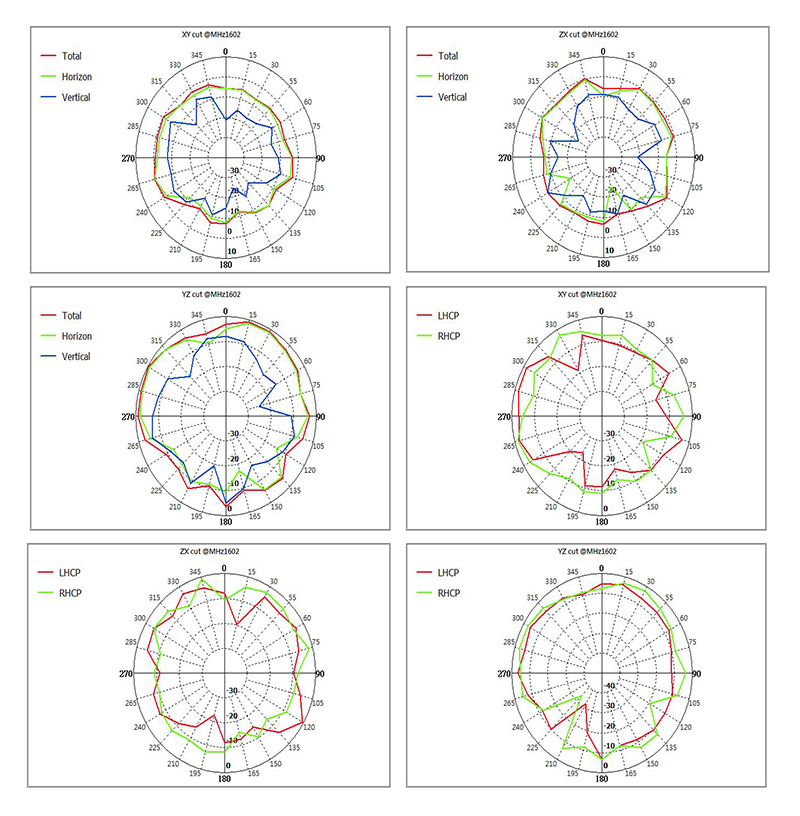

1602Mhz:


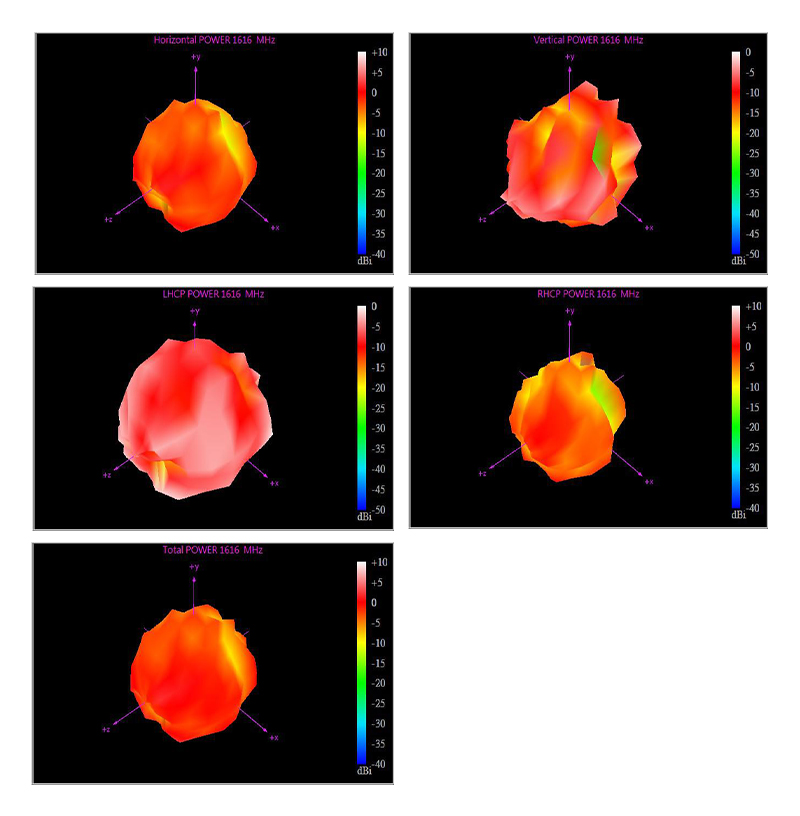

1616Mhz:


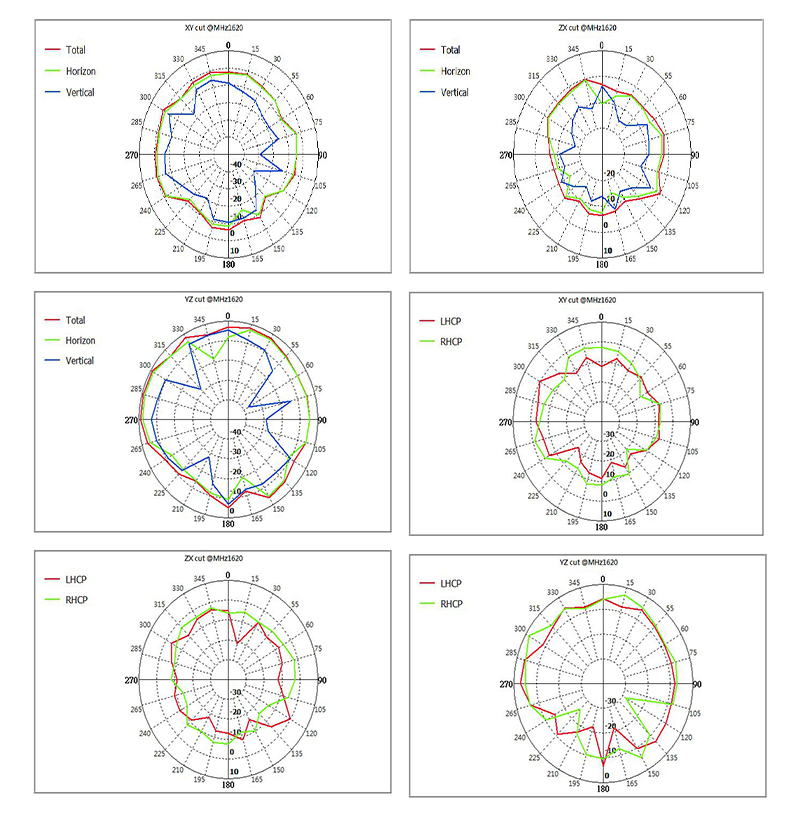

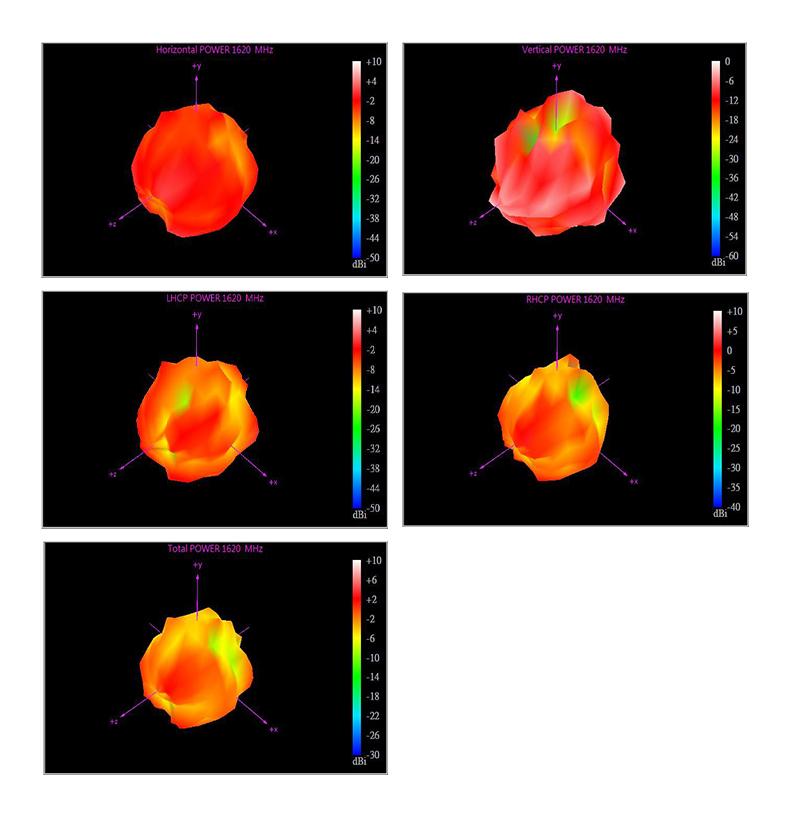

1620Mhz:

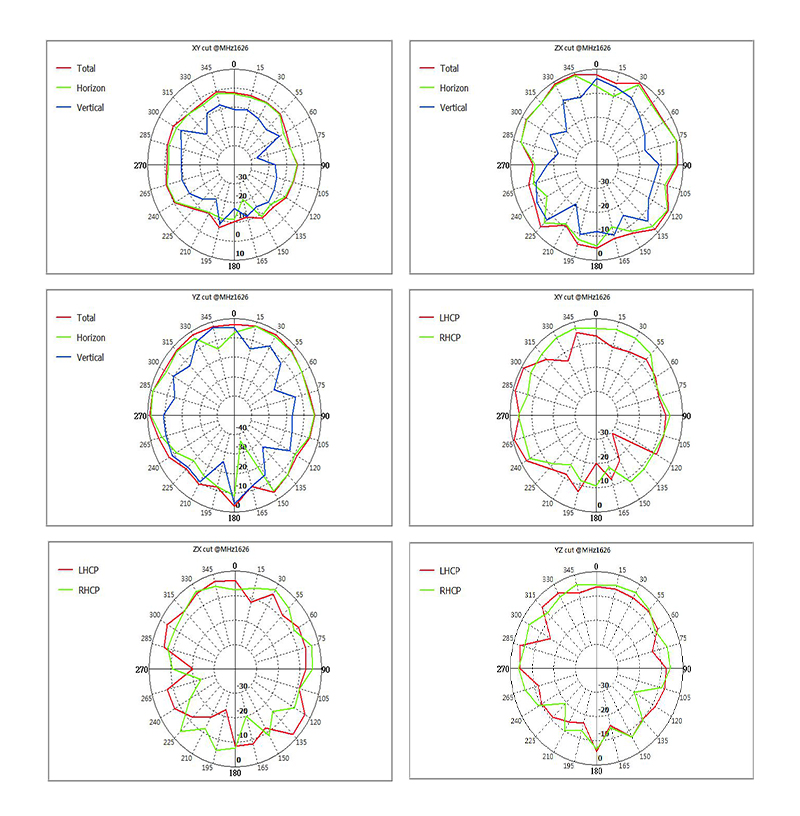

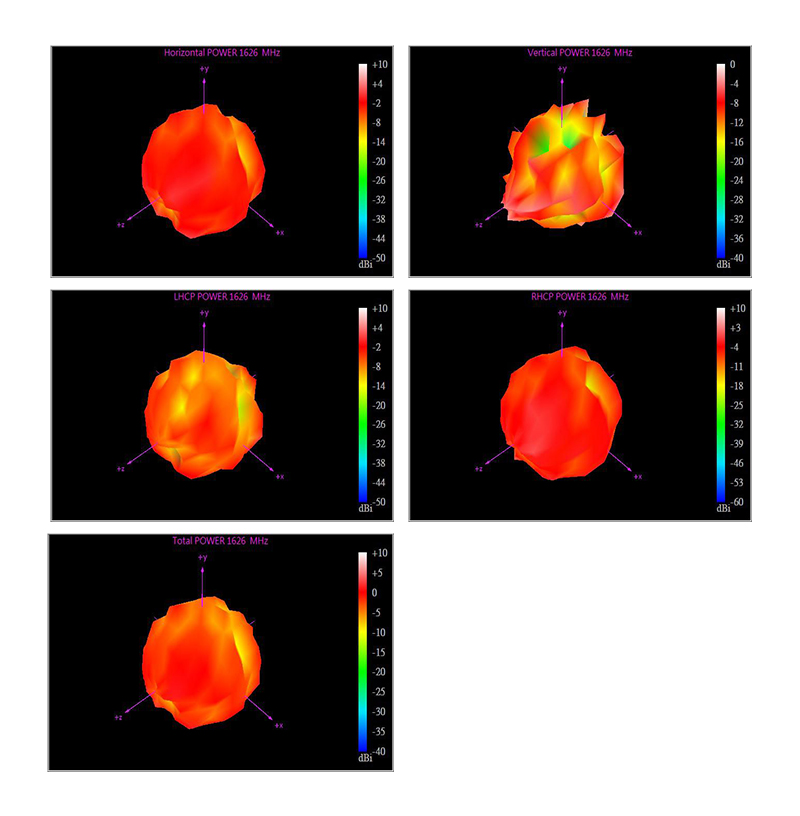

1626Mhz:
