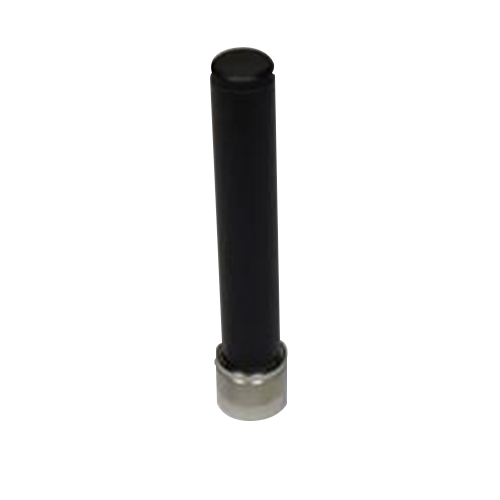

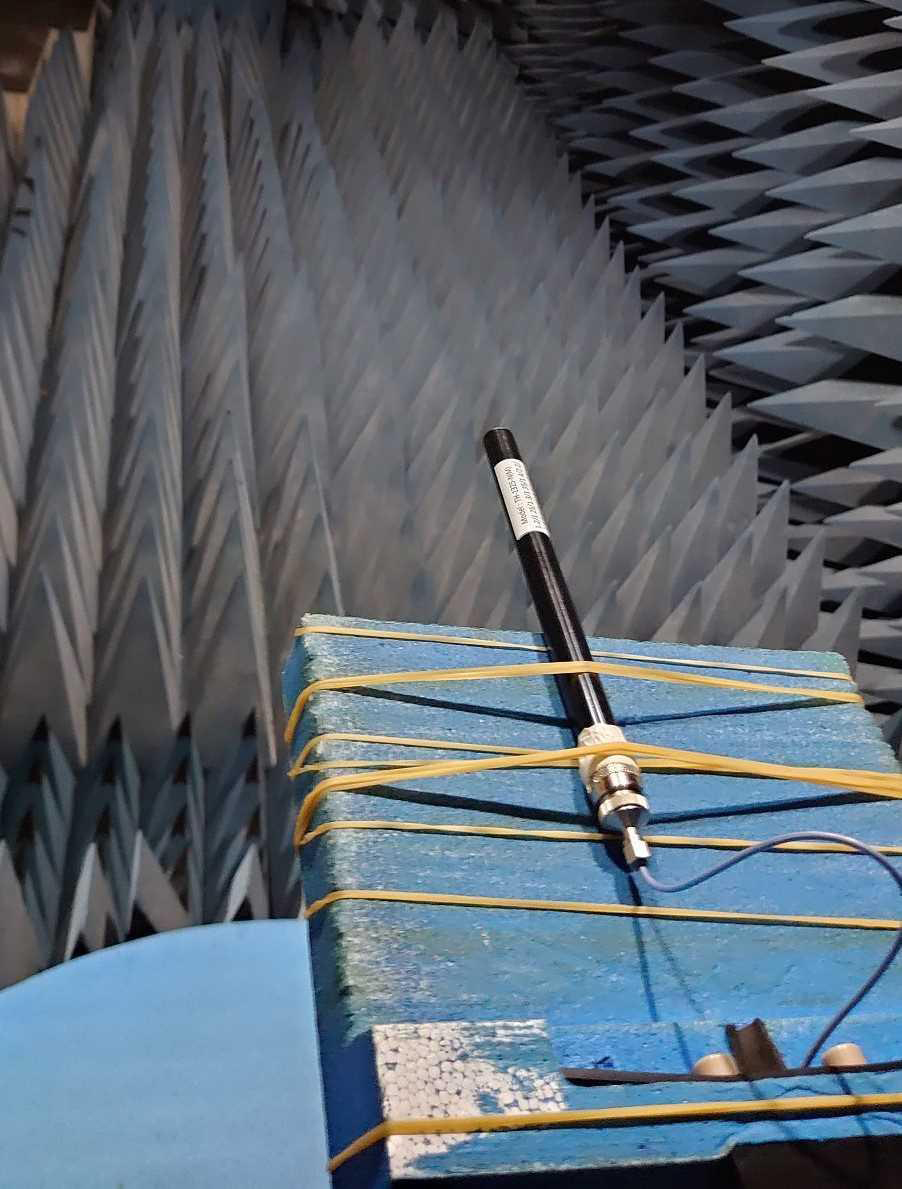

TH-1325 2.4Ghz Antenna
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH1325-N(M)


1.1 Electrical Properties

Parameter Description
Frequency Band 1250~1350 & 2200~2600MHz
Nominal Impedance 50 ohm
Polarization Vertical

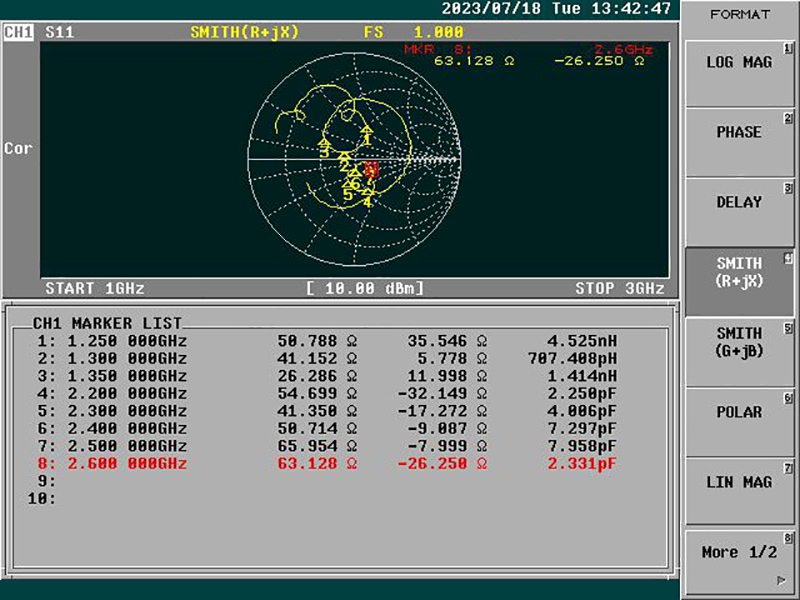

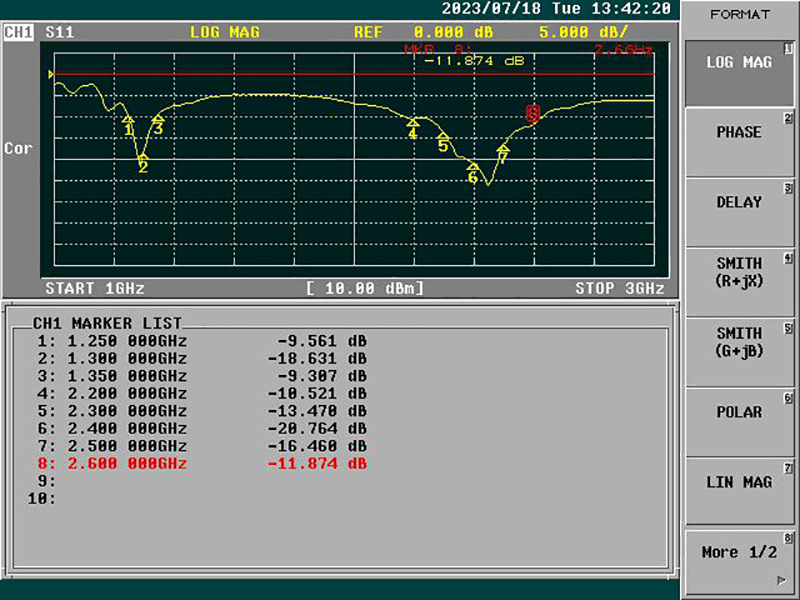

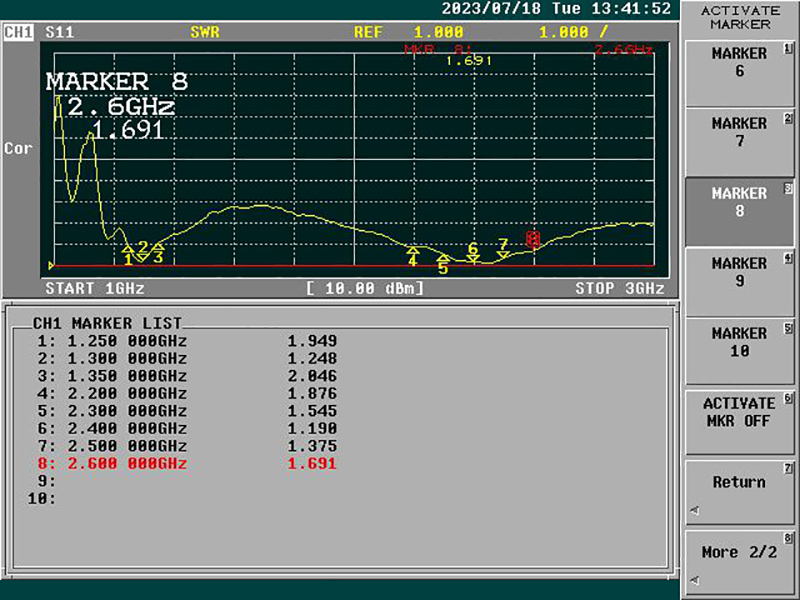

V.S.W.R 2.0:1


1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type N connector (Male)

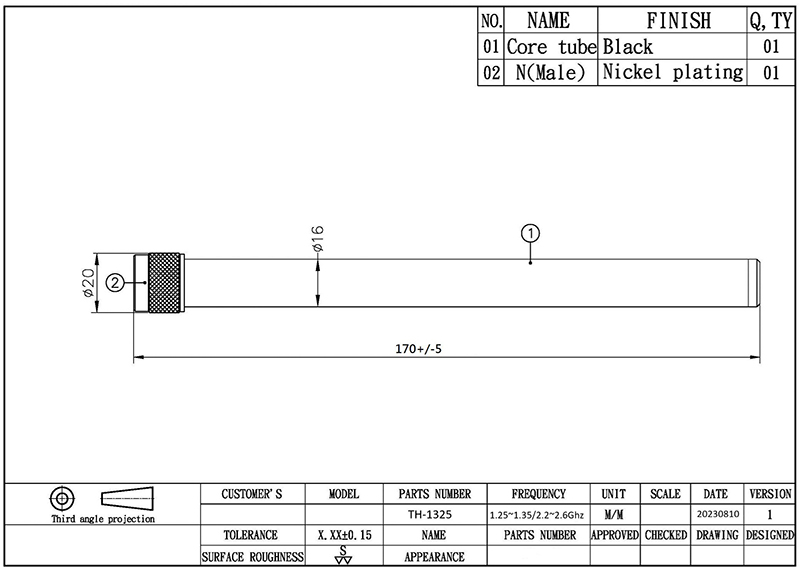

Antenna Dimensions 170mm ±5
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C






3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1200 MHz -6.37 -6.30 -3.32 46.52 0.52 -3.32
1250 MHz -4.50 -6.31 -2.30 58.87 2.17 -2.30
1300 MHz -3.75 -5.97 -1.71 67.40 2.34 -1.71
1350 MHz -3.81 -6.07 -1.79 66.29 2.42 -1.79
1400 MHz -5.03 -7.54 -3.09 49.05 0.85 -3.09
2200 MHz -4.20 -6.91 -2.33 58.41 2.57 -2.33
2300 MHz -3.32 -5.73 -1.35 73.24 3.29 -1.35
2400 MHz -4.67 -6.38 -2.43 57.13 2.01 -2.43
2450 MHz -3.55 -6.21 -1.67 68.03 3.73 -1.67
2500 MHz -4.67 -7.08 -2.70 53.70 2.53 -2.70
2600 MHz -6.39 -8.36 -4.25 37.57 1.32 -4.25

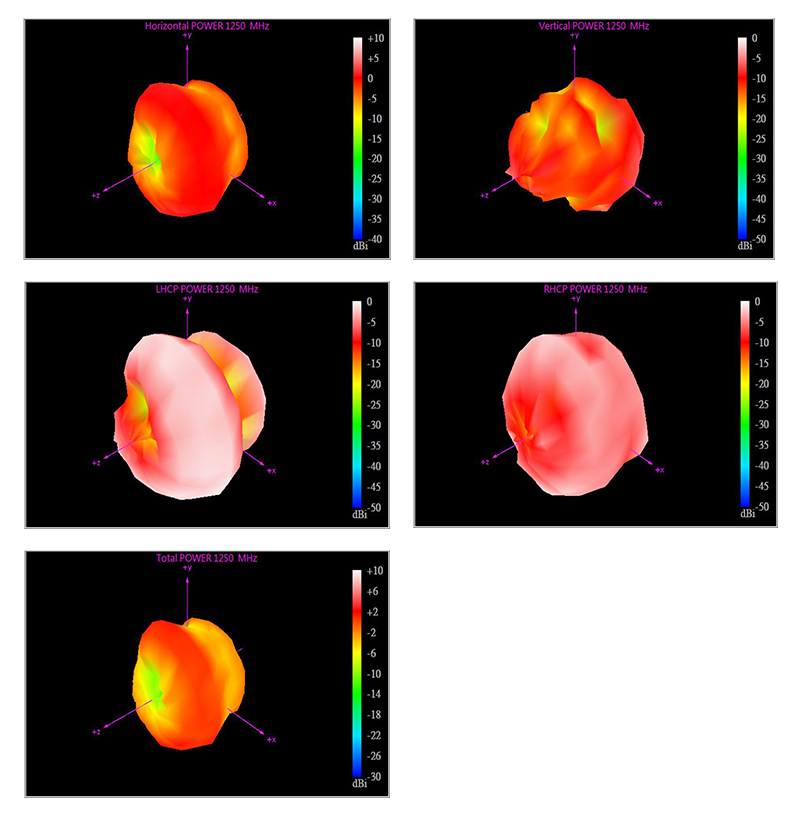

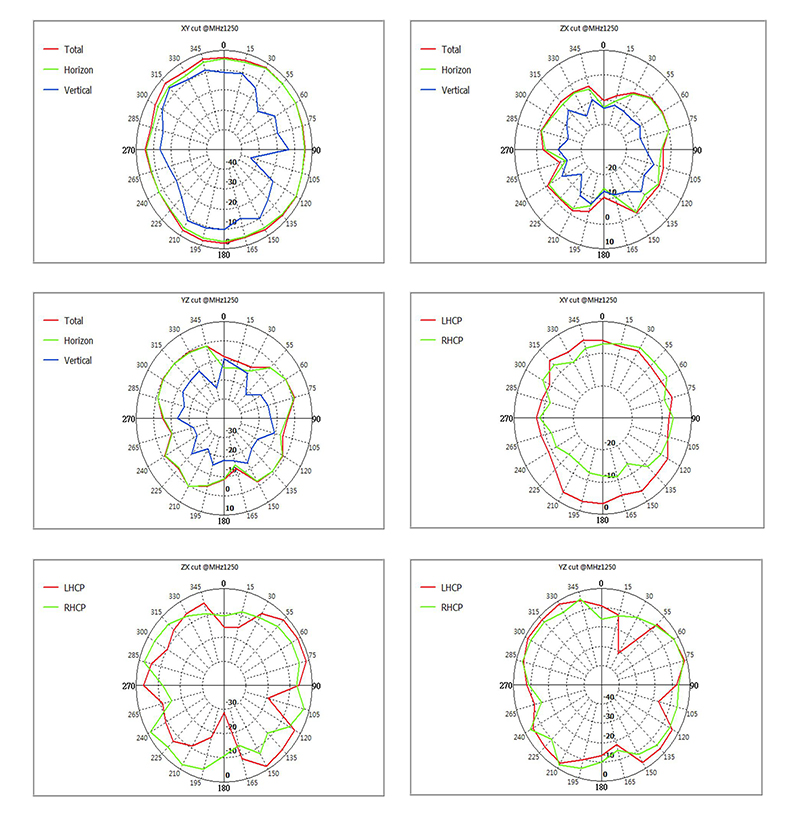

1250 MHz:

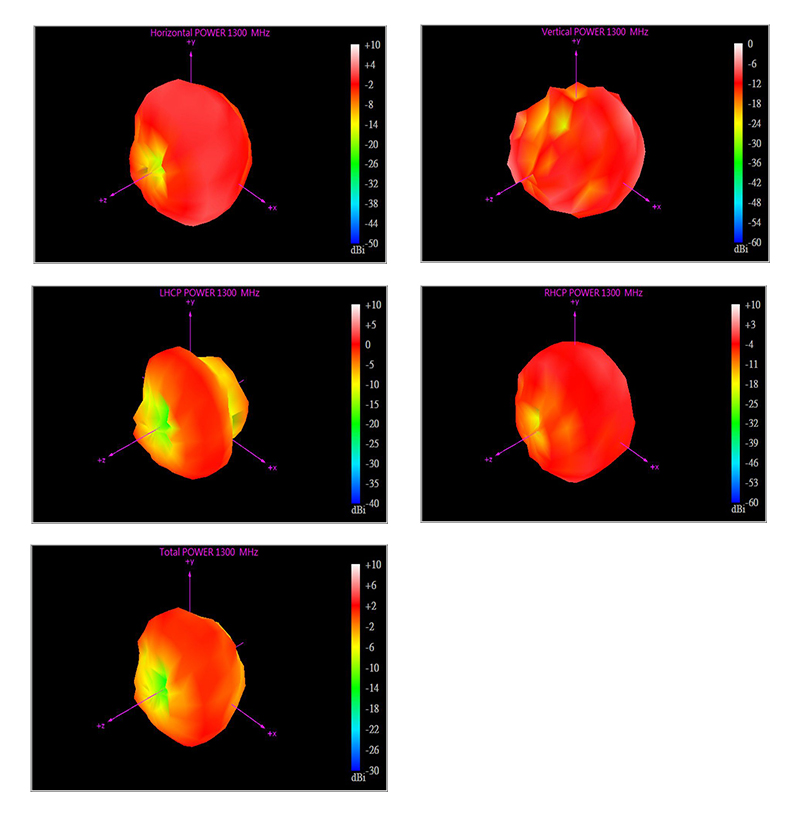

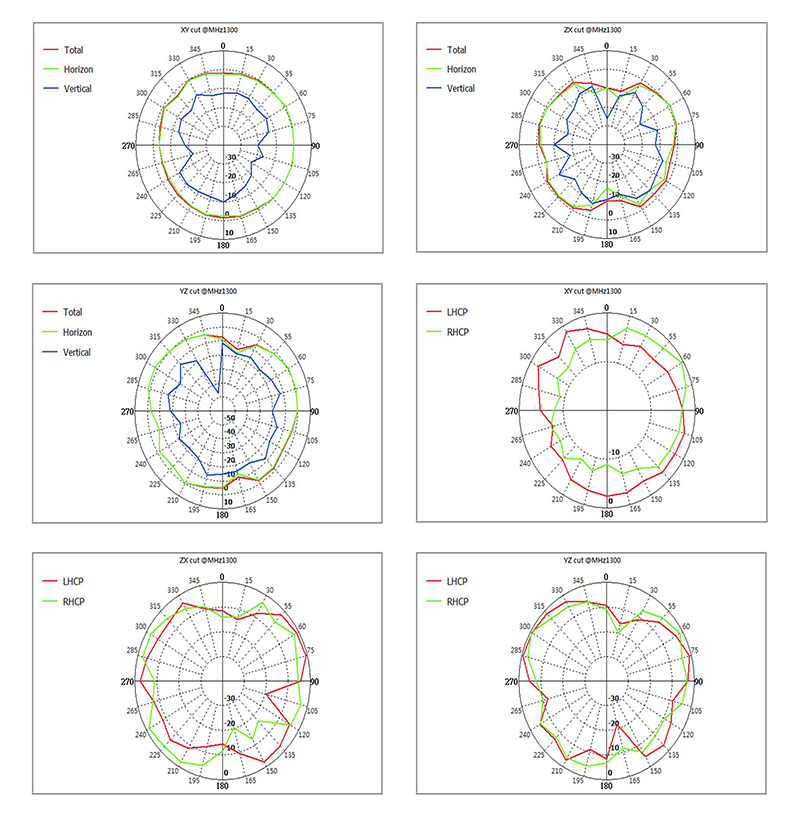

1300 MHz:

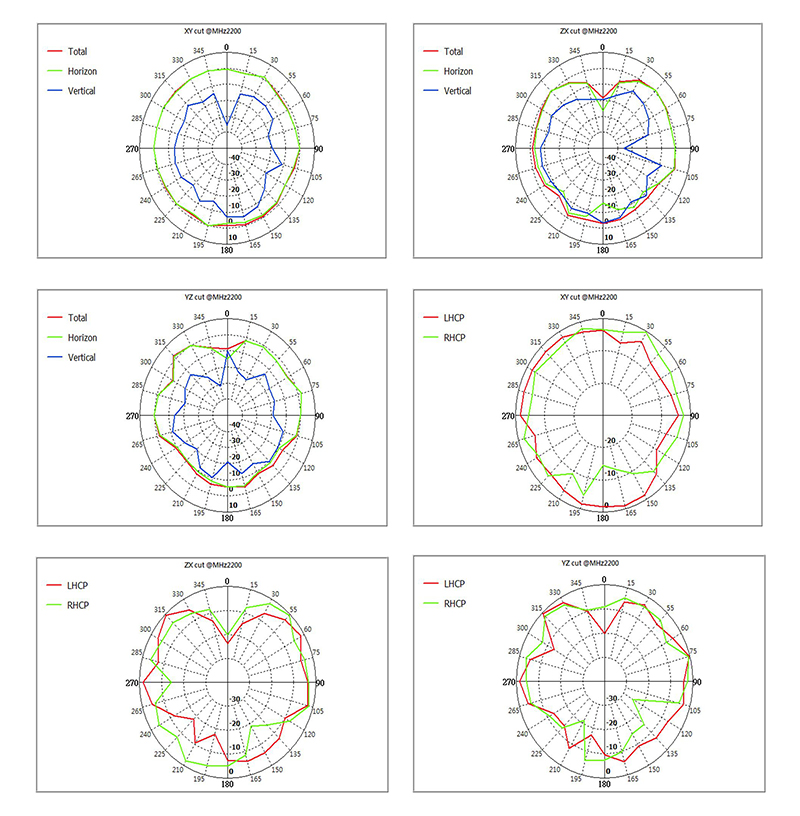

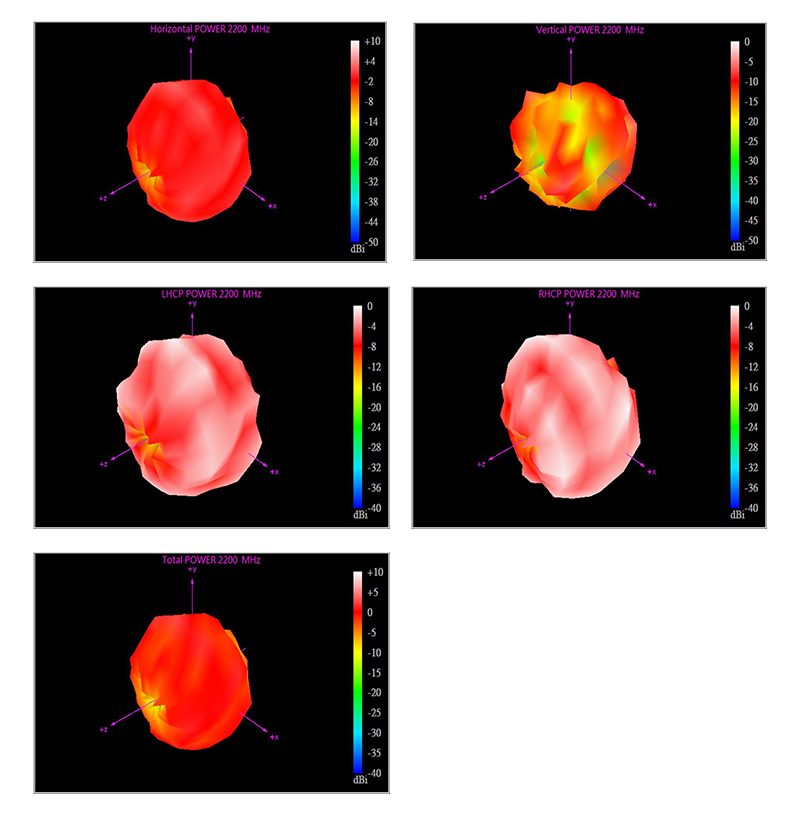

2200 MHz:

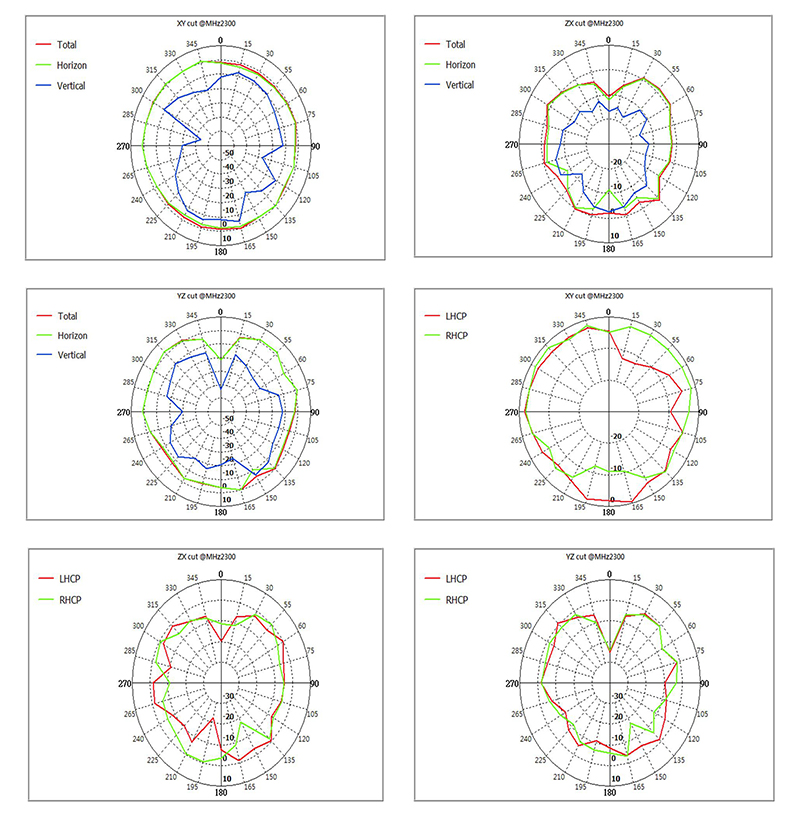

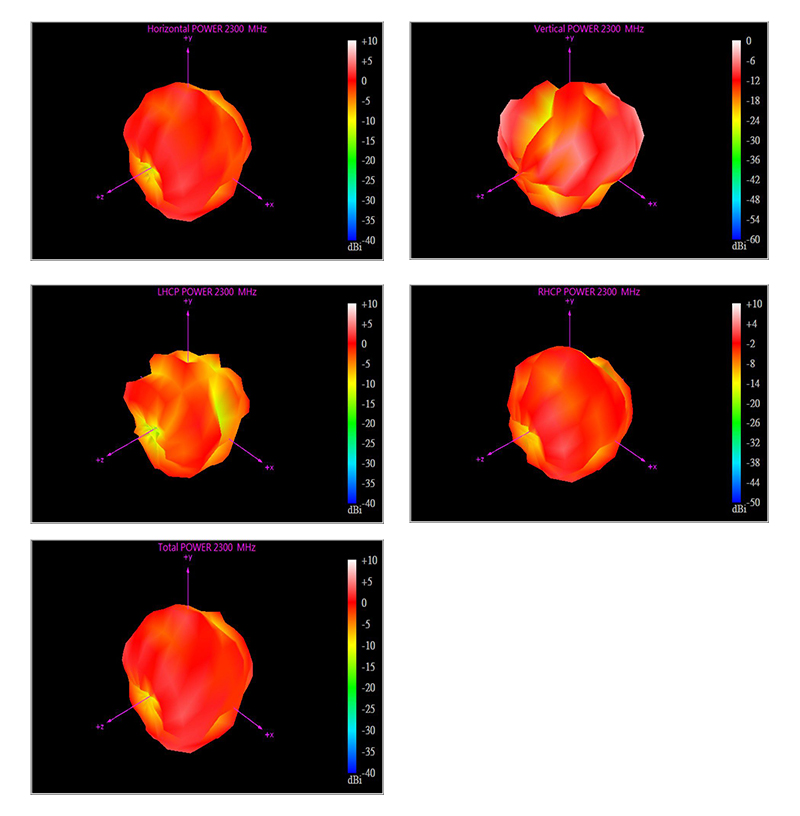

2300 MHz:

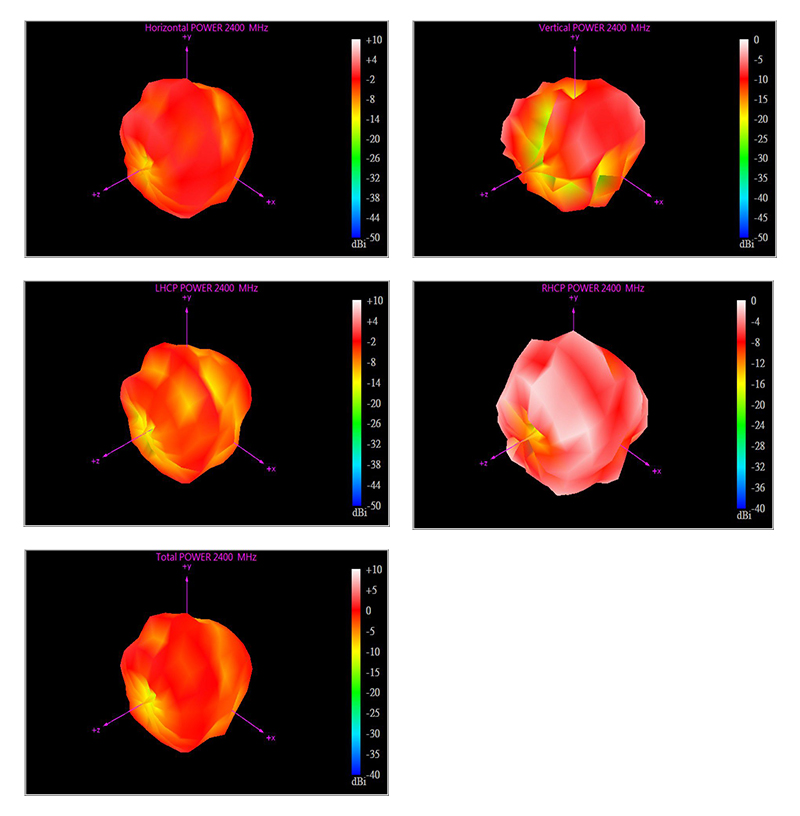

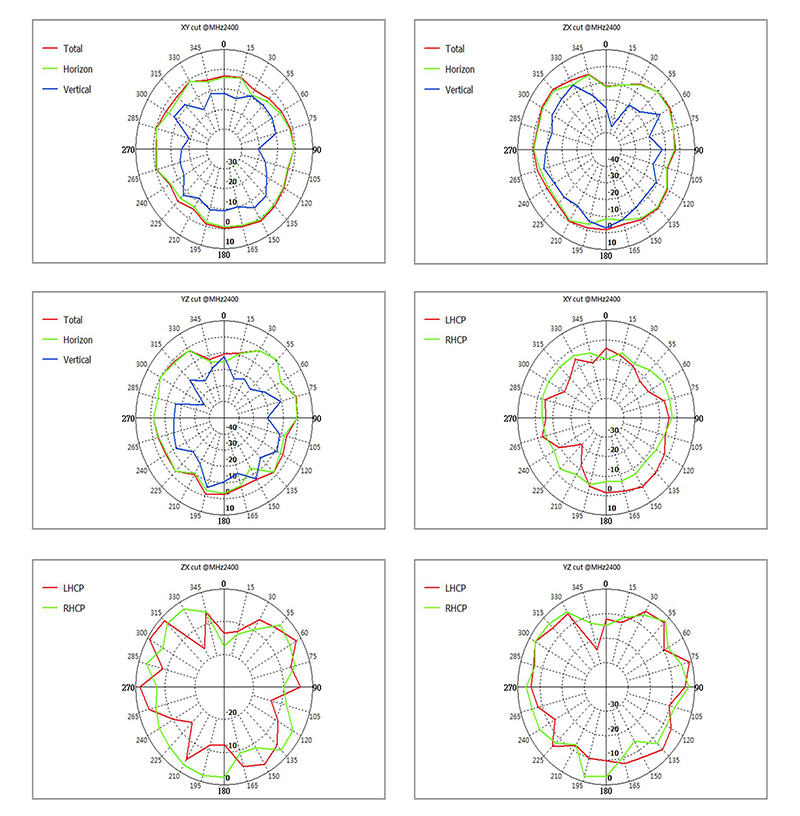

2400 MHz:

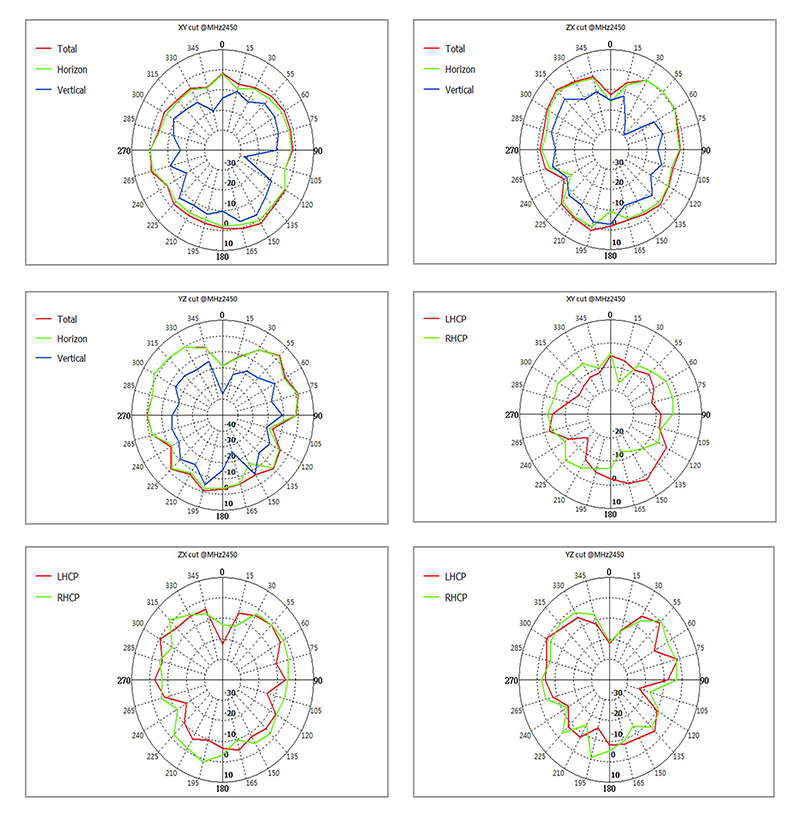

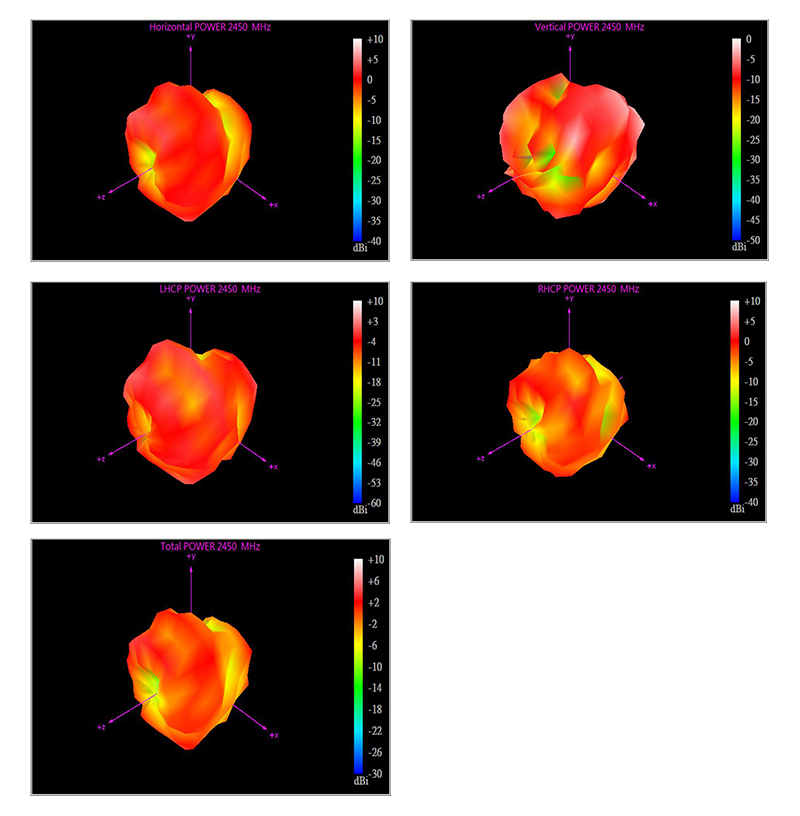

2450 MHz:

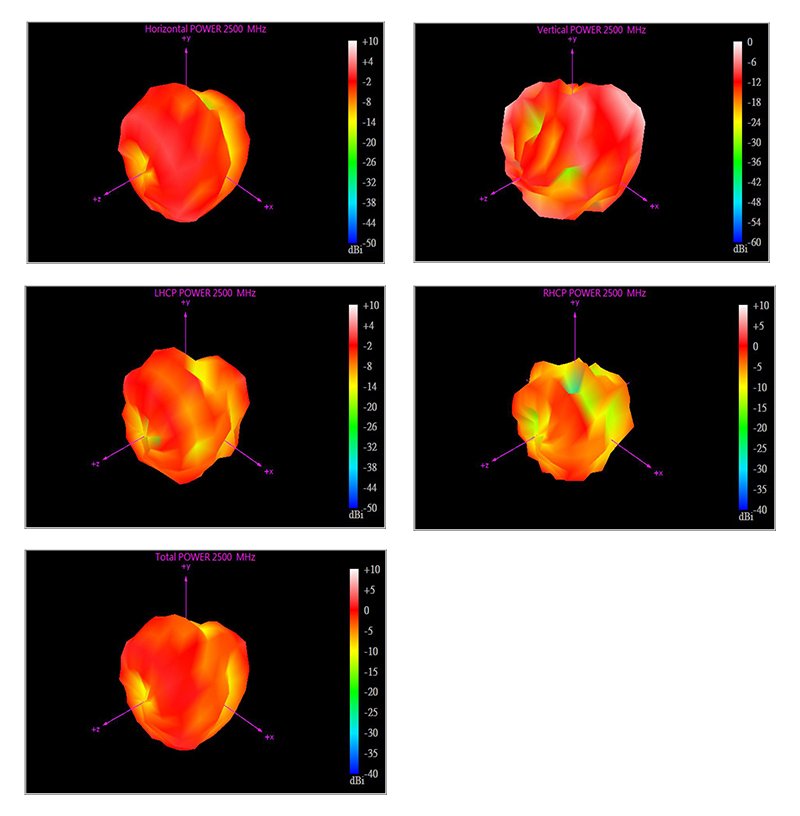

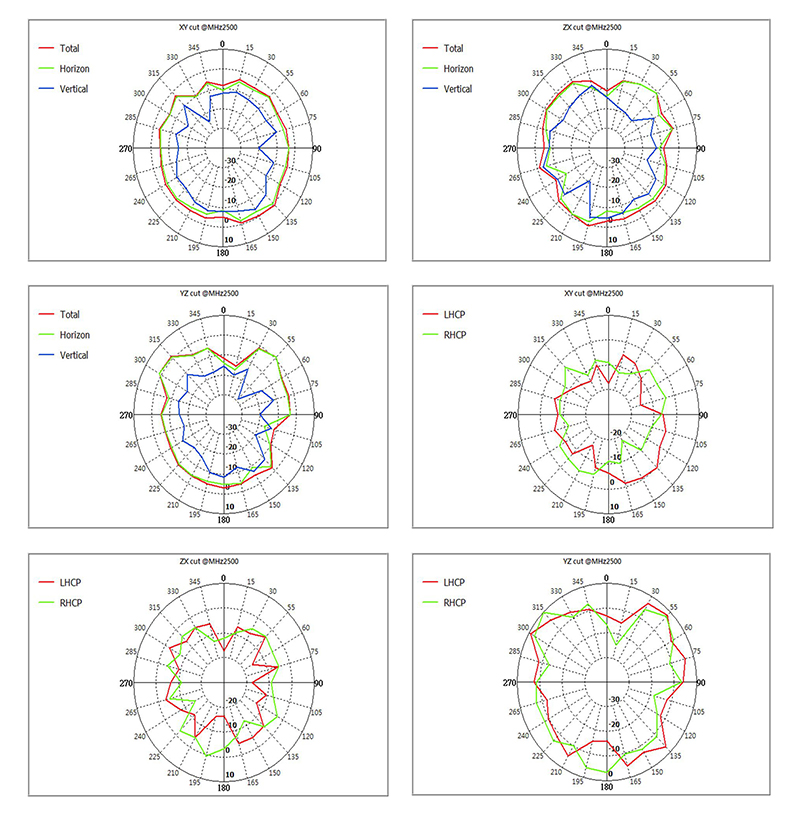

2500 MHz:
