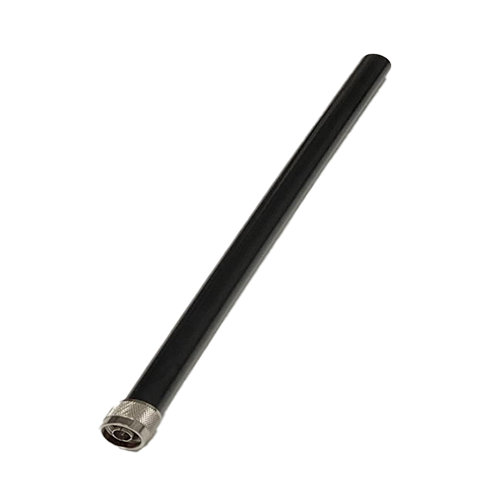

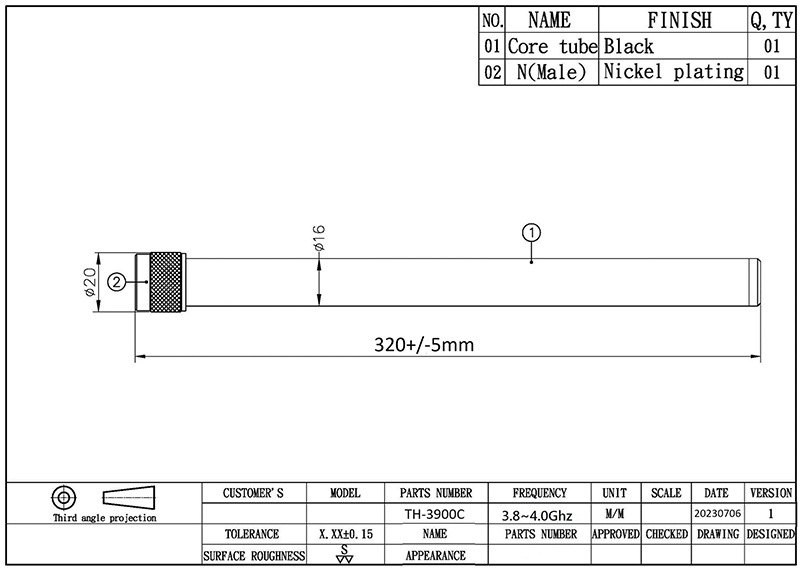

TH-3900C 3.9Ghz Antenna
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH3900C-N(M)


1.1 Electrical Properties

Parameter Description
Frequency Band 3800~4000MHz

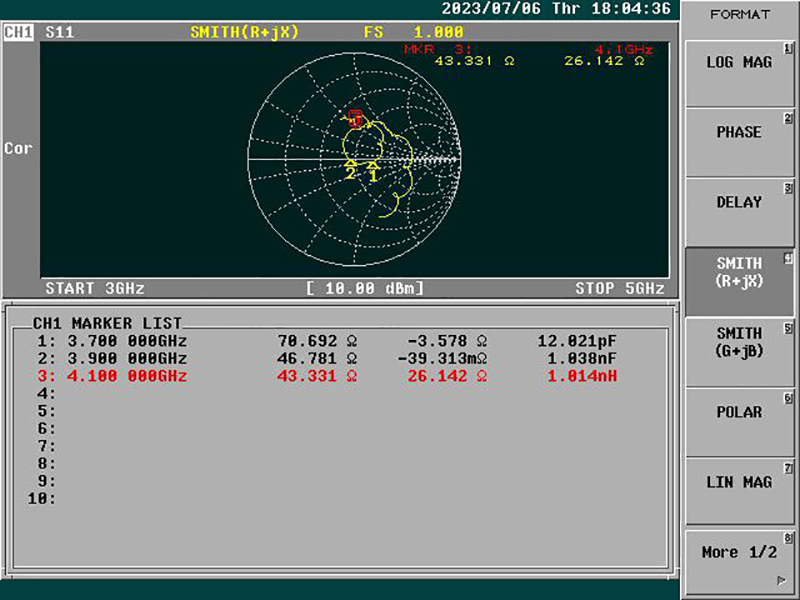

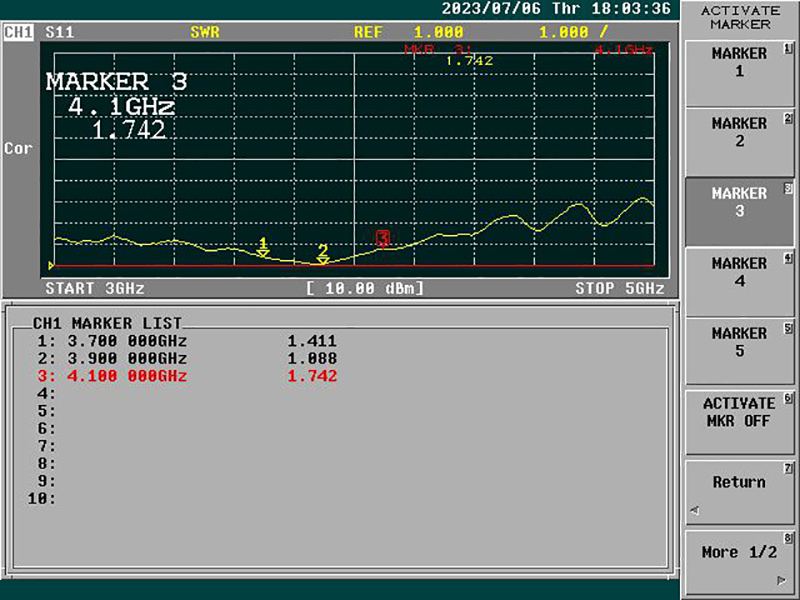

Nominal Impedance 50 ohm
Polarization Vertical

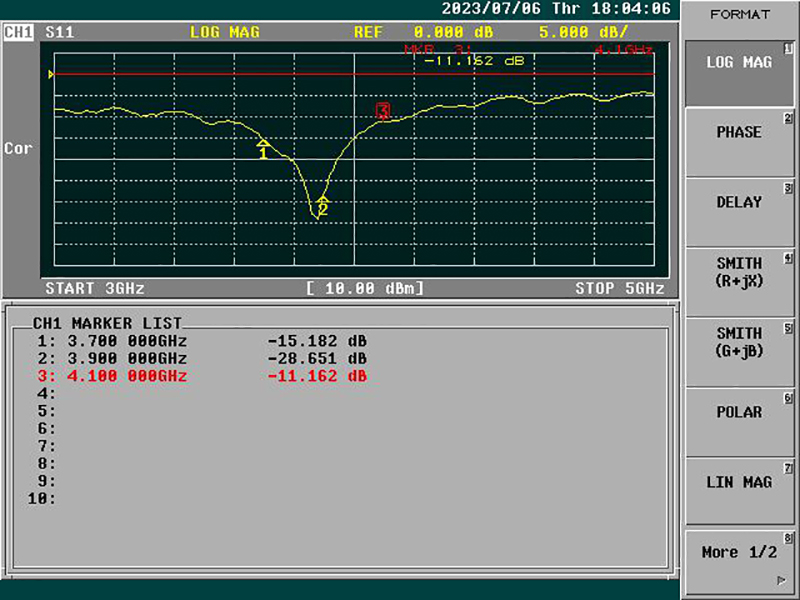

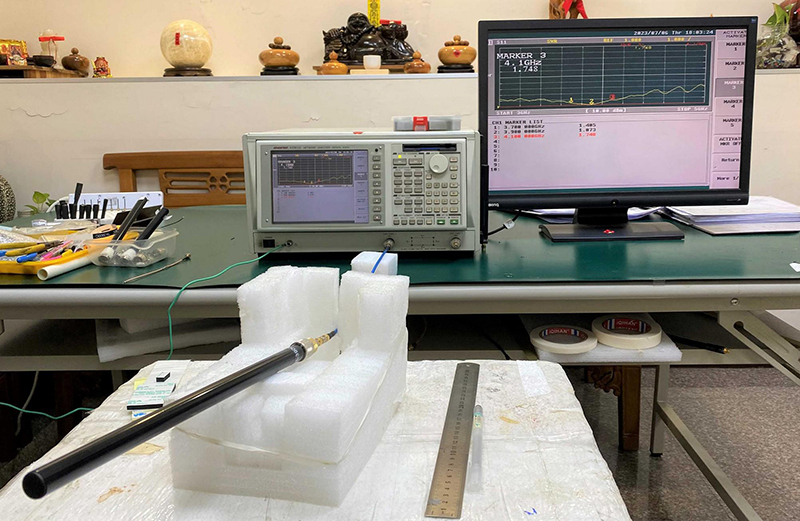

V.S.W.R 2.0:1
Gain 7dbi
Power 20W


1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type N connector (Male)
Antenna Dimensions 320mm ±5
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C

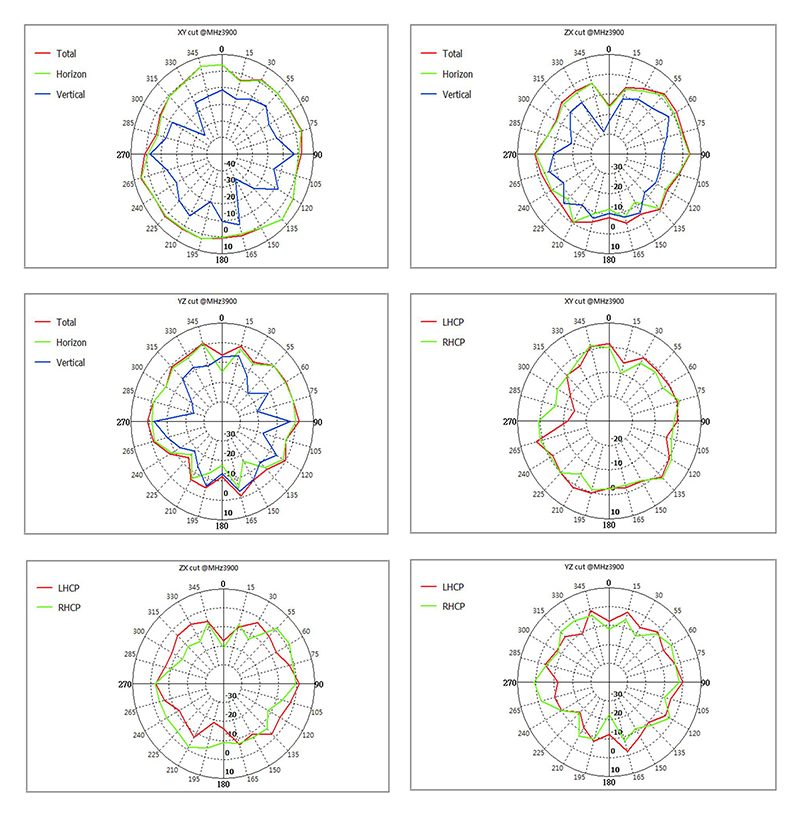

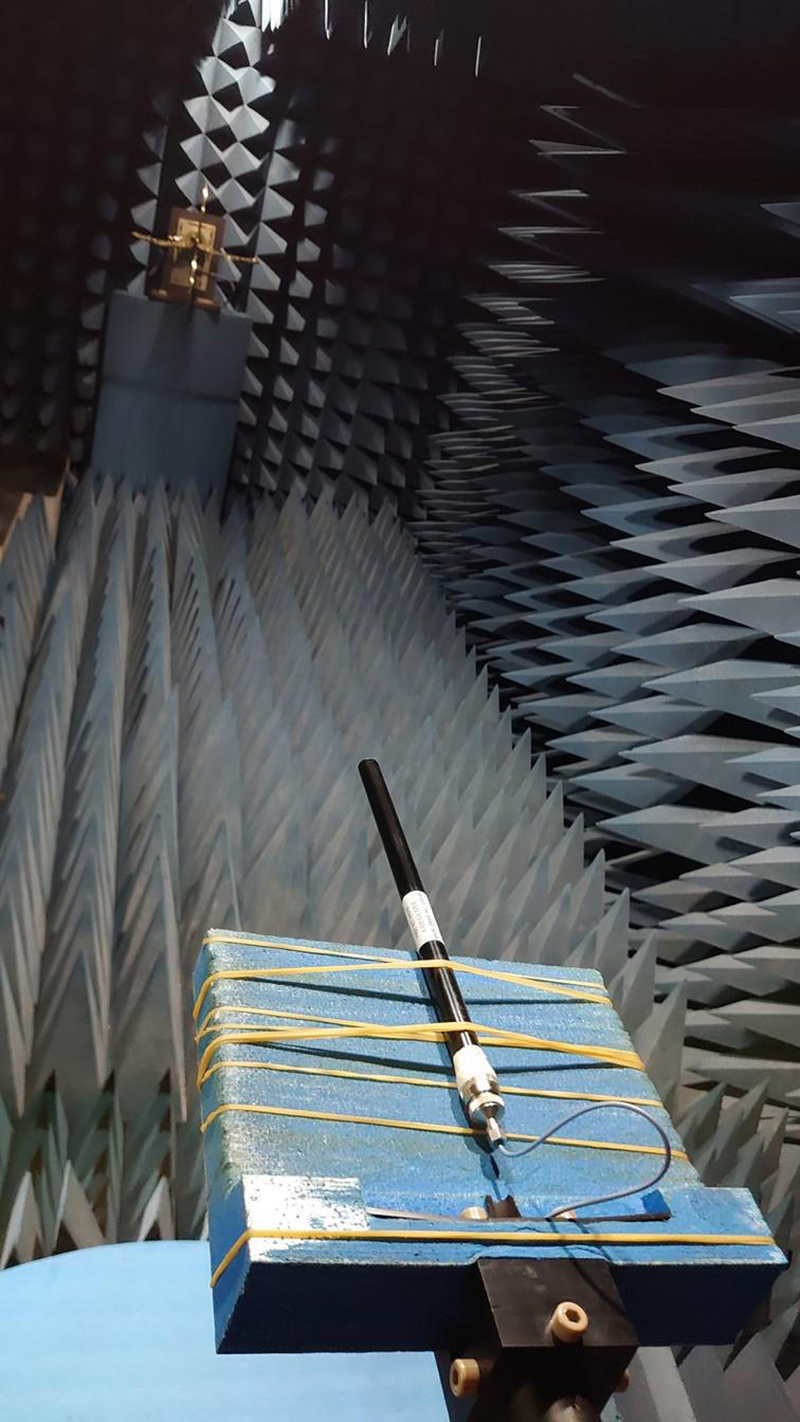

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot.Rad.Pwr.
(dBm)
3700 MHz -4.57 -4.23 -1.39 72.64 5.70 -1.39
3750 MHz -4.02 -3.99 -1.00 79.50 5.58 -1.00
3800 MHz -4.57 -4.31 -1.43 71.99 6.71 -1.43
3850 MHz -3.55 -4.67 -1.06 78.27 7.13 -1.06
3900 MHz -4.17 -5.20 -1.65 68.46 6.63 -1.65
4000 MHz -6.18 -6.73 -3.44 45.33 4.54 -3.44
4100 MHz -6.20 -6.81 -3.48 44.83 4.07 -3.48

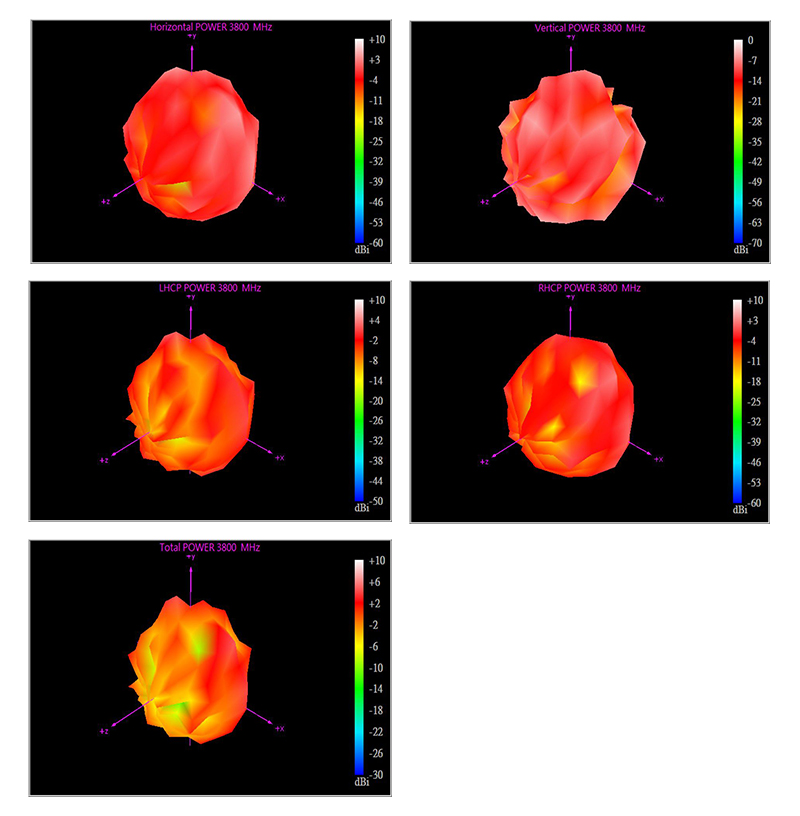

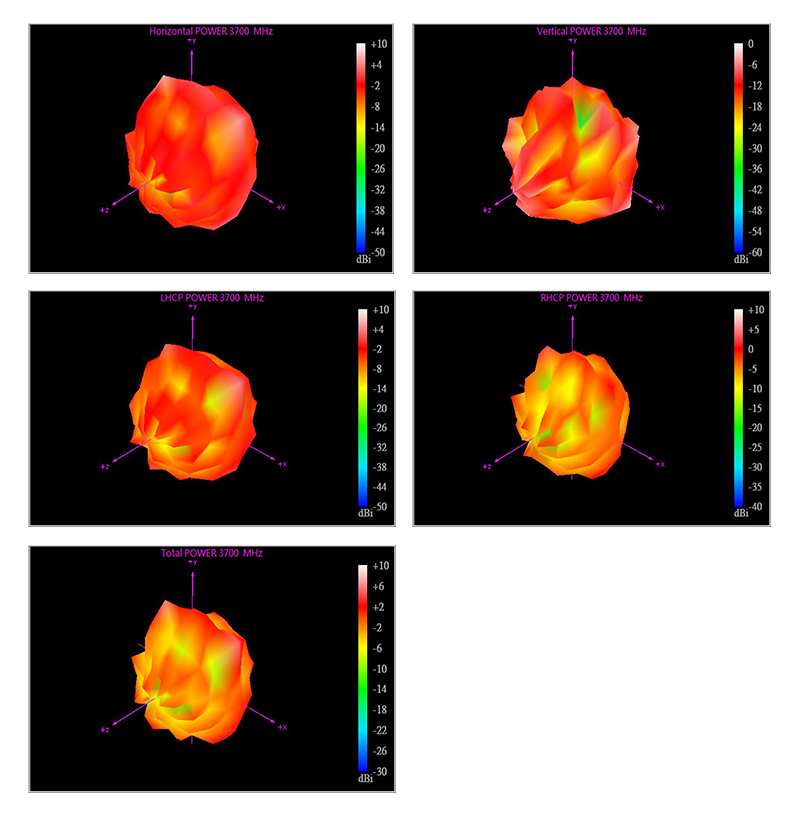

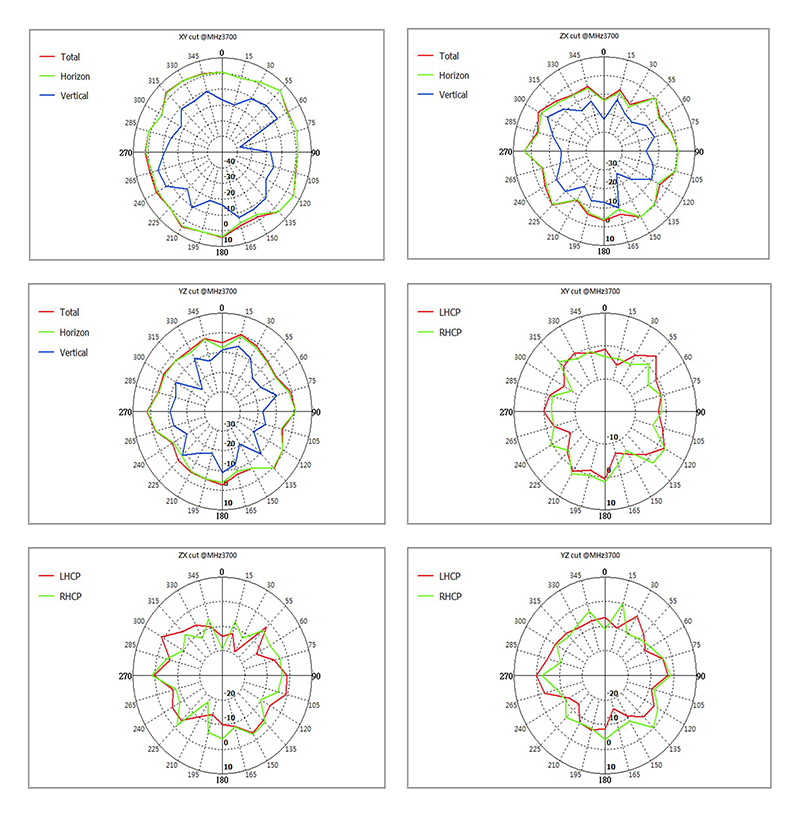

3700 MHz:

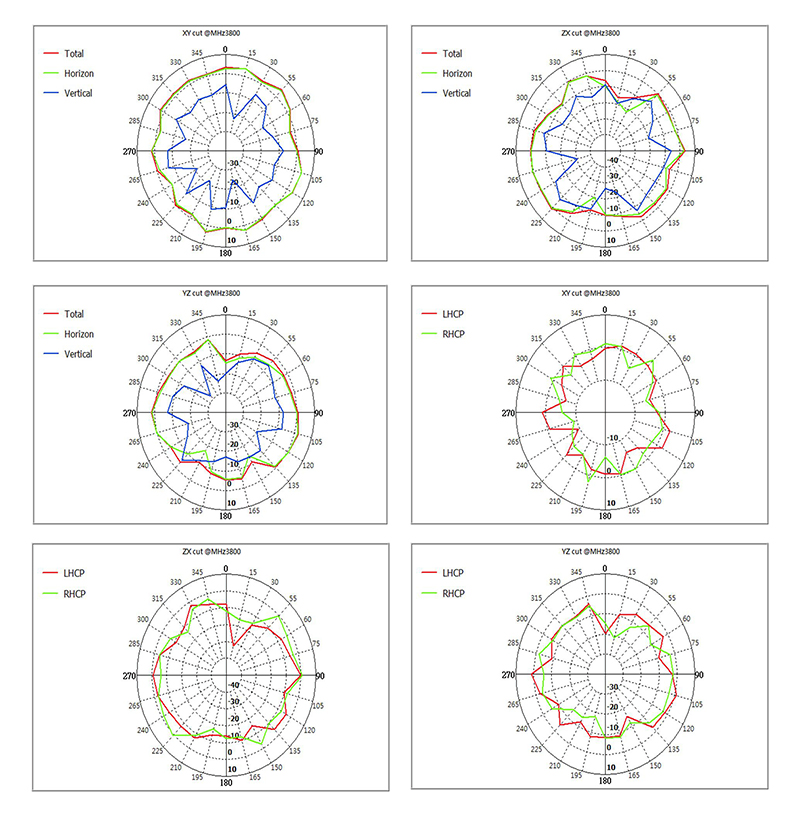

3800 MHz:

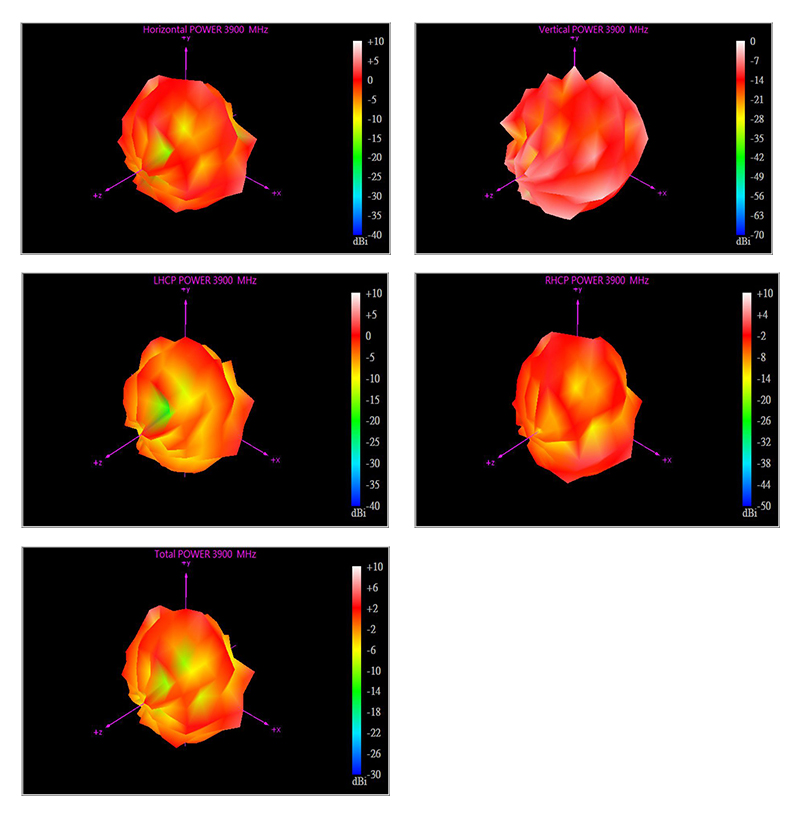

3900 MHz:

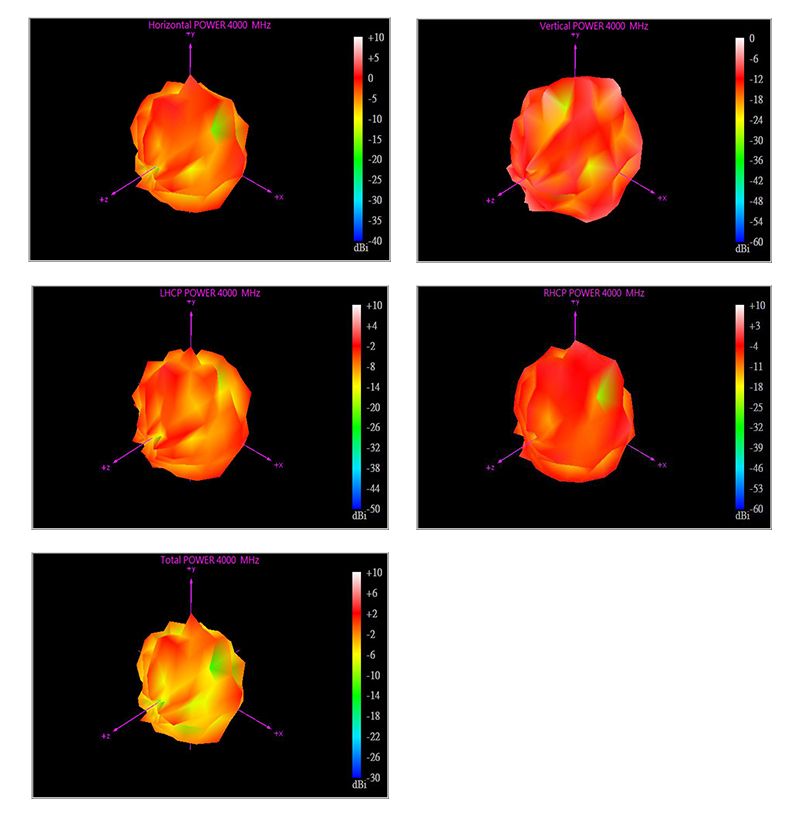

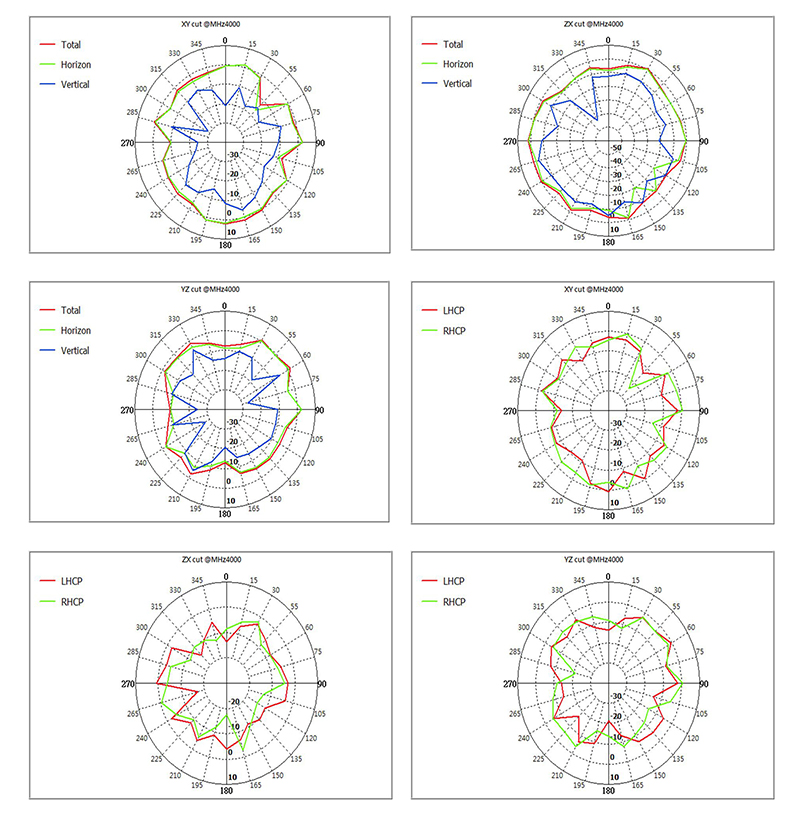

4000 MHz:
