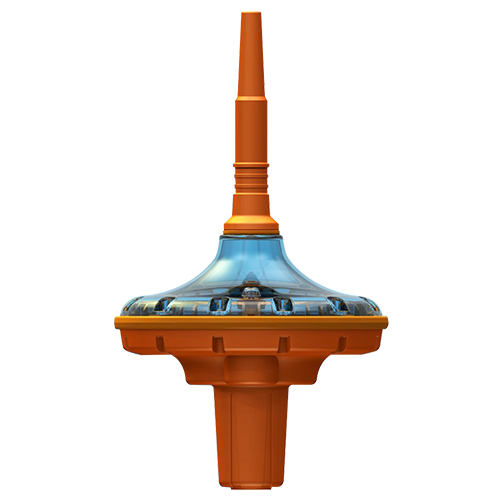

MT-198

MT-198

Inquiry

MT-198
  • Product Description
  • Product Feature
  • Product Specification

High-Sensitivity GPS and efficient AIS communication technology help you manage your buoy by immediate addressing.
Install on the buoy or other marine asset in the sea or lake for collision avoidance.

  • Transmission range: 10~16 NM
  • Easy to install, Easy to track
  • Interval setting: (Every 1~6 minutes)
  • Built-in night warning light
  • Weather-proof and high gain antenna
  • Drop-proof and weather-proof housing
  • Waterproof : IPX8
  • Night lighting and SOS button (optional)
Specification
Model MT-198
Quad Band 161.975 MHz / 162.025 MHz
Baud Rate 9600 b/s+50ppm(GMSK)
Bandwidth 25 kHz
Output Power 2W (can be customized)
Transmission Range 10~16 NM
Antenna External 1m VHF antenna
GNSS Chipset ublox
GPS Receiving Channels 72 channels
Tracking Sensitivity -160 dbm
Position Accuracy 2.5 m CEP
Battery 12.6V 3200 mAh
Battery Type Rechargeable Li-ion battery
Operating Time Over than 1 year
I/O port 5 pin waterproof connector
Size (Main Body) 19.7 cm x 21.2 cm
Weight (Main Body) 850g
Waterproof IPX8
Operating Temperature -10℃~60℃
Storage Temperature -20℃~70℃
LED Indication
Flashing 1~10 sec (red & green) Battery level 10~100%
Fast Flashing 10 sec (red) Low power warning
Flashing /sec (green) GPS signal searching
Flashing 3 sec (red & green) AIS data transmitting
