TH-89i
  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

P/N
TH89i-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 600~960/1710~2700/3300~3800/4000~5000 /5000~6000MHz
Nominal Impedance 50 ohm
Polarization Vertical
V.S.W.R 3.5：1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA 180°(Male)
Antenna Dimensions 135.6mm±3
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C

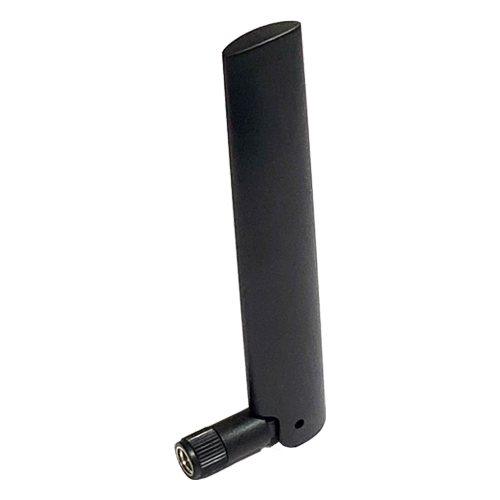

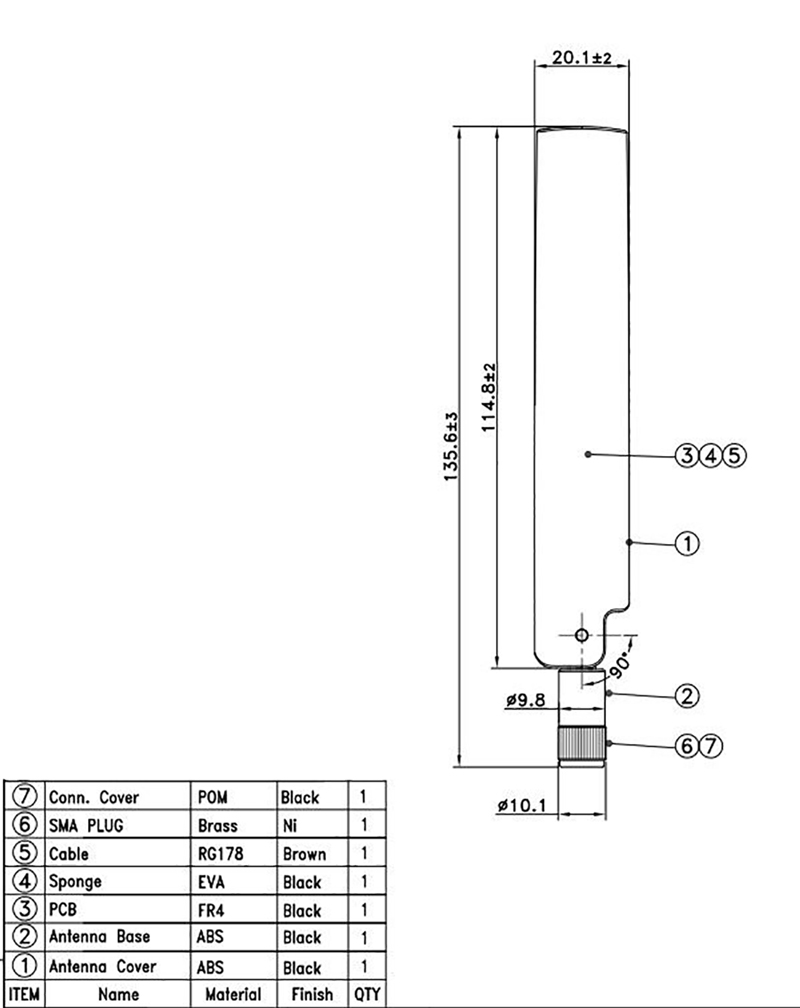

2. APPEARANCE:

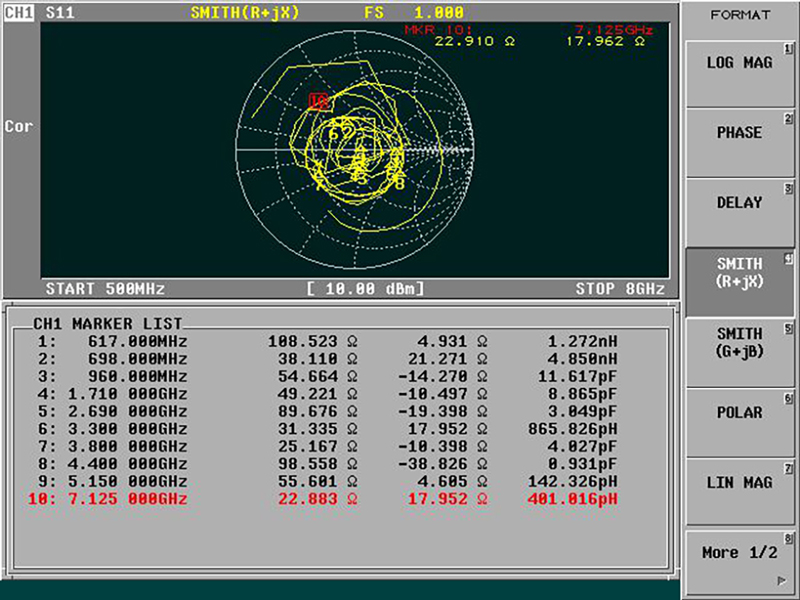

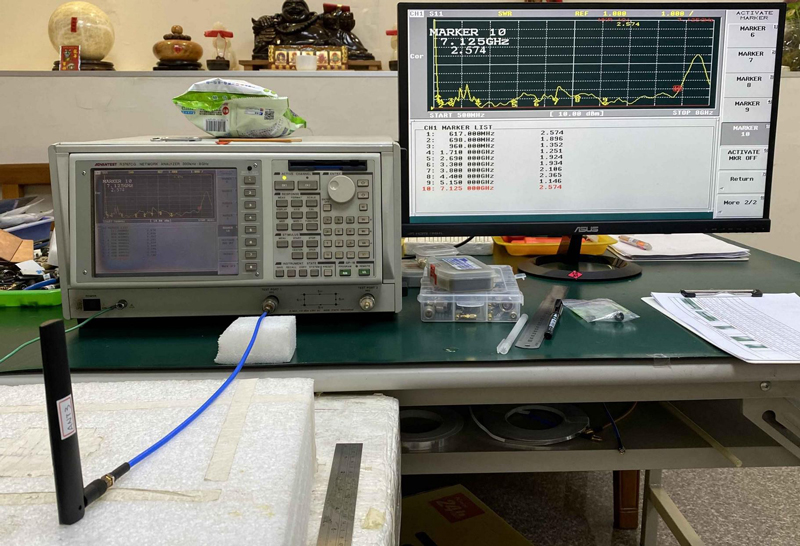

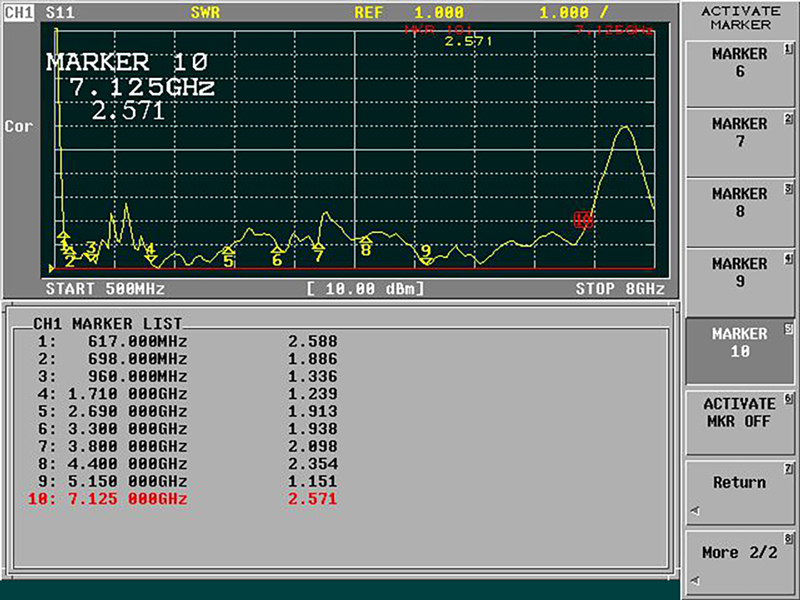

3. Return Loss, V.S.W.R. and Smith Chart

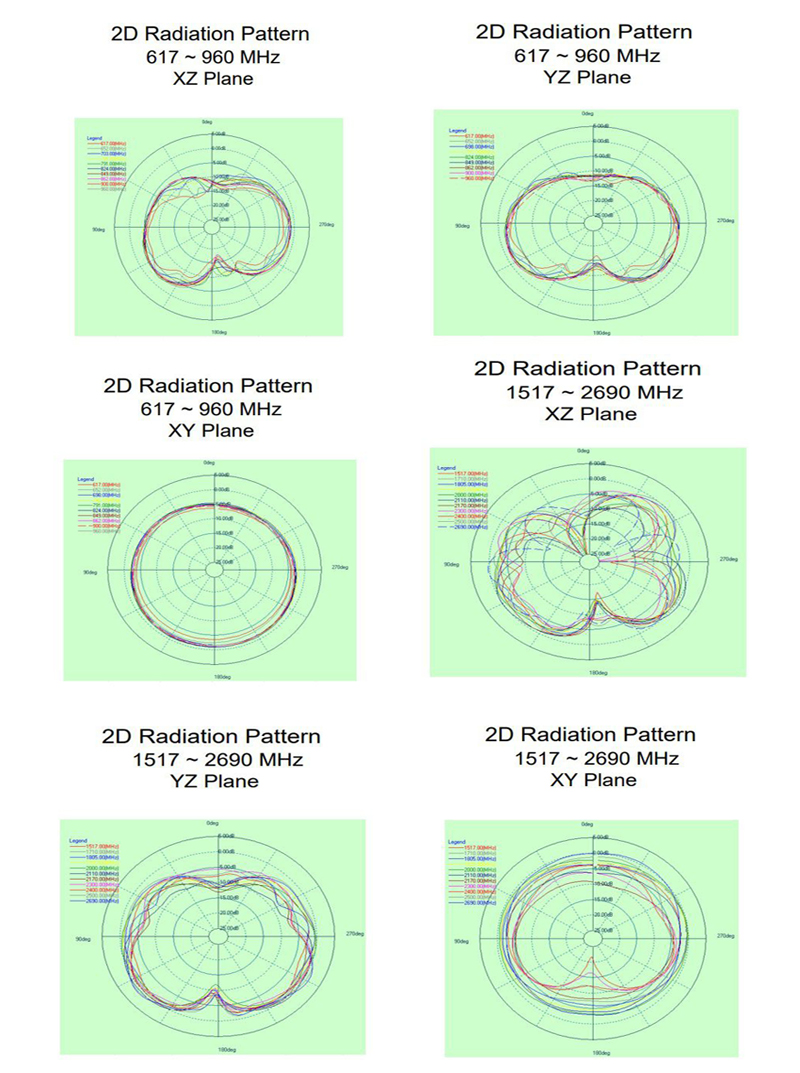

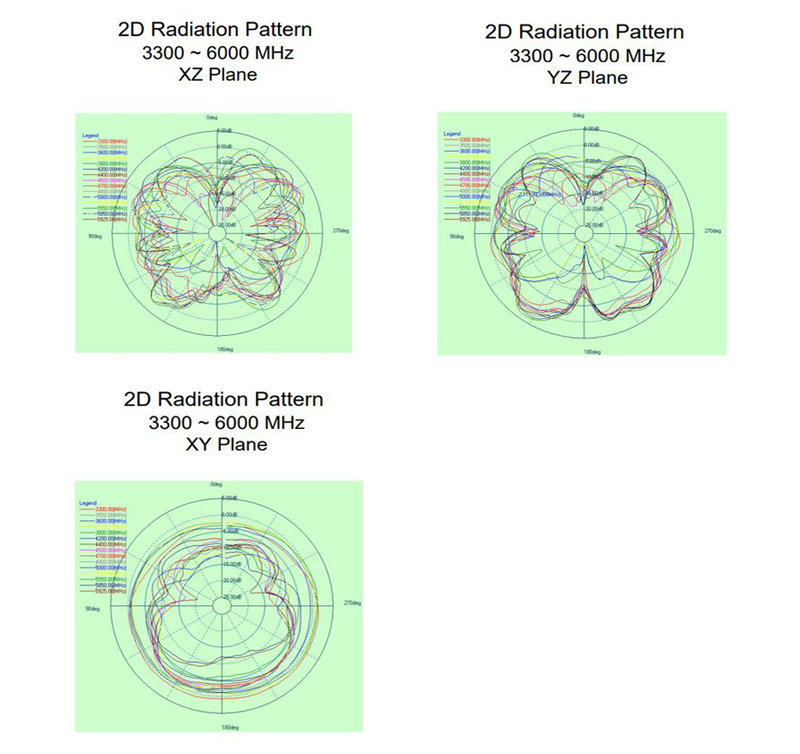

2D Radiation Pattern :
