MA-900
  • Product Description
  • Product Feature
  • Product Specification

Support GPS/GLONASS/BEIDOU/GALILEO and QZSS system

MA-900 supporting ultra precise applications such as automatic driving, high-rise building urban areas with poor signals, high precision requirements from agriculture and construction applications and land and marine applications.


Overview:

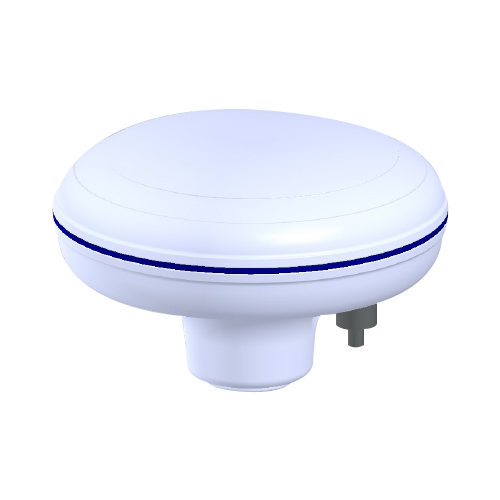

MA-900 integrates high performance GNSS ceramic patch antenna and unique filtering features with innovative proprietary circuit design and advanced double filters, which reduce interference from out-of-band signals. The design of the ceramic antenna element also helps to reduce the multipath effect.
With especially-designed rugged/IP67 water ingress enclosure, the GNSS antenna is suitable for installing in harsh environment. The high-performance active antenna is compatible with most GPS/GNSS receivers with 3~15V DC input power. MA-900 receives all existing public GNSS signals, including GPS, GLONASS, Galileo and BeiDou as well as GPS L2C/L5, QZSS L6, GLONASS G2 and BD2 B2/B3, which provides better positioning accuracy for a variety of GNSS applications such as AVL, vehicle navigation, aviation, and military.

Features:

  • Substantial and environmental-resistance structure.
  • Proprietary antenna design provides the flexibility to reach a range of operational goals.
  • IP67 grade waterproof.
  • Supports GPS, QZSS, GLONASS, Galileo, and BeiDou systems.
  • Multi-Constellation and Signal-Frequency for faster initialization.

Applications:

  • Geospatial Surveys / Single & Multiple frequencies RTK positioning / Vehicle Tracking / Security Surveillance / Precise Guidance / Machine Control / AVL

Active Antenna Performance

Application Bands GPS L1C/A & BD2 B1 & GLONASS G1C
Galileo E1 & QZSS L1C/A
GPS L2C/L3/L5 & GLONASS G2 &BD2 B2/B3
QZSSL6
Frequencies (MHz) 1559MHz~1610MHz
1164MHz~1283MHz
Gain (dB) 40 dB Typ.
Noise (dB) L1:<2.3 dB / L2L5L6:<1.46 dB
Current Consumption (mA) 11 mA Typ @5V DC
Polarization R.H.C.P. (Right Handed Circular Polarization)


Low Noise Amplifier

Supply Voltages (V) 3.3 ~ 15 DC
Output V.S.W.R 2.0 max.
Output Impedance (Ω) 50 ohm
Out of Band Rejection L1: 600MHz~1500MHz 65dB
1670MHz~3000MHz 75dB
L2/L5: 600MHz~1000MHz 65dB
1660MHz~3000MHz 75dB


Environmental Conditions

Operation temperature -40oC to +80℃
Storage temperature -40oC to +85℃
Relative Humidity +40±2 oC, 90~95%R.H
Enclosure Rating IEC 60529 standard: IP67


Physical Condition

Dimension Diameter: 138mm
High: 91mm/45mm
Weight 405 grams
Connector TNC-Jack (Female)
Mounting Pole 5/8 inch tread mount

Electrical Properties:

Antenna S-parameter
L1: 1559 MHz ~ 1610 MHz


L2L5L6: 1164 MHz ~ 1278 MHz


Peak Gain


Noise Figure (dB)

L1 L2L5L6
Frequency(MHz) Noise Figure Frequency(MHz) Noise Figure
1559 2.10 dB 1164 1.46 dB
1575 1.59 dB 1216 1.10 dB
1580 1.63 dB 1227 1.27 dB
1602 1.87 dB 1254 1.16 dB
1610 2.27 dB 1278 1.42 dB

Antenna 3D Circular Polarization Gain Pattern
L1: 1559 MHz ~ 1610 MHz
L2L5L6: 1164 MHz ~ 1278 MHz


Band Rejection (dB)
Low Frequency with S21-Gain(+30dB)


High Frequency with S21-Gain(+30dB)


Mechanical Diagram
