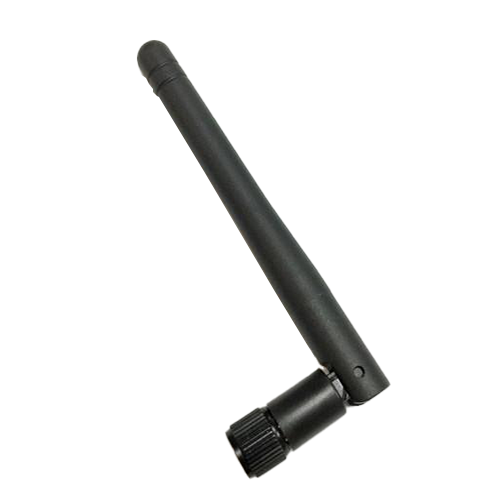

TH2300D-SMA(M) 2.3G Antenna
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

P/N
TH2300D-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 2250~2350MHz

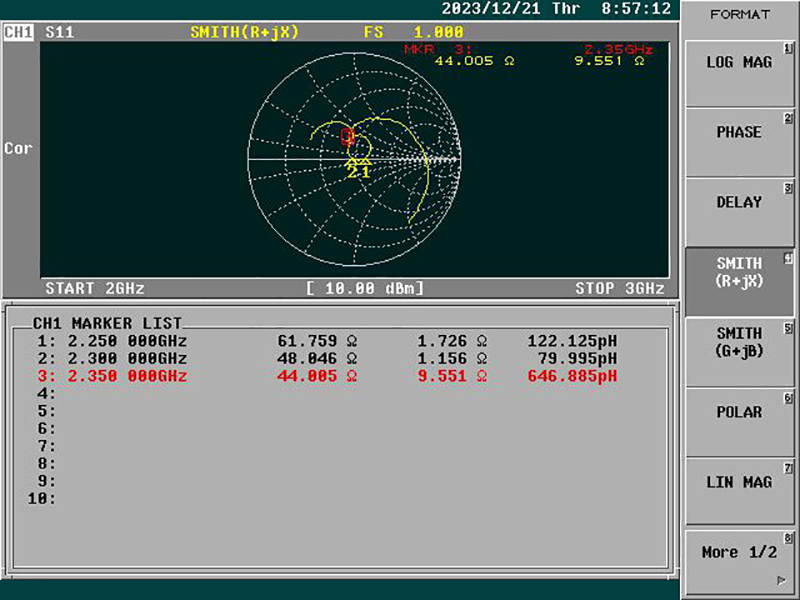

Nominal Impedance 50 ohm
Polarization Vertical

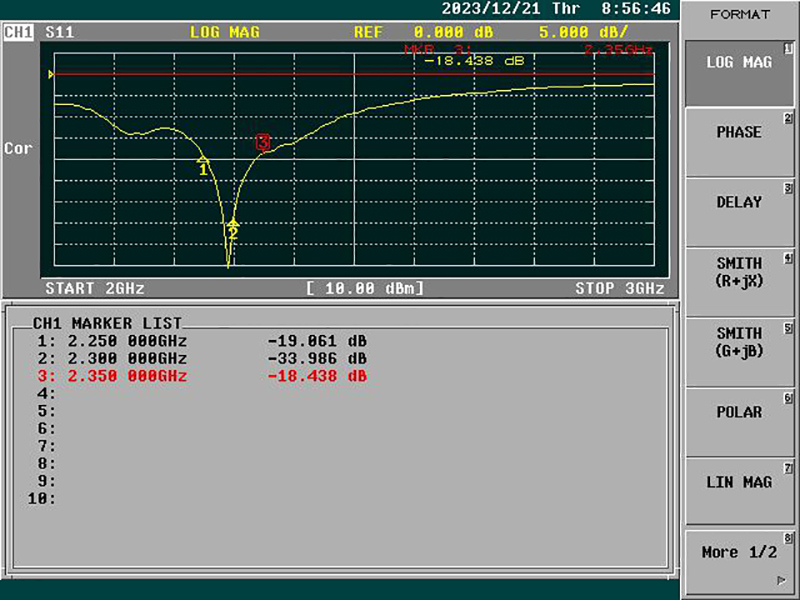

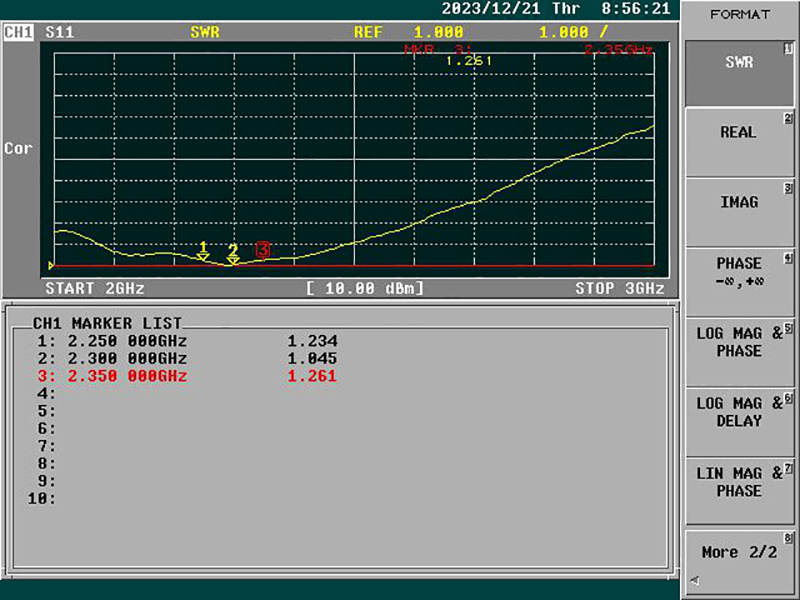

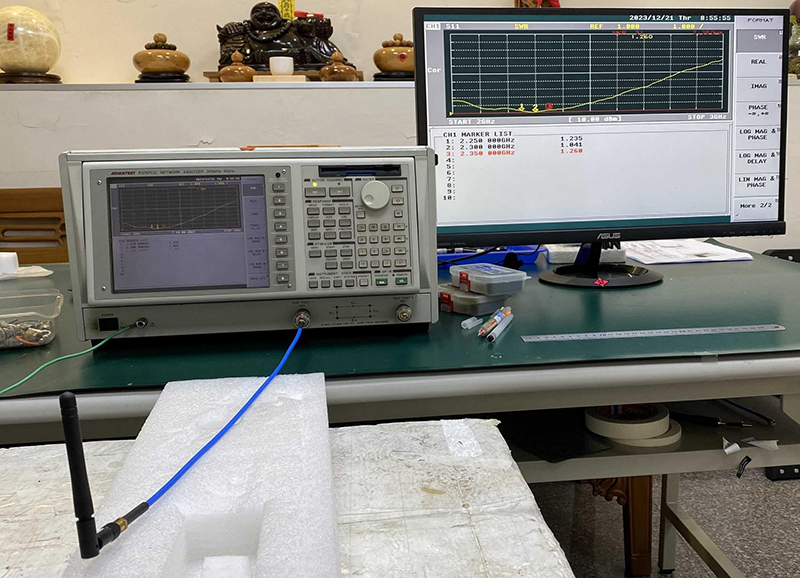

V.S.W.R 2.0:1
Power 1.5W
Peak Gain 2db

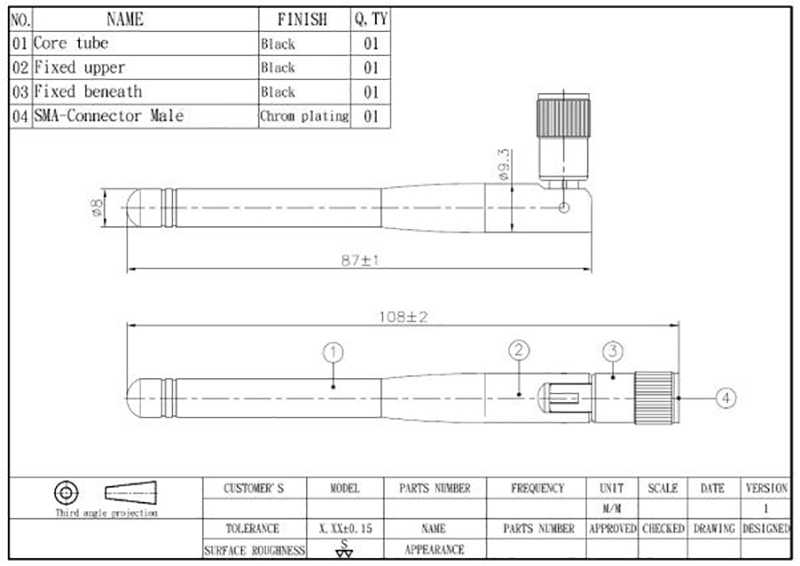

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Antenna Cover TPU
Touch Type Screw Type
Connector Type SMA 180°(Male)
Antenna Dimensions 108mm±2
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C





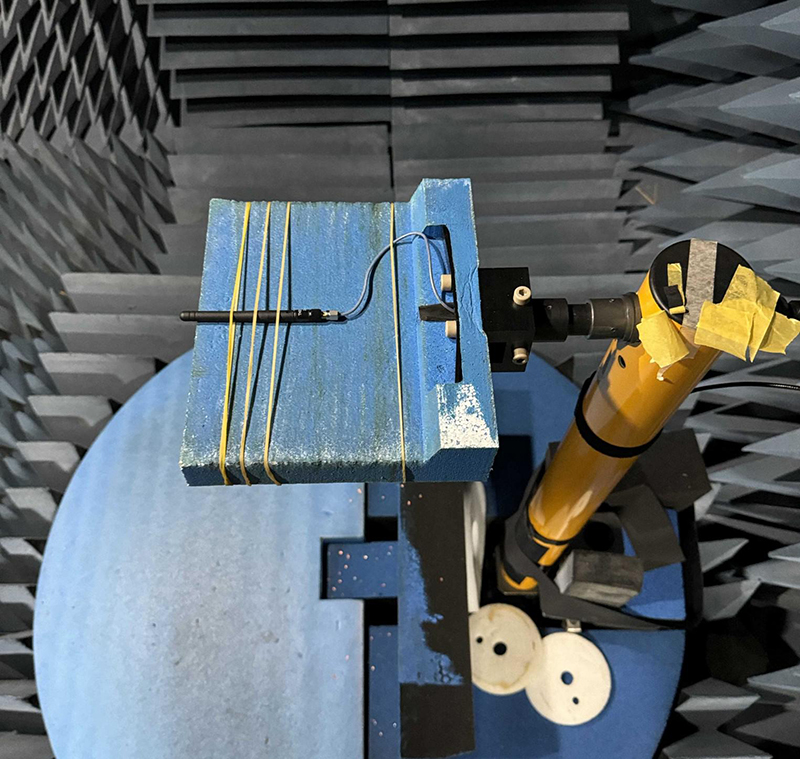

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot.Rad.Pwr.
(dBm)
2100 MHz -6.67 -5.06 -2.78 52.7 2.30 -2.78
2110 MHz -6.19 -4.76 -2.40 57.49 2.39 -2.40
2140 MHz -6.13 -4.88 -2.45 56.88 2.11 -2.45
2170 MHz -6.22 -5.40 -2.78 52.71 1.66 -2.78
2200 MHz -5.34 -4.99 -2.15 60.90 2.54 -2.15
2300 MHz -5.35 -5.46 -2.39 57.62 1.67 -2.39
2325 MHz -4.76 -4.79 -1.77 66.60 2.46 -1.77
2350 MHz -5.79 -5.67 -2.72 53.43 1.47 -2.72
2375 MHz -6.11 -5.85 -2.97 50.51 1.27 -2.97
2400 MHz -6.46 -6.19 -3.31 46.63 0.93 -3.31
2450 MHz -6.35 -6.02 -3.17 48.16 0.68 -3.17
2500 MHz -5.97 -6.11 -3.03 49.81 0.98 -3.03

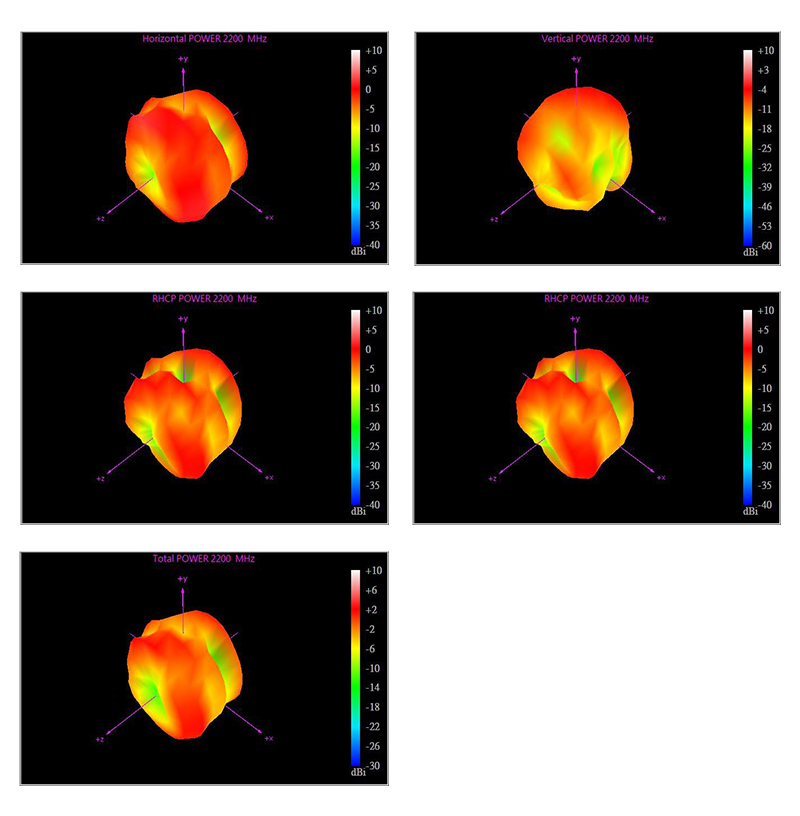

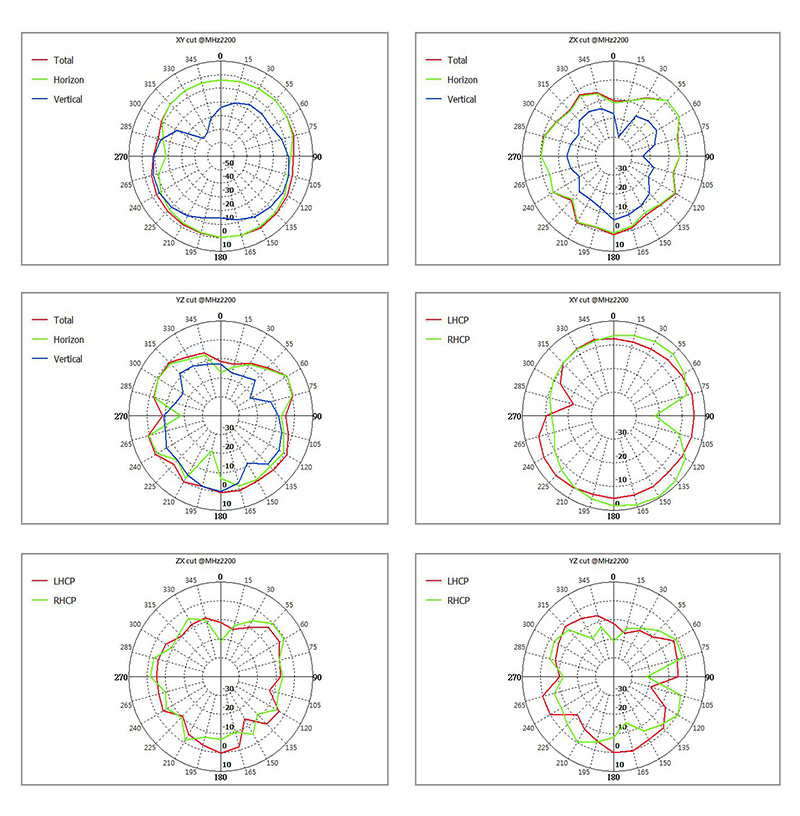

2200Mhz:

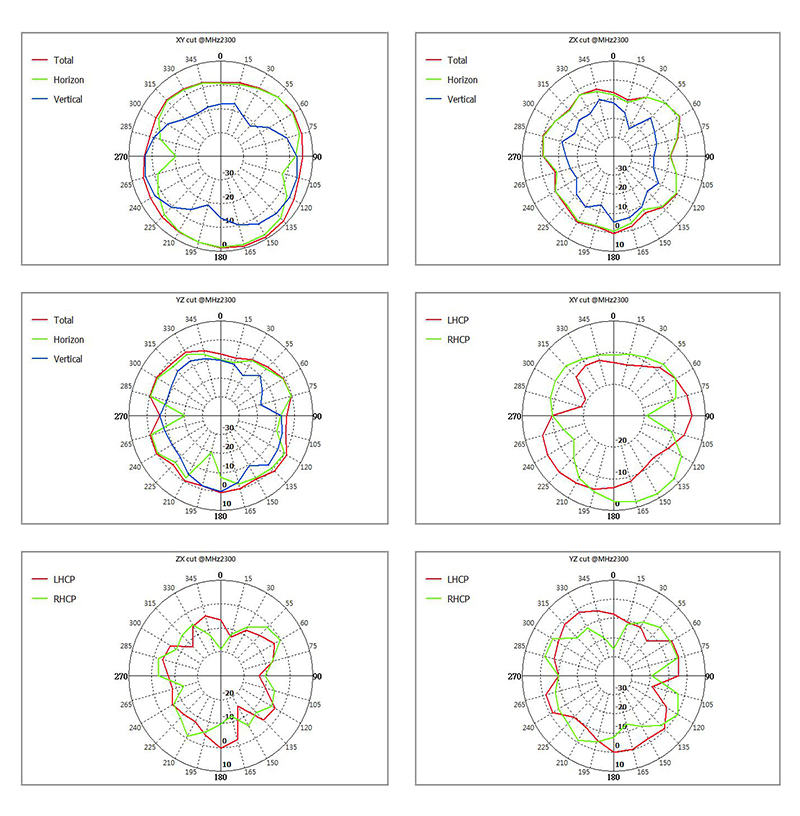

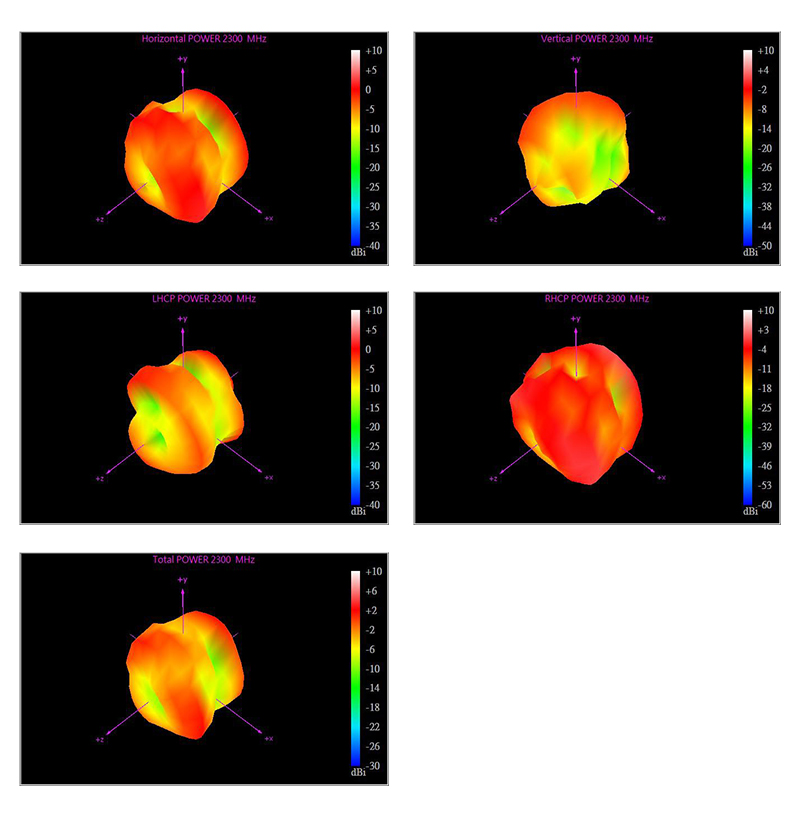

2300Mhz:

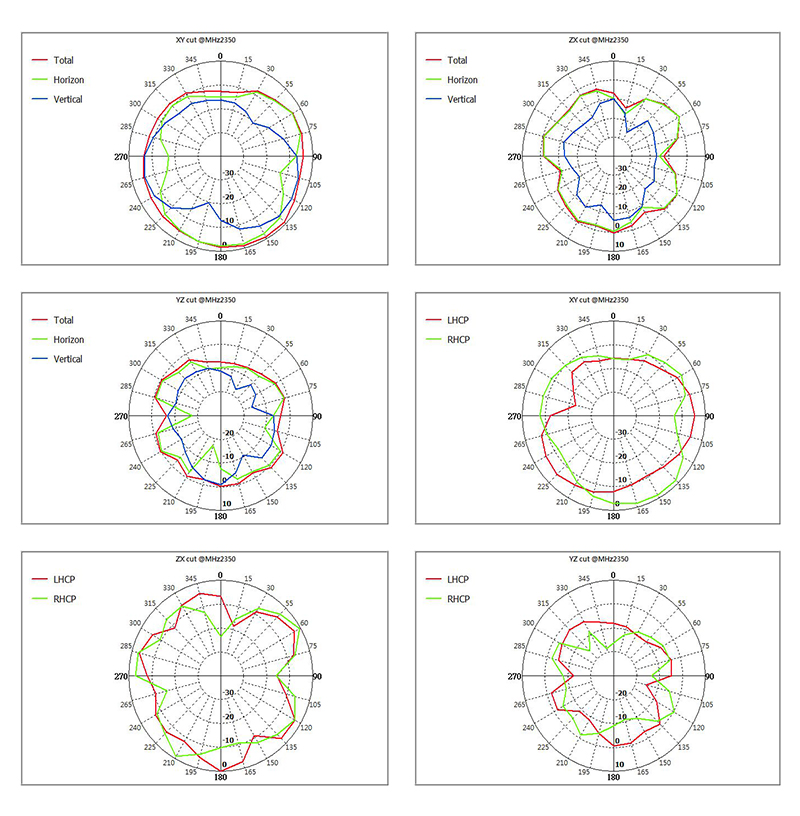

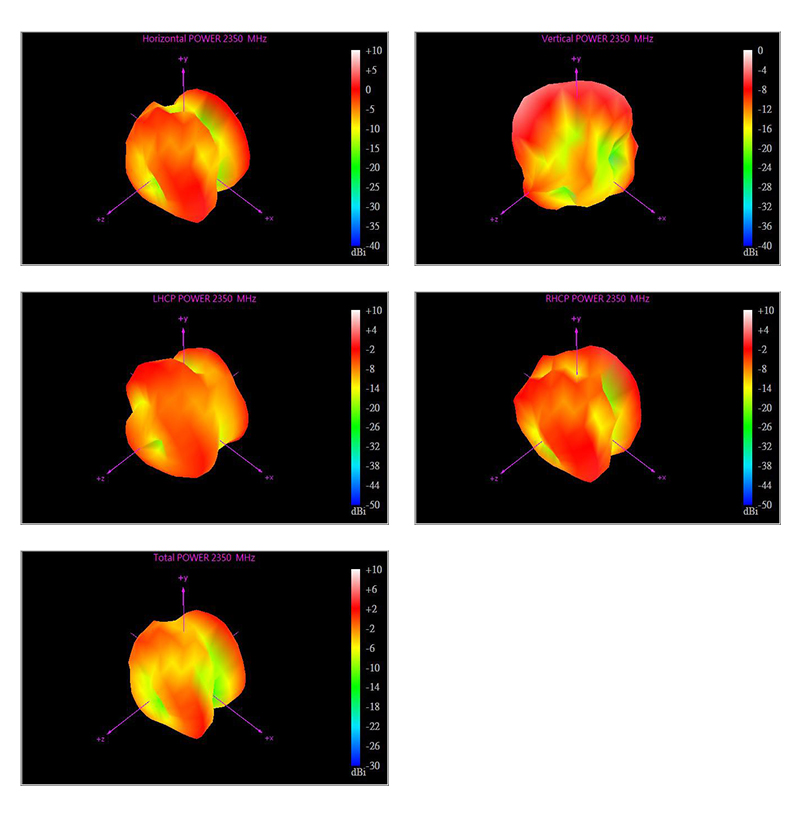

2350Mhz:
